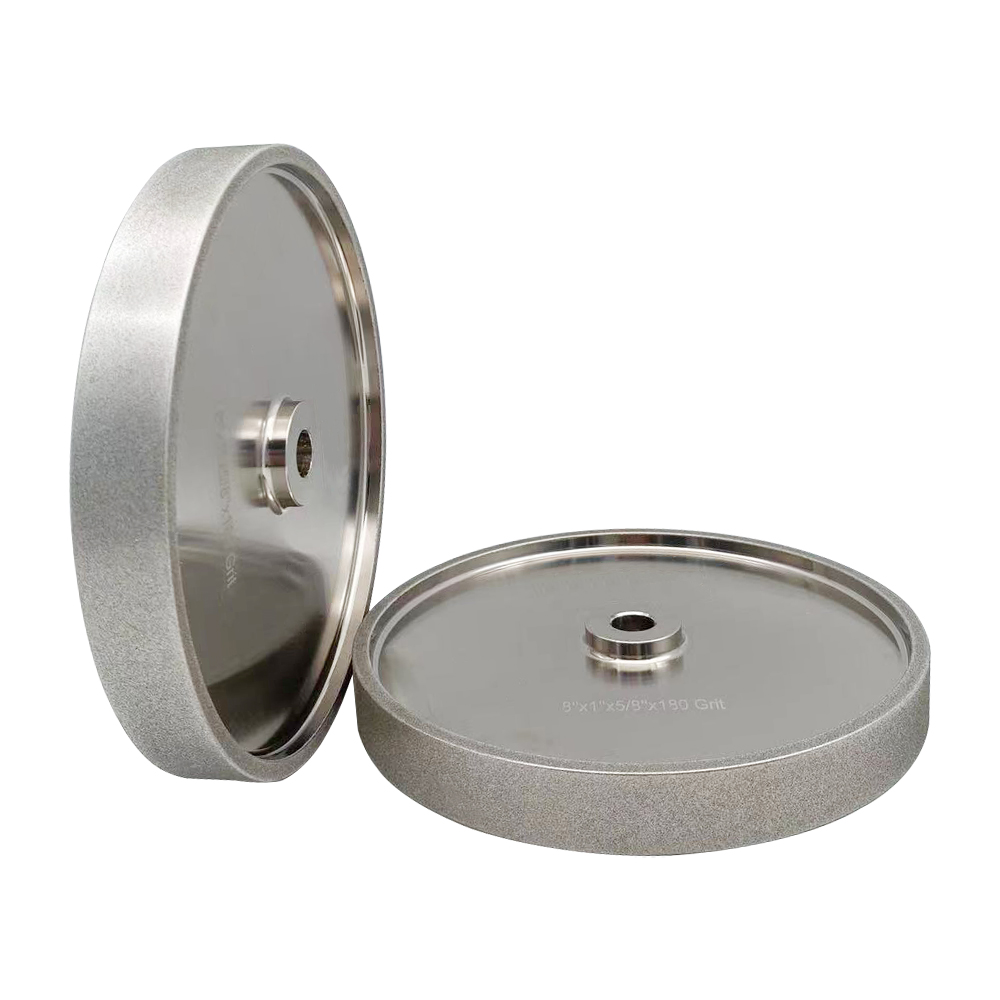

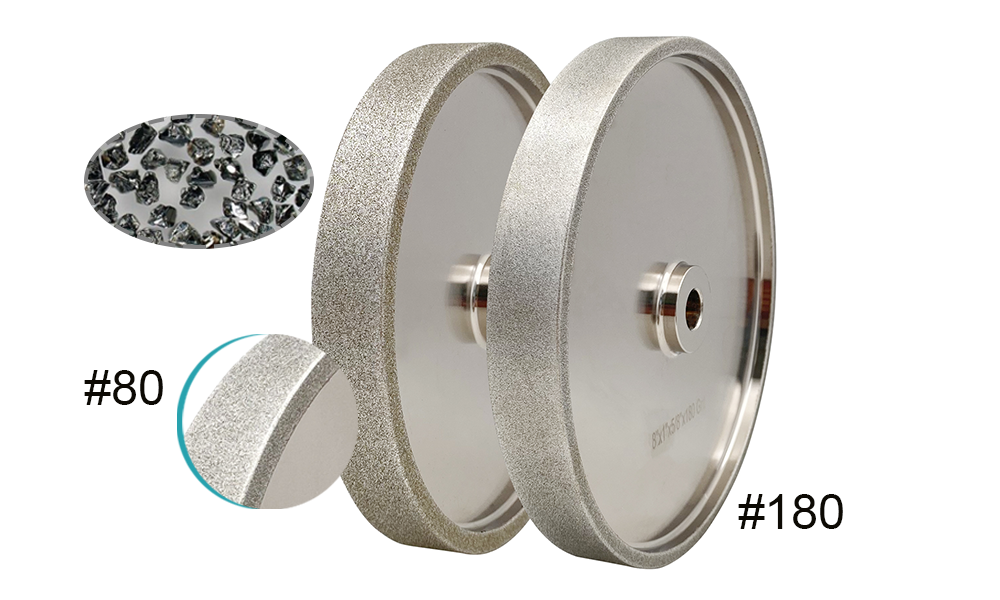

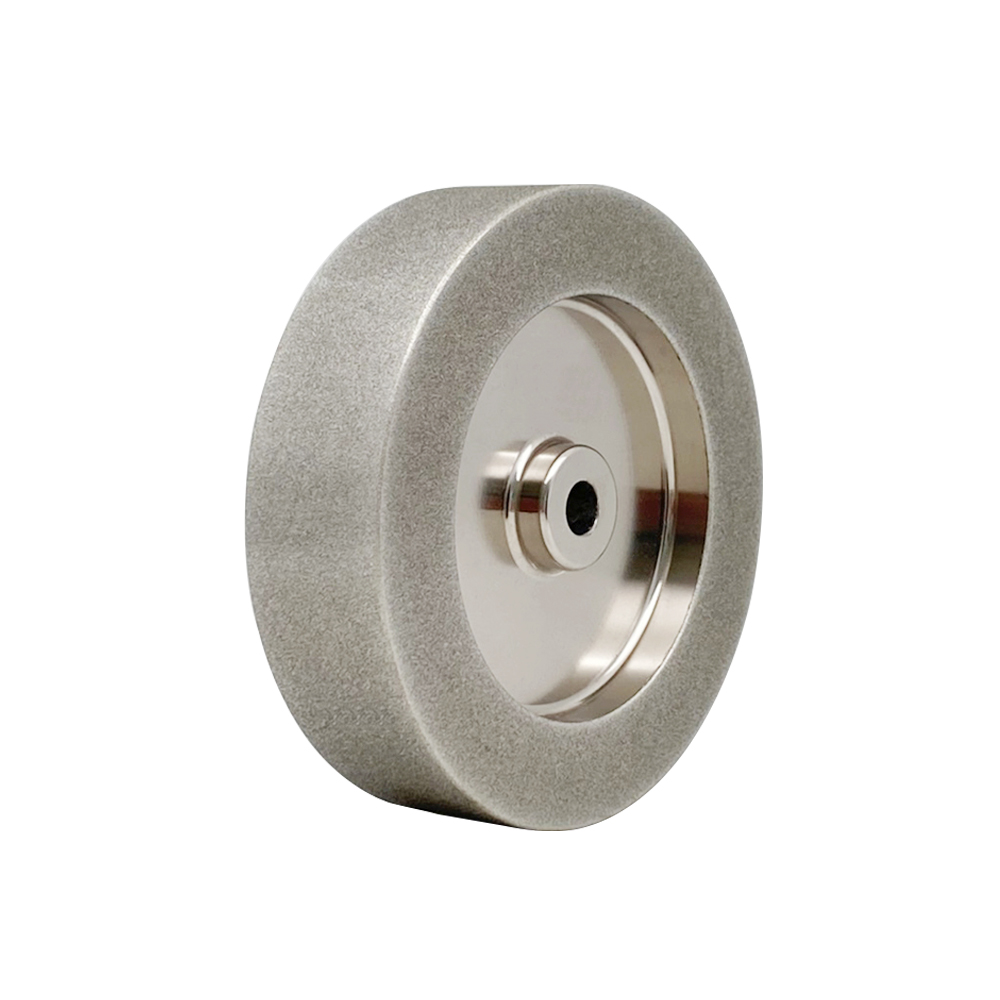

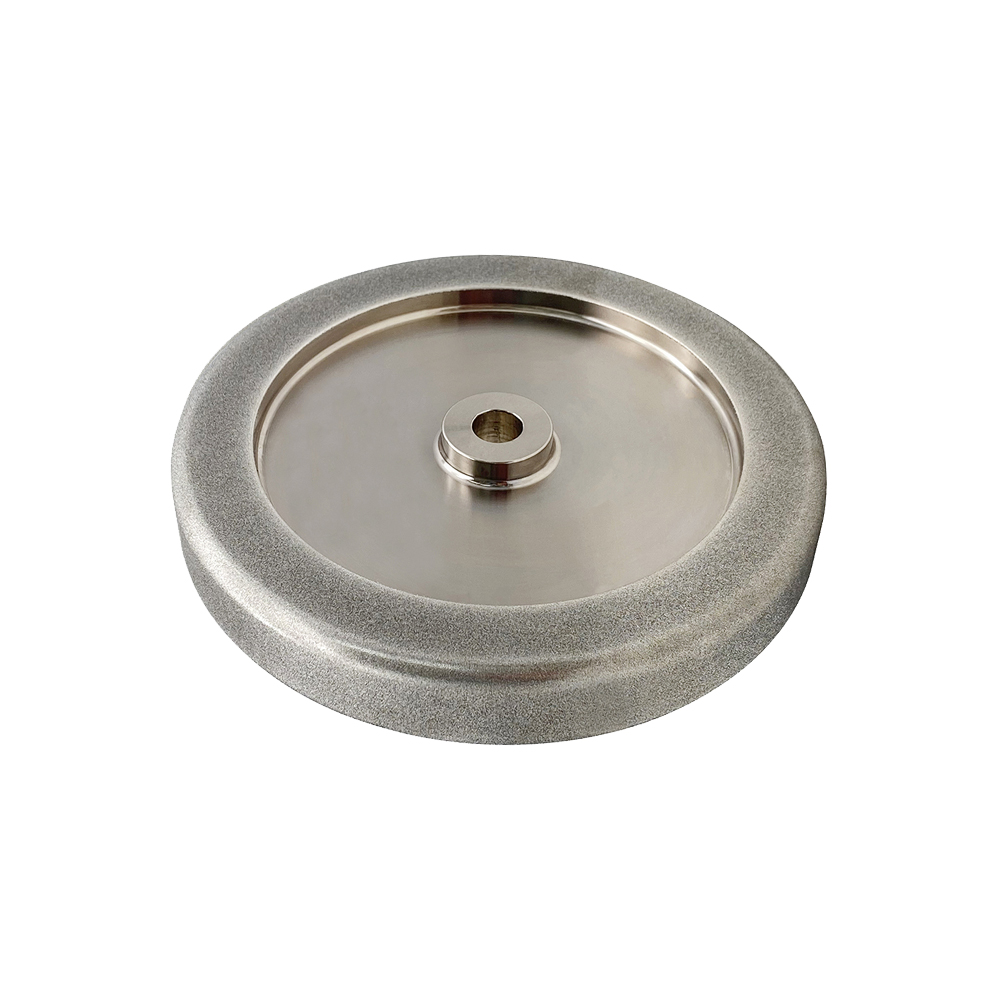

1A1 Electroplated CBN Wheel is made of Steel /Aluminum/Plastic Body and CBN Abrasives.
MOQ: 5 pieces
REZZ develops high quailty diamond CBN tools with multi diamond cbn layers. Multi-layer diamond CBN tools are with longer life time. This CBN grinding wheel will not be deformed no matter how long it takes, so you don't need to constantly adjust your jig, and you don't need to dress the wheel.
REZZ will provide you with system solutions for industry such as Sharpening wood gouge chisels.
Features:
* Three side CBN plating
* Fast and cool cutting action without coolant
* No need dressing or turning
* Steel body has the best rigidity, used for dry grinding.
* Aluminum body has a low melting point, so need to be grinding with water. The weigh lighter than steel body.

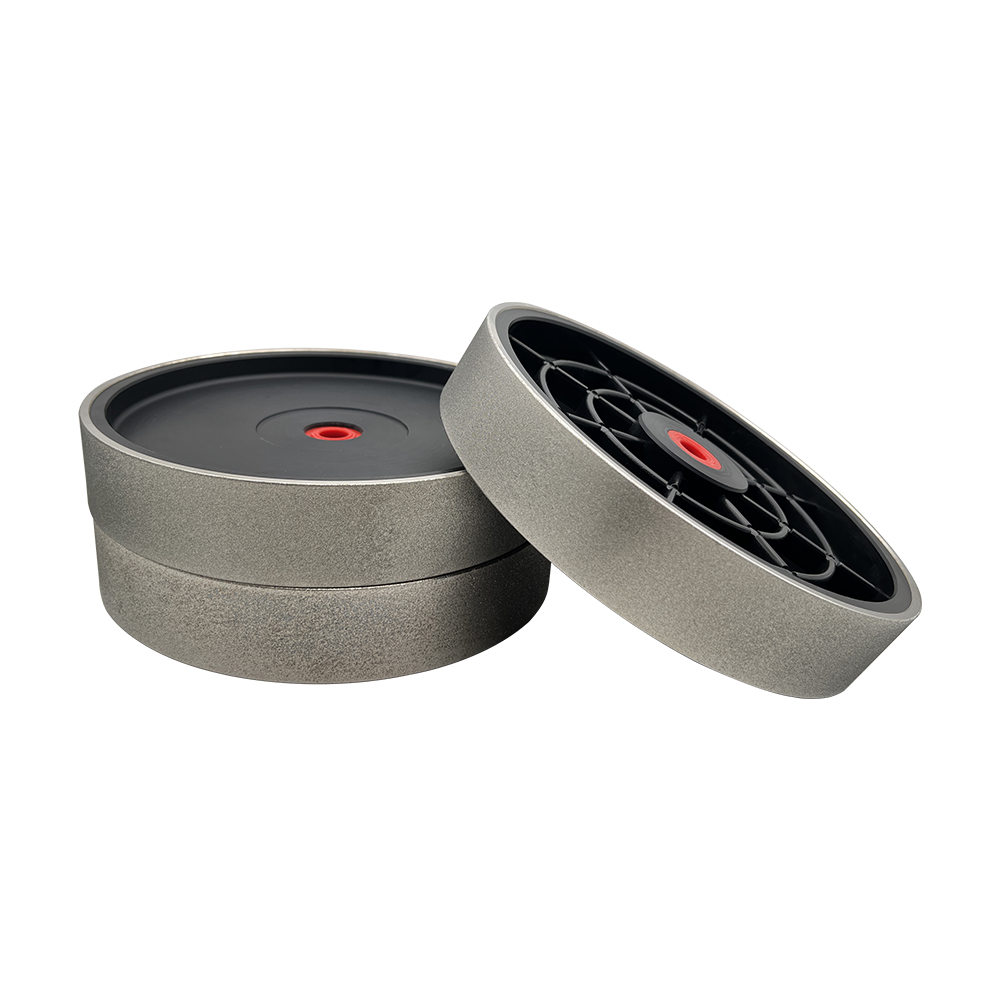

* Plastic body has the advantages of fast rotation speed light weight and low price.
|
|
Parameters:
| Abrasive | CBN |
| Bonding | Electroplated |
| Model | 1A1 |
| Grit | #60-1200 |
| Popular Sizes | 6"-12" |
| MOQ | 5 piece |
|

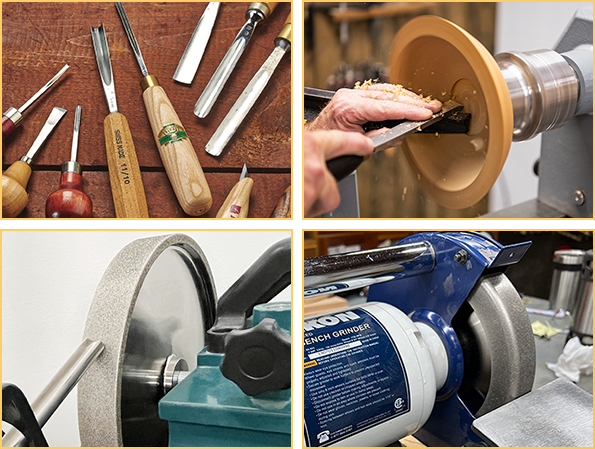

Application:
Grinding Workpiece: Wood bowl gouge chisels, woodturner tools, ceramic, gemstone, glass, etc.
Applicable Tool Material:Carbon Steel, M2 Steel, M42 Steel, HSS steel, etc.
Grinding Method: Sharpening, carving
Applicable Grinding Machine: Rikon, Rockler, Jet, WEN.

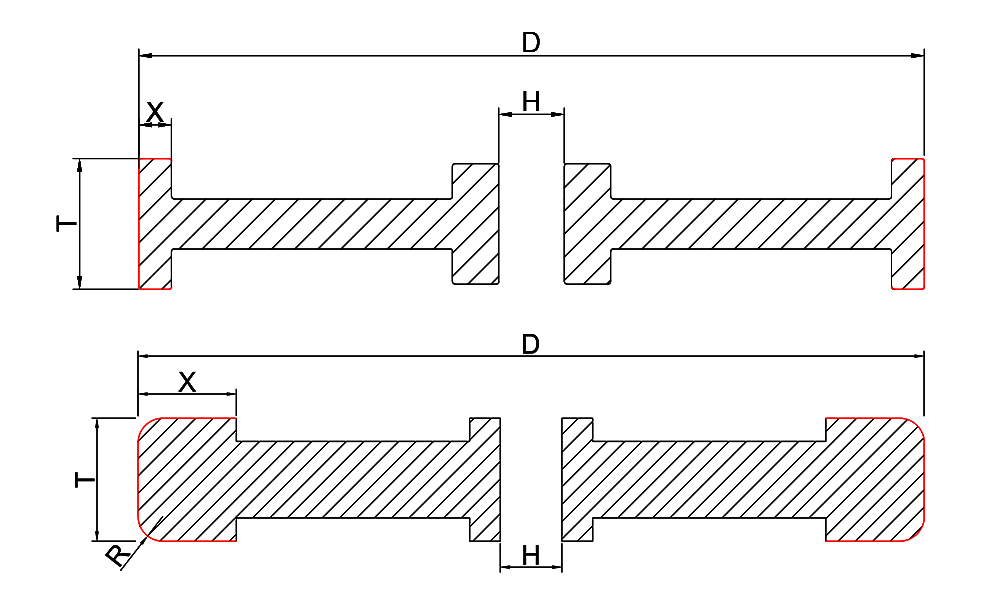

Specifications:
| Dimensions | |||
| Popular Sizes DxTxH |
6"x1"x1/2" 150x25.4x12.7mm Grit: 60 to 1200 |
6"x1.5"x1/2" 150x38.1x12.7mm Grit: 60 to 1200 |
6"x2"x1/2" 150x50x12.7mm Grit: 60 to 1200 |
| 8"x1"x5/8"(1") 200x25.4x15.875mm Grit: 60 to 1200 |
8"x1.5"x1.25" 200x40x31.75mm Grit: 60 to 1200 |
8"x2"x1.25" 200x50x31.75mm Grit: 60 to 1200 |
|
| 10"x1"x12mm 250x25.4x12mm Grit: 60 to 1200 |
10"x1.5"x12mm 250x40x12mm Grit: 60 to 1200 |
10"x2"x12mm 250x50x12mm Grit: 60 to 1200 |
|
| Typical Grinders | Bench Grinder | Drill Sharpener | Saw Sharpener |
| Tormek | Darex | Vollmer | |
| Valmarco | GSC | Loroch | |
