Resin diamond grinding wheel for clearance and tooth seperate

Resin diamond grinding wheel for clearance and tooth seperate

The processes of clearance, tooth separate and relief angle grinding are the key steps in tool form. REZZ resin bond diamond grinding wheel which makes excellent edge retention and wear resistance of the clearance and tooth.

For grinding clearance and tooth separate of cutting tools

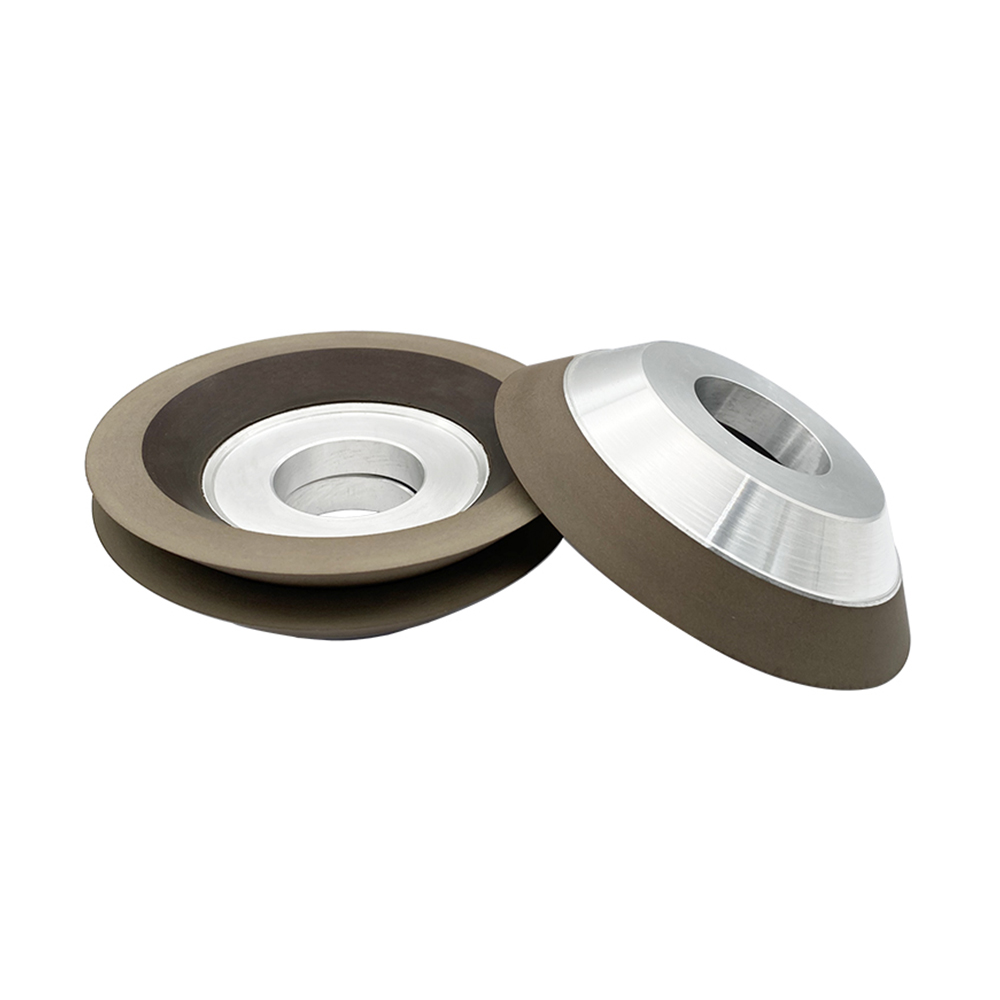

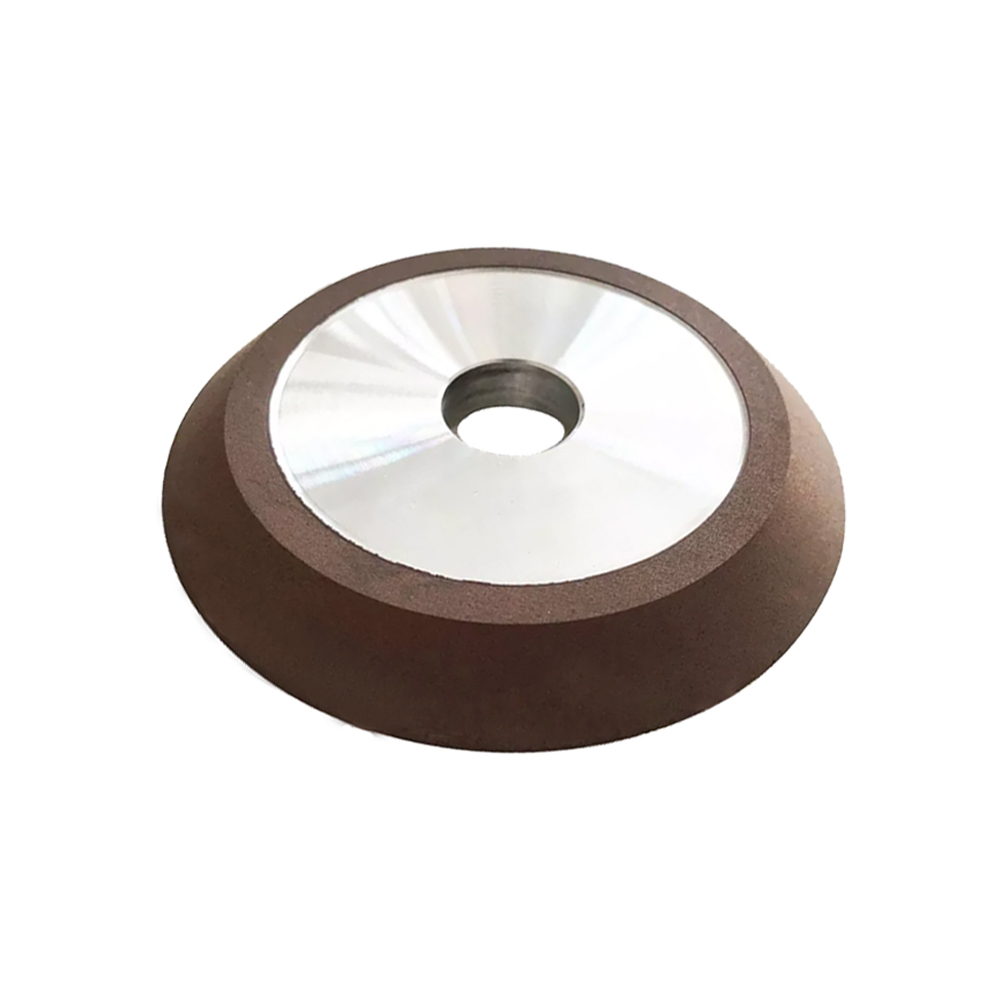

Type of resin diamond grinding wheel:11V9,12V9,1V1

MOQ: 5pcs

Download

Description

resin diamond grinding wheel for clearance and tooth seperate-1

+86-13938485694

[email protected]

Description

REZZ provides a line of solution and services for ultra performance tools grinding on CNC machines.Our services include fluting, gashing clear edge and relief angle, OD grinding of the tungsten carbide, HSS, milling cutter, reamer and drill, etc.

Features:

* High Profile Retention Ability
* Sharp & Fast Grinding
* Excellent Surface Finishes
* Less Dressing
* High Productivity

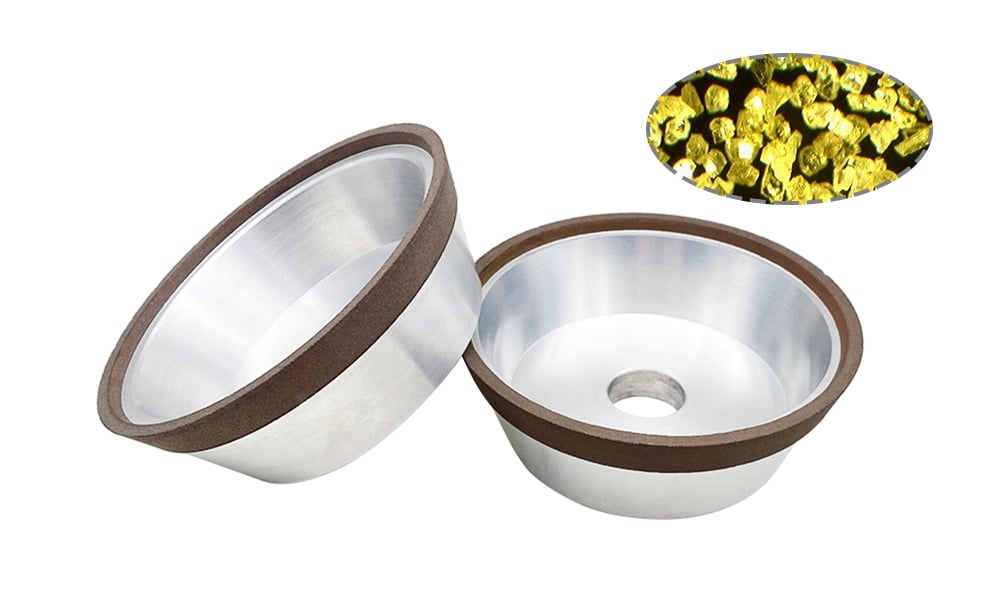

resin drill bits grinding-1.jpg

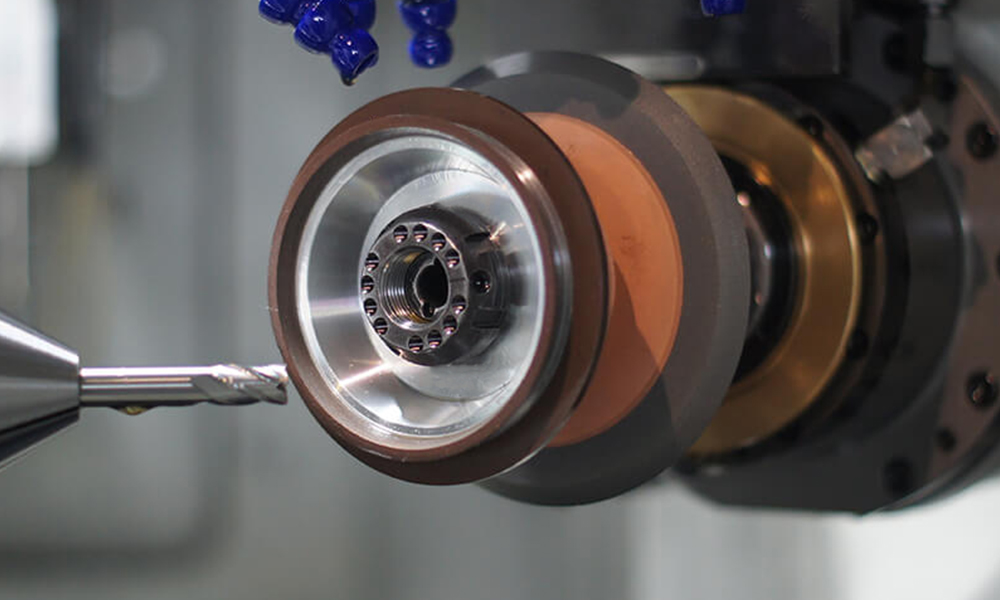

metalworking tool grinding.jpg

Grinding Methods:

1	Cylindrical Grinding
2	Sharpening
3	Fluting
4	Gashing clear edge
5	Relief angle
6	OD Grinding

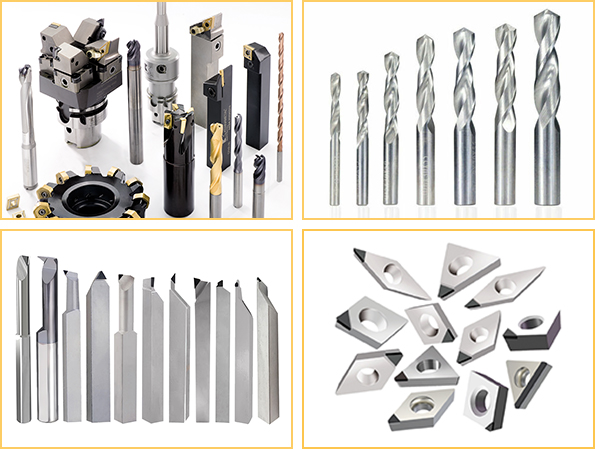

Application:

Grinding Workpiece: Solid carbide, Metal cutting tools,

HSS Round tools & inserts, like endmills, drills, milling tools and other.

Applicable Tool Material: tungsten carbide HSS steel materials, etc.

Applicable Grinding Machine: CNC Cutting Tool Grinding Machines, CNC full automatic 5 Axis.

Applicable Machine Brand: WALTER, ANCA, ROLLOMATIC, MAKINO.

Specifications:

Dimensions
Type	D(mm)	H(mm)	X(mm)	U(mm)	Grit	Concentration
11V9, 12V9, 1V1	100	25.4	5	6	230 270 350 400 600 800 1000	50 75 100 125 150
	125	31.75	8	8
	150	35	10	10
	175	20	3	5
Any nonstandard size and grits can customized.(tell me size or drawing is enough)
