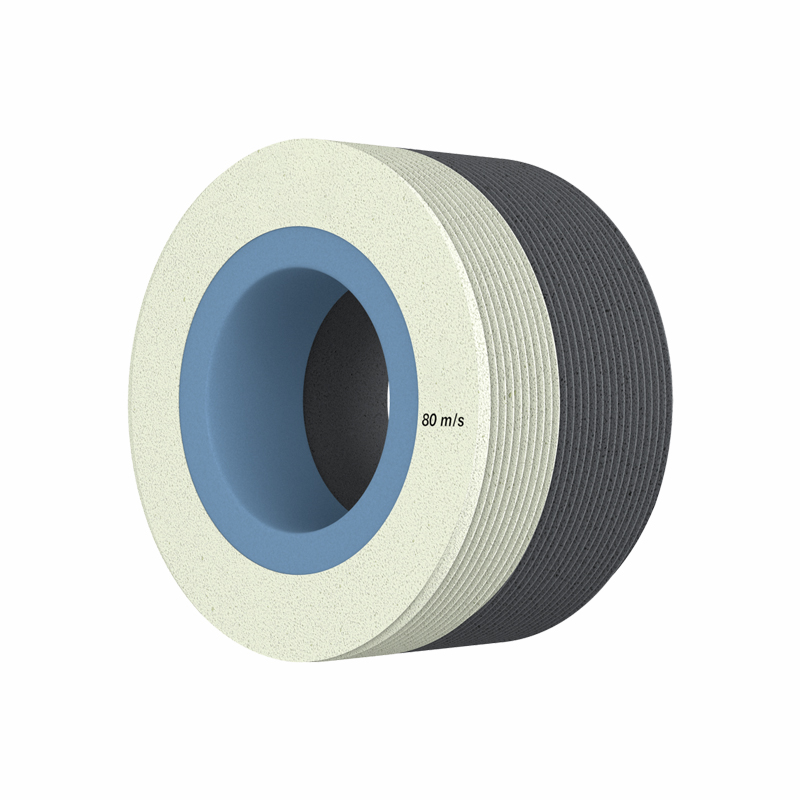

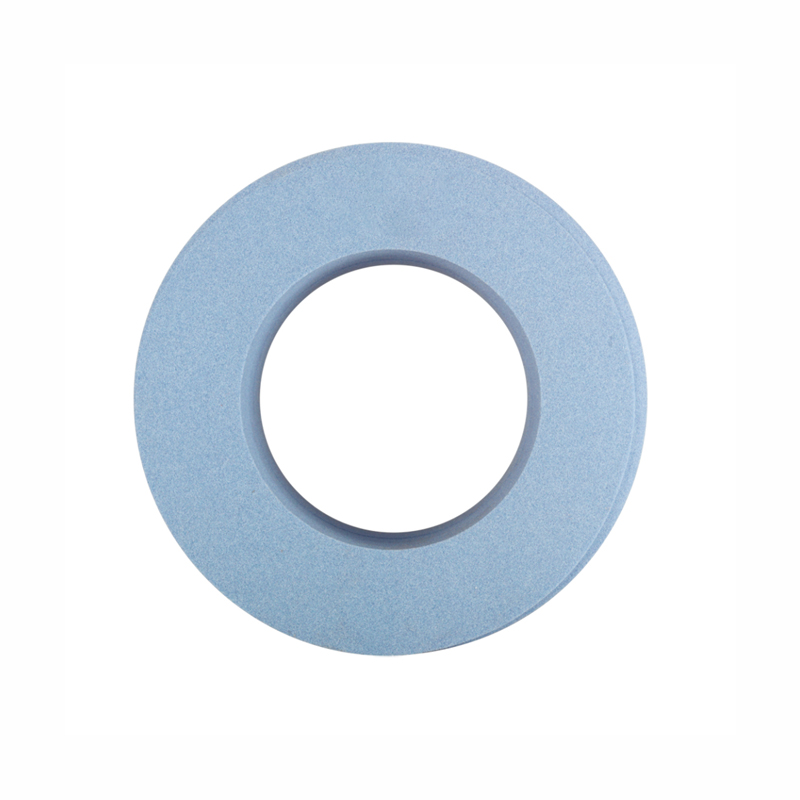

REZZ worm grinding wheel adopts high-performance ceramic abrasives, which can effectively reduce the grinding force and improve the surface quality. The special pore structure design makes the uniformity and consistency of the grinding wheel better. The excellent shape retention makes the dressing interval of the grinding wheel longer, which can be very effectively help customers improve production efficiency.
MOQ: 5pcs
Our worm gear SG grinding wheel adopts high-performance ceramic abrasives, which can effectively reduce the grinding force and improve the surface quality.

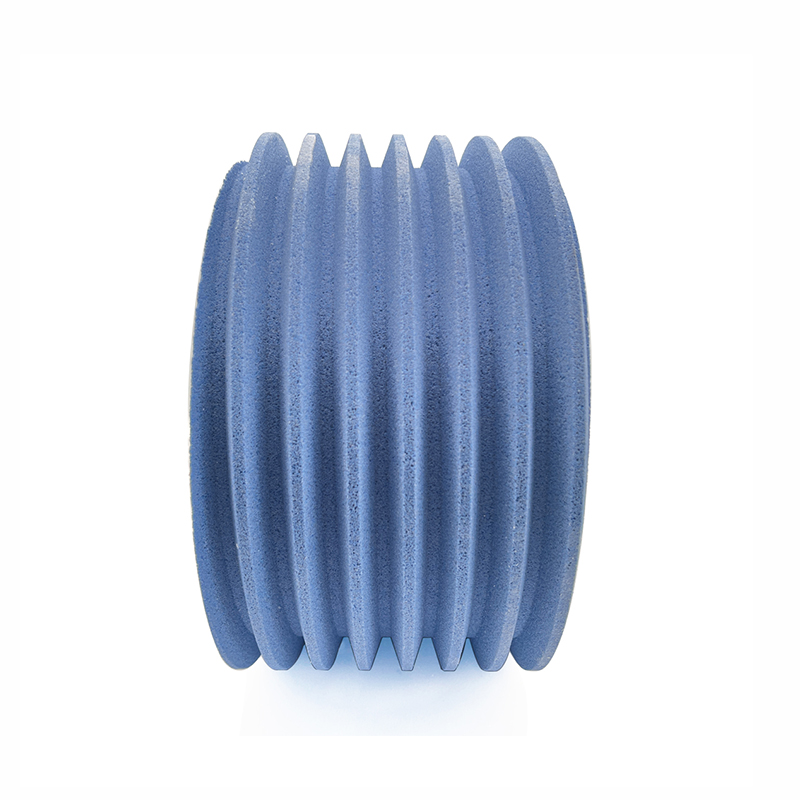

The continuous worm grinding wheel is mainly used for grinding the worm gear and worm gear surface of the reducer, so it is widely used for grinding of small and medium size gear, especially the grinding of mass gear.
REZZ will provide you with system solutions for industries such as Worm Gear Grinding.
Features:
* High speed and continuous grinding
* Achieve the optimal gear profile
* High profile accuracy
* High tooth shape retention ability
* High production efficiency
|
|
Grinding Methods:
| Abrasive | SG |
| Bonding | Vitrified |
| Grit | Customized |
| Popular Sizes | 220-400mm |
| MOQ | 5 Pieces |
|

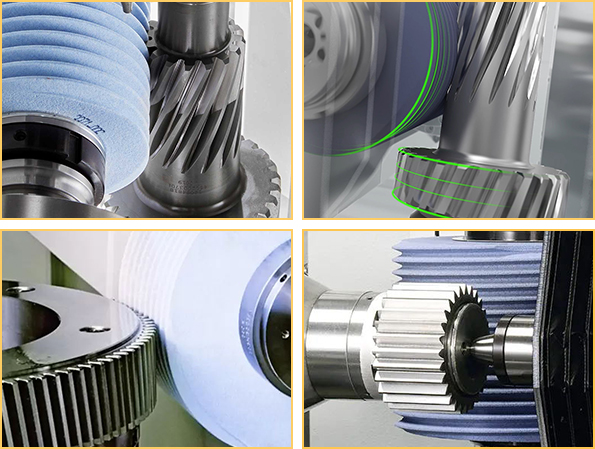

Application:
Grinding Workpiece: worm gear
Applicable Tool Material: Carbon steel materials, alloy steel materials, etc.
Grinding Method: Continuous generative grinding, Profile grinding
Applicable Grinding Machine: Kapp Niles, Liebherr, Klingelberg, Gleason, Samputensili, Mitsubishi and others.
Specifications:
| Dimensions | ||||
| D(mm) | T(mm) | H(mm) | Material | Linear speed(m/s) |
| 220-400 | 100-230 | 90-203 | 3SG80/100JV | 63, 75, 80 |
| Any nonstandard size and grits can customized.(tell me size or drawing is enough) | ||||
