REZZ produces the most suitable Tissue Paper Grinding Wheel, which is also called the Log Saw Blade Grinding Wheel, CBN Resin Grinding Wheel, in Tissue-Paper converting industry.

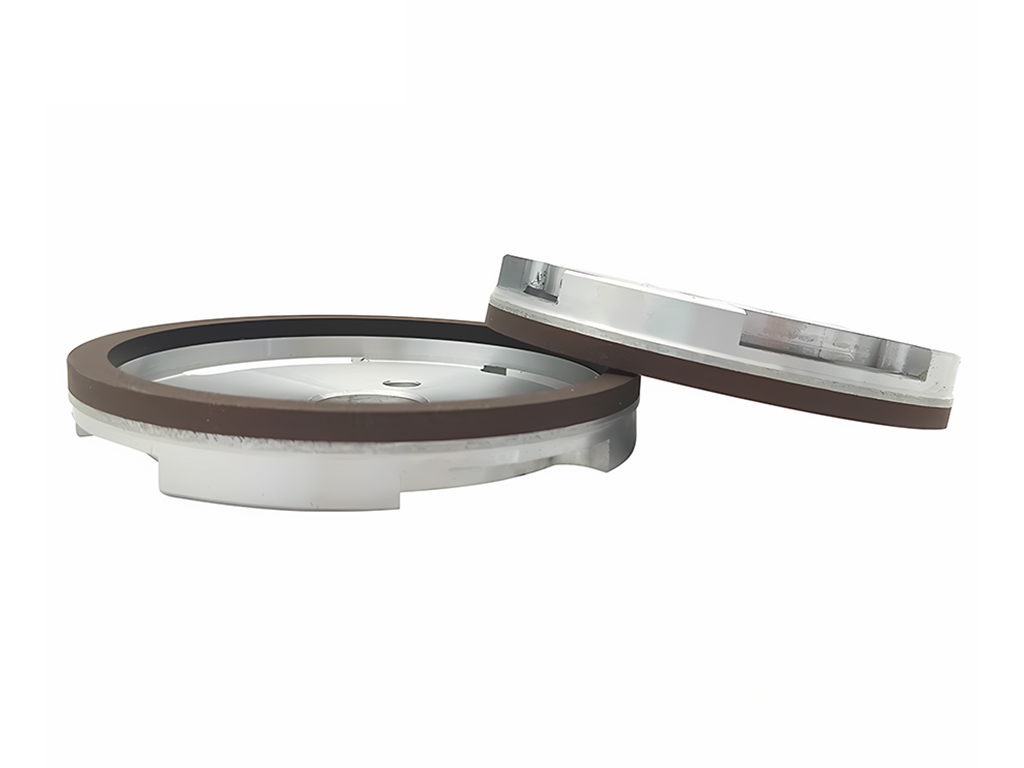

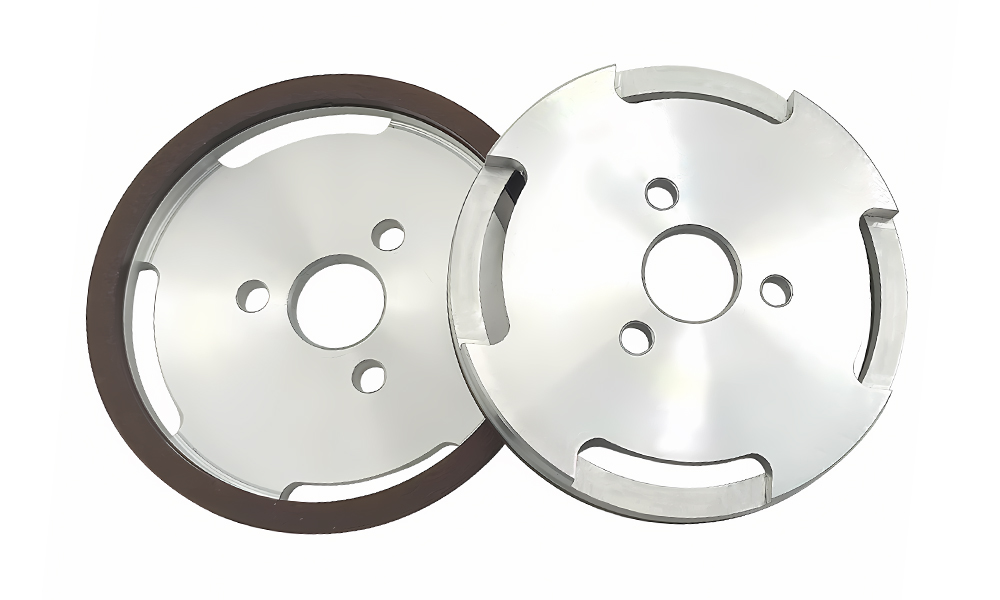

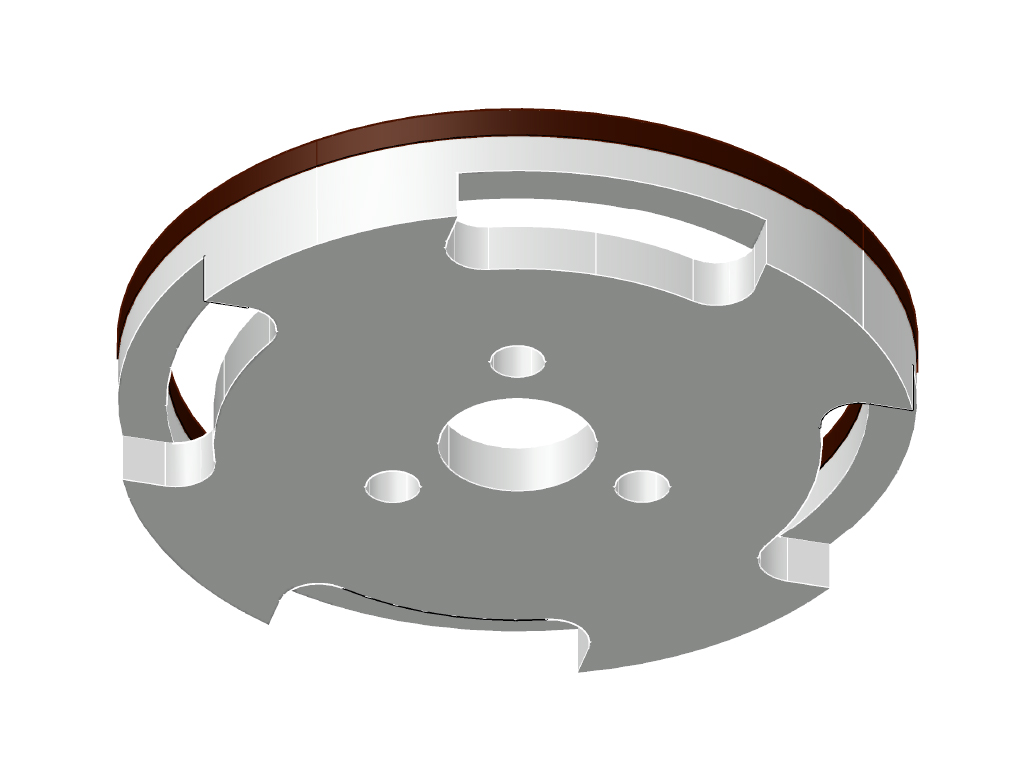

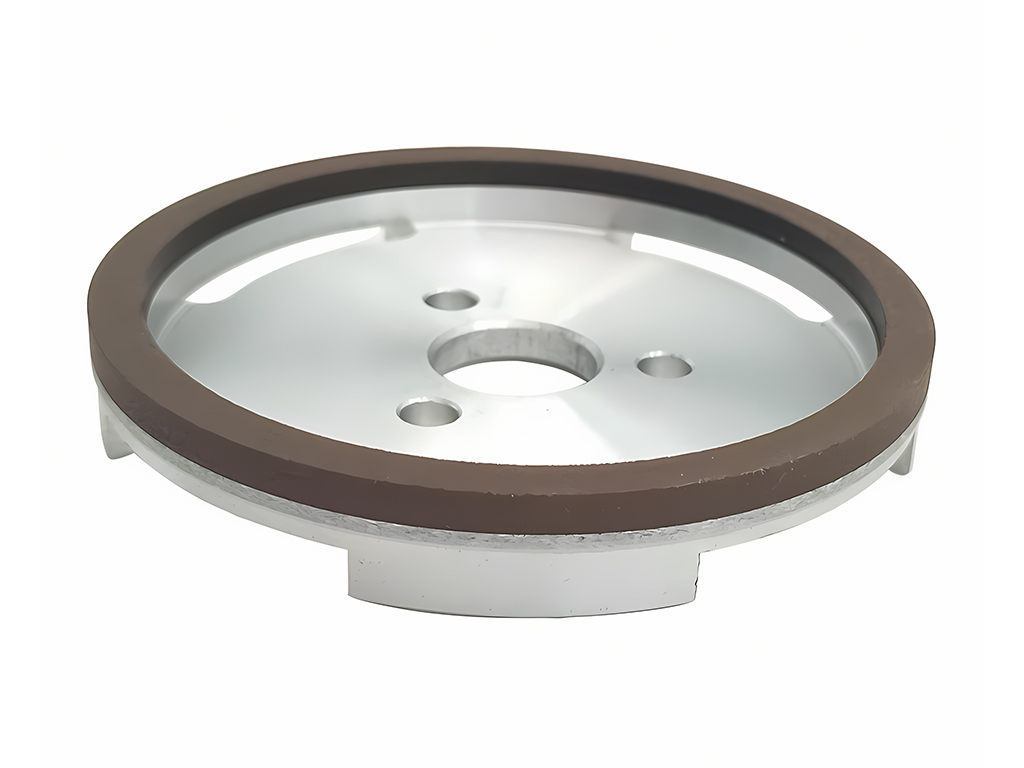

Custom Cup Shaped Wheel 6A2H Resin CBN Grinding Wheel for Tissue Paper Knife
Features:
* Using high-quality imported materials, durable
* Has excellent anti-aging, anti-oxidation,abrasion resistance and anti-fouling capabilities.
* Advanced numerical control technology, precision machining, extremely small dimensional deviation, and high precision.
* Advanced grinder,professional thermal processing. Product performance is even higher.
* Strict quality inspection to ensure that every product delivered to the customer is a good product.
|
|
|
|
Parameters:
| Abrasive | CBN |
| Bonding | Resin |
| Model | 6A2H |
| Grit | 80# -240# |
| Popular Sizes | 100mm |
| MOQ | 5 piece |
|
|
Application:

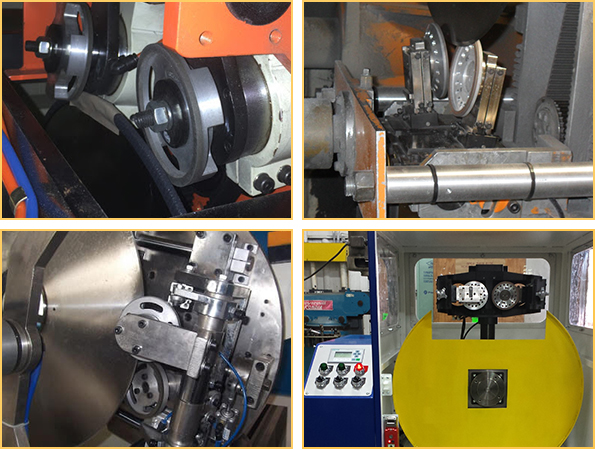

Grinding Workpiece: Used in Tissue and Towel processing including the log saw blades, peforation knives.
Applicable Tool Material: Tungsten steel, Stainless steel, HSS steel, Die Steel, hardened steel, alloy steel, stone material.
Product Material: 9CrSi, Crl2MoV, cemented carbide W6Mo5Cr4V2, W18Cr4V, etc.
Applicable Grinding Machine: Fabio Perini, PCM, FUTURA, CMG(GAMBINI), KAWANO,ZOKI, Bretting, BaoSuo, DeChangyu, MTC.
Specifications:

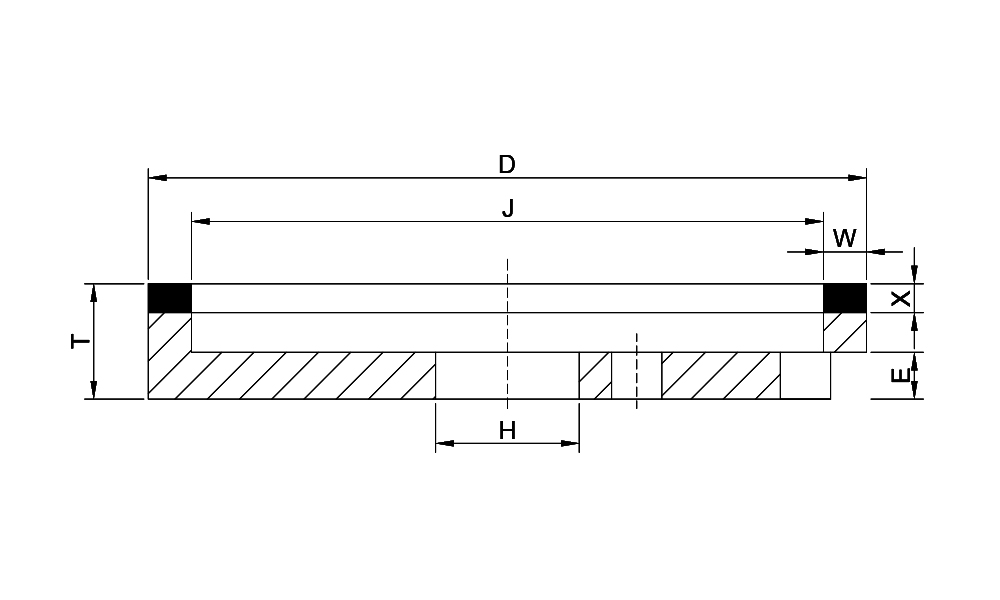

| Dimensions | |||||
| Outer Diameter | Total Thickness | Inner Bore | Layer Width | Layer Thickness | Grit |
| 100mm | 10, 16, 20mm | 20-30mm | 6mm | 4mm | 80# -240# |
| Any nonstandard size and grits size can customised (tell us size or drawing is enought) | |||||
