REZZ offer a premium line of Plated Diamond and Resin Bond Diamond wheels for sharpening Stump Cutter Teeth. These wheels are far superior to the discount "Green" (silicon carbide) wheels available elsewhere. Compared with Green Wheels, our Diamond Wheels offer significant benefits.
MOQ: 5pcs

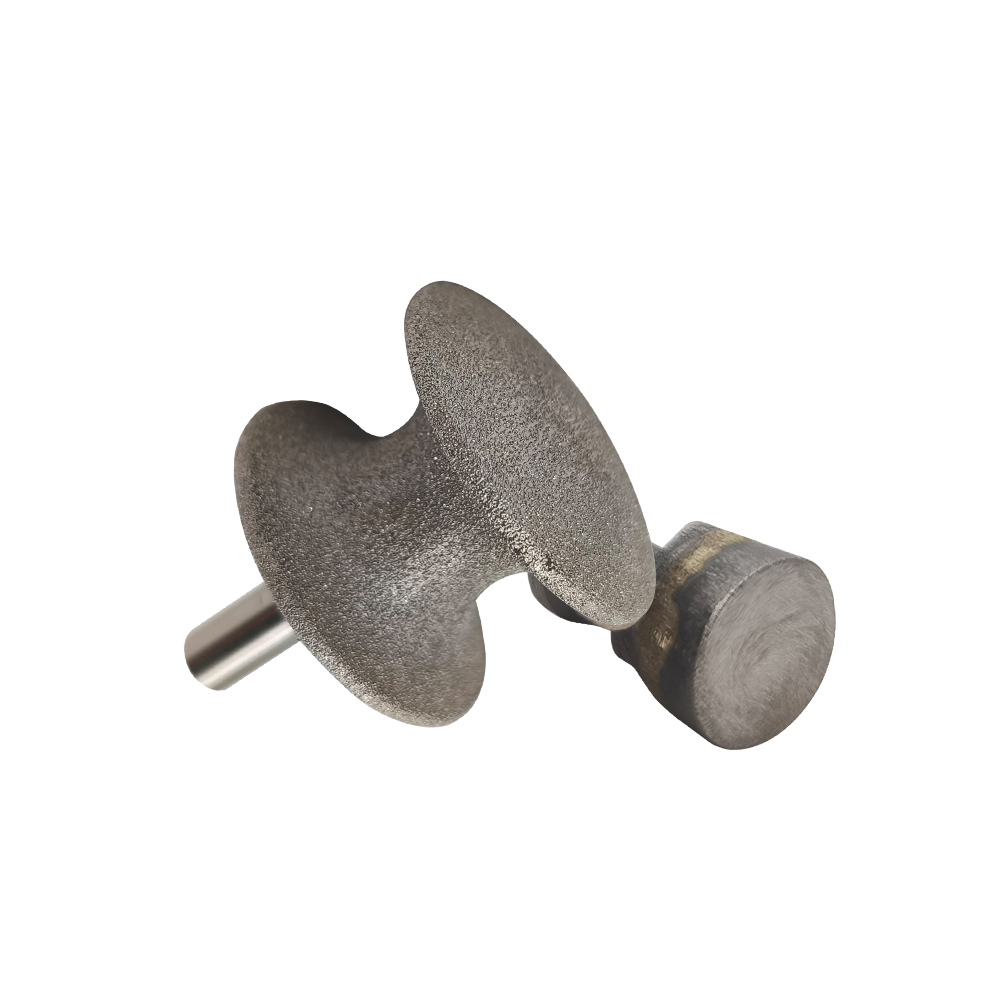

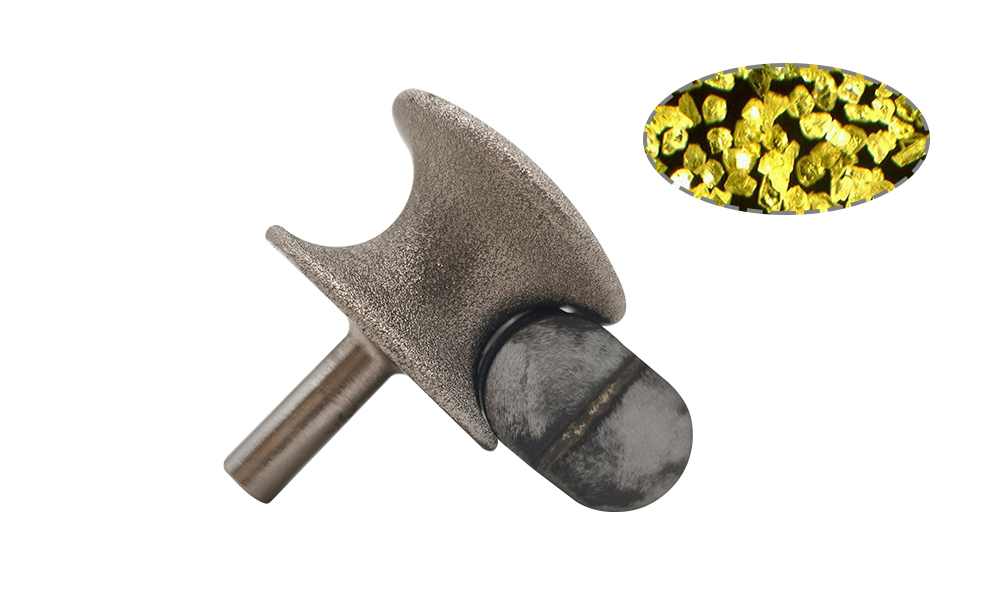

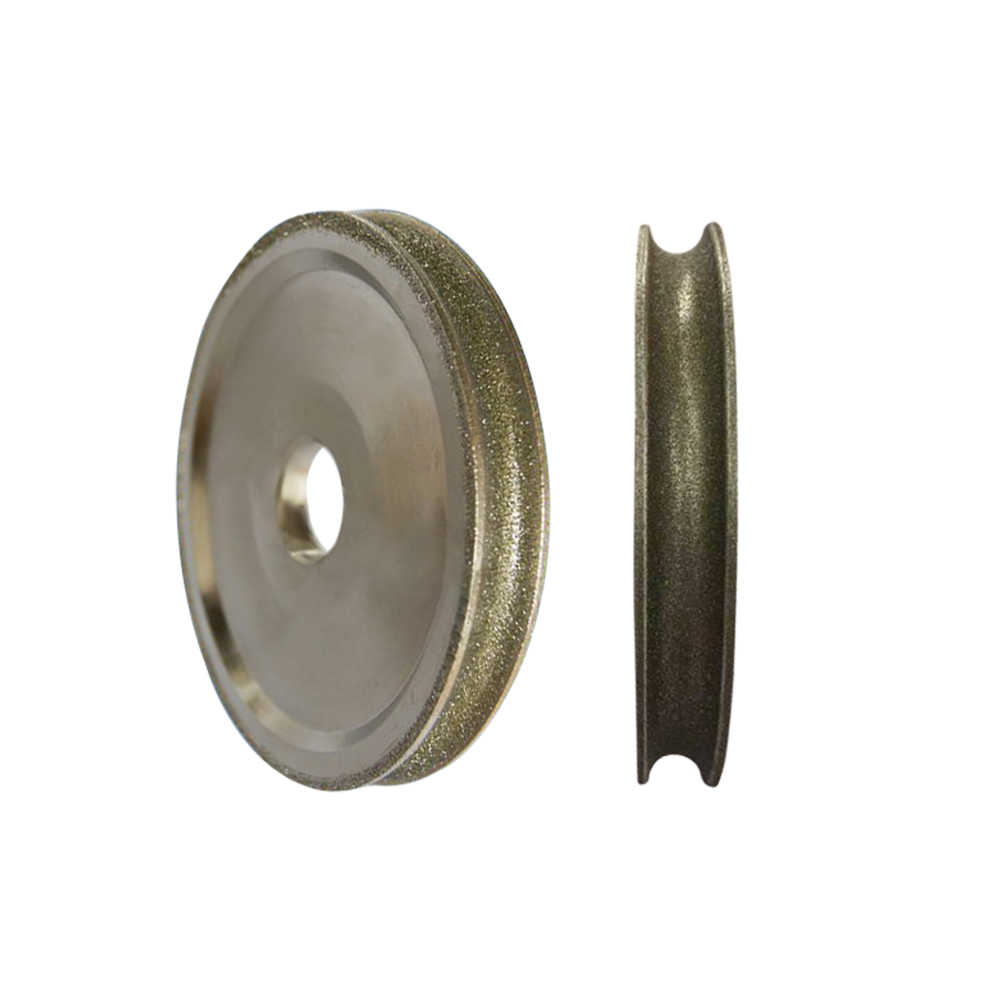

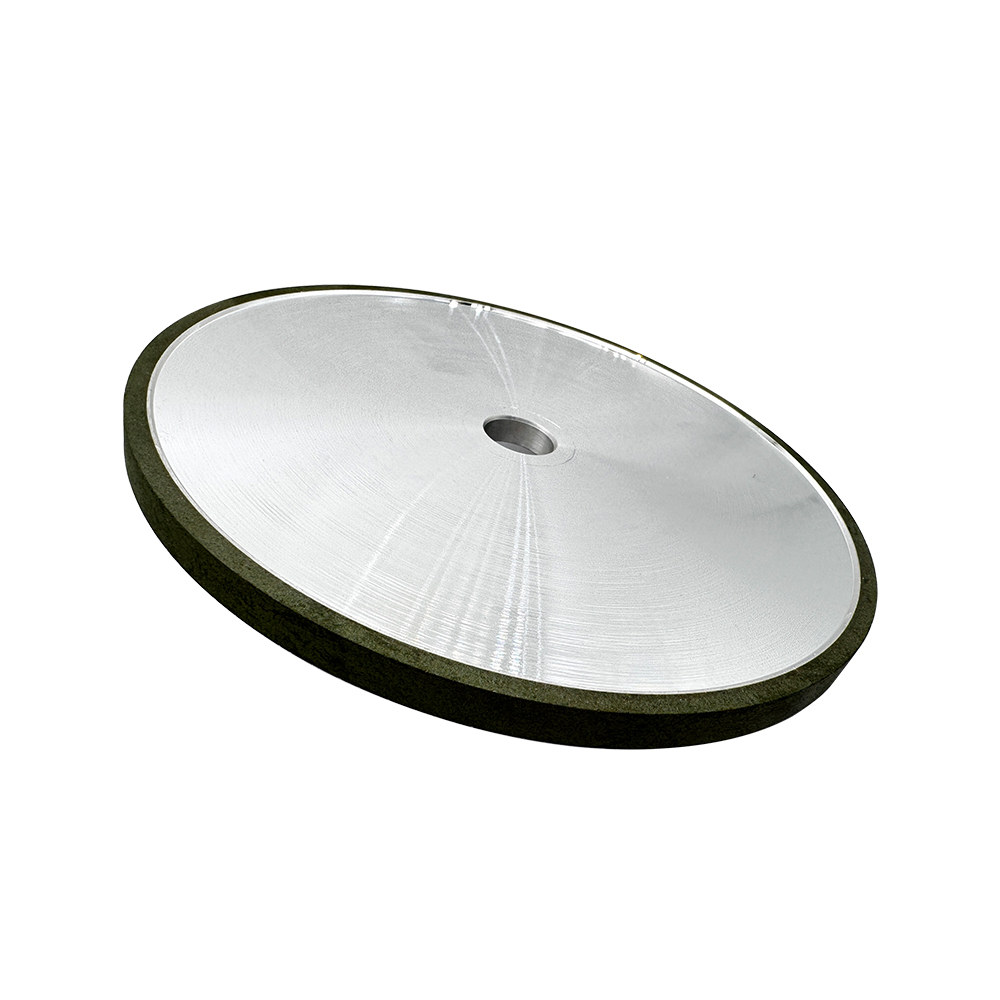

Our electroplated bond and resin bond diamond grinding wheels for sharpening different widths and brands of stump bit teeth. Specialized tool rests on the grinder accept jigs for 1/2" wide standard teeth, 3/4" wide Yellow-Jacket type teeth, and various size Green Teeth.
REZZ will provide you with system solutions for industries such as Sharpening Stump Cutter Teeth.
Features:
* Various grinding methods, top grinding and face grinding.
* Grinds the carbide tooth edge in a matter of seconds.
* Restores a sharper, cleaner finished edge on the tooth
* The Plated Diamond wheels are machined to the exact contour required and retain their shape for the life of the wheel
|
|
Grinding Methods:
| Abrasive | Diamond |
| Bonding | Electroplated, Resin |
| Model | 1A1 |
| Popular Sizes | 5", 6" |
| MOQ | 5 Pieces |
|
Application:

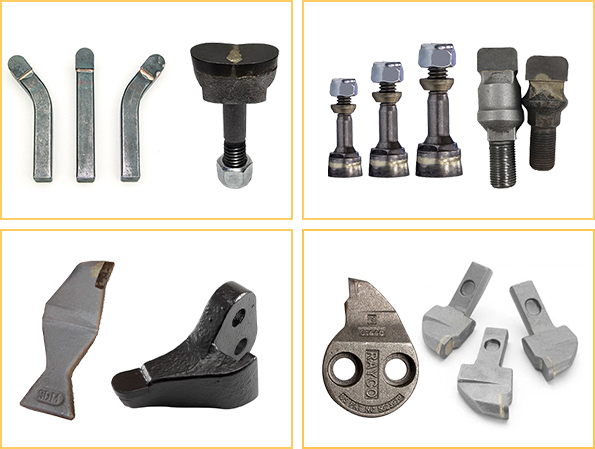

Grinding Workpiece: 1/2" wide standard teeth, 3/4" wide Yellow-Jacket type teeth, Green teeth 500, 700, 900, 1100 series, Sandvik & Carlton -style stump teeth, DK2 tooth, Standard Rayco Super tooth, Vermeer S-pro tooth.
Applicable Tool Material: tungsten carbide

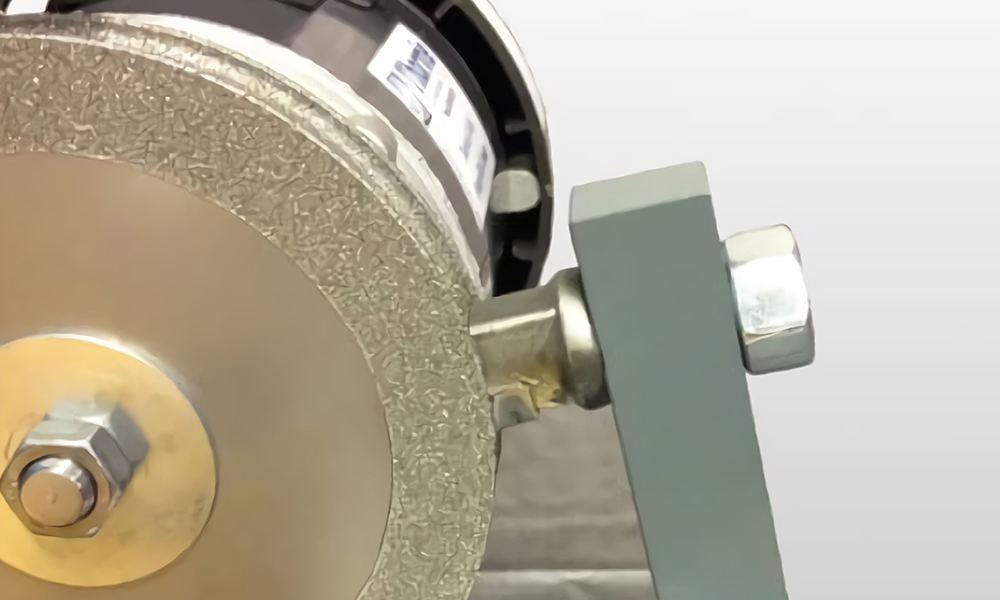

Grinding Method: Top grinding, Face grinding.
Applicable Grinding Machine: DEWALT, Thorvie, Ryobi.
Specifications:

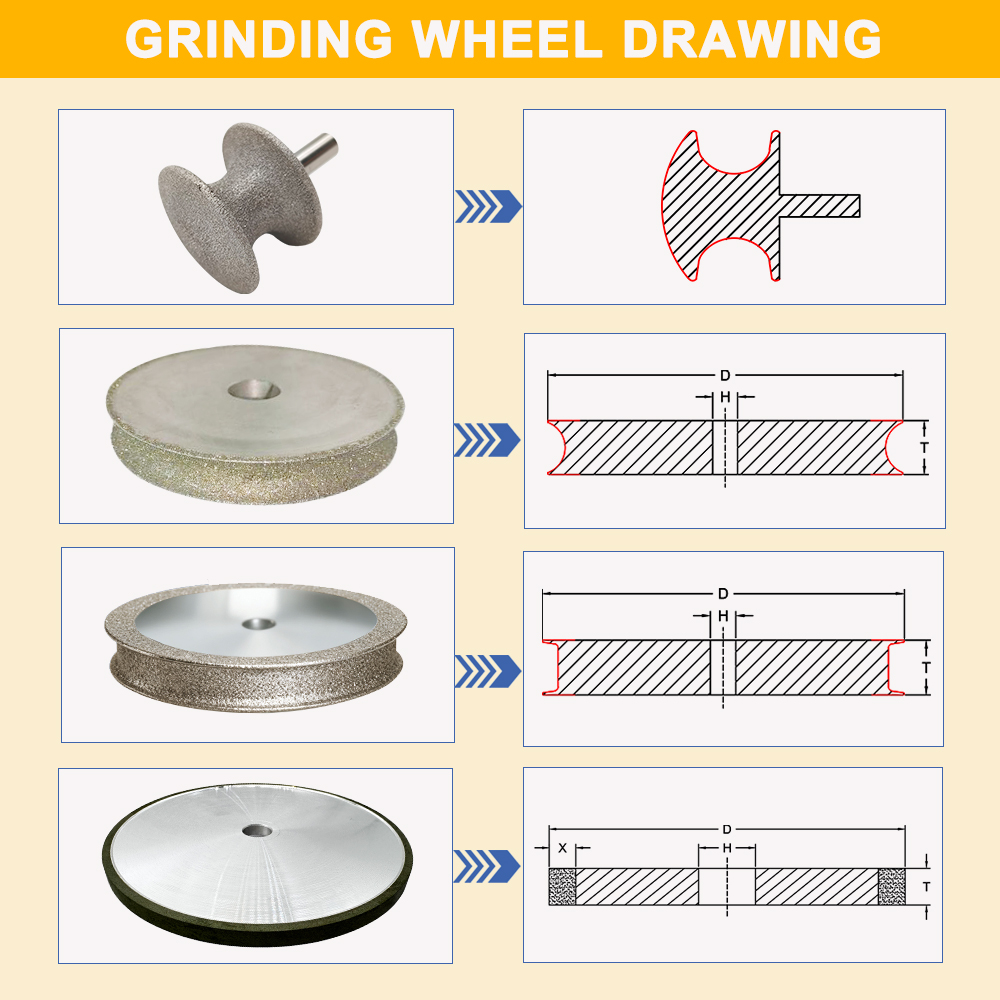

| Dimensions | |||
| For Tooth Type | D(mm) | T(mm) | H(mm) |
| 1/2" Wide Carbide StumpTeeth | 6" | 3/4" | 1/2" |
| 3/4" Wide Teeth(Yellow Jacket) | 6" | 1" | 1/2" |
| Green Teeth(series 700, 900, 1100) | 5" | 1/4" | 1/2" |
| 7/8" Wide Teeth(SANDVIK) | 6" | 1" | 1/2" |
| Any nonstandard size and grits can customized.(tell me size or drawing is enough) | |||
