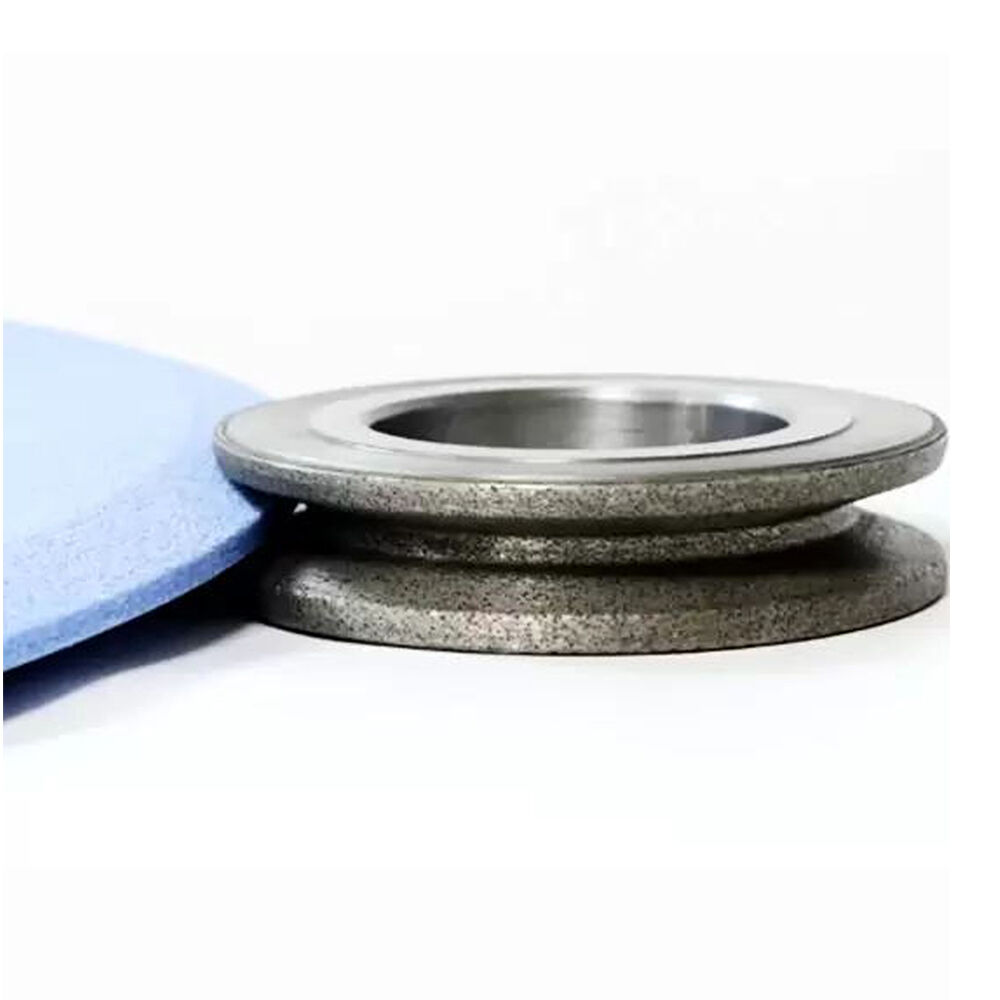

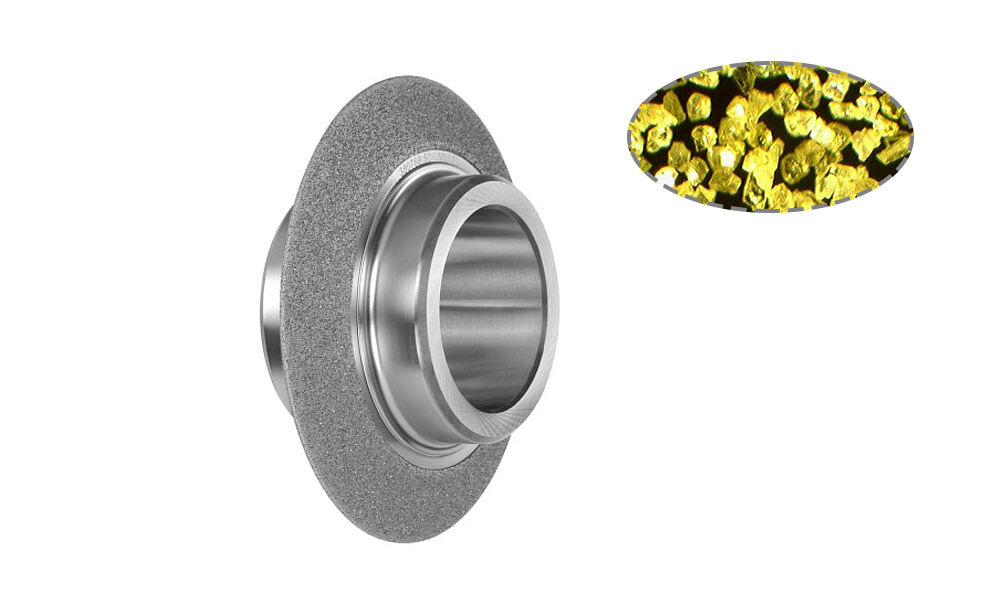

Our Diamond Rotary Dresser for Gear Grinding Wheels is manufactured with premium synthetic diamond and advanced electroplating or sintering technology to ensure high precision and wear resistance. It is mainly used for dressing gear grinding wheels in continuous generating grinding and profile grinding processes. Enables fast, consistent dressing for mass production of precision gears, replacing traditional single-point dressers with superior efficiency and accuracy.
MOQ: 5pcs
The diamond roller has high rigidity, large amount of dressing, and high efficiency, more suitable for dressing complex forming surfaces. The methods of diamond roller dressing are divided into plunge-type roller dressing and swing-type roller dressing.The dresser operates through synchronized high-speed rolling contact with gear grinding wheels, transferring its pre-engineered precise profile to the wheel surface—critical for maintaining gear tooth accuracy in production.
REZZ will provide you with system solutions for grinding wheel dressing of automobile parts, gear, precision bearings, aircraft parts, ball screws, that require high precision.
Features:
* Ultra-Precision Contour: ≤0.5° angle symmetry, ≤2μm arc
tolerance, guarantees gear tooth accuracy
* High Efficiency: Dressing time from 30+ mins to seconds,
30%+ throughput boost
* Long Service Life: 20–30x longer than single-point dressers,
15k–20k dressing cycles
* Cost-Saving: Reduces tool replacement & downtime, cuts overall processing costs
* Complex Profile Compatibility: Customizable for helical
/bevel/hypoid gears (single-point tools can’t match)
|
|

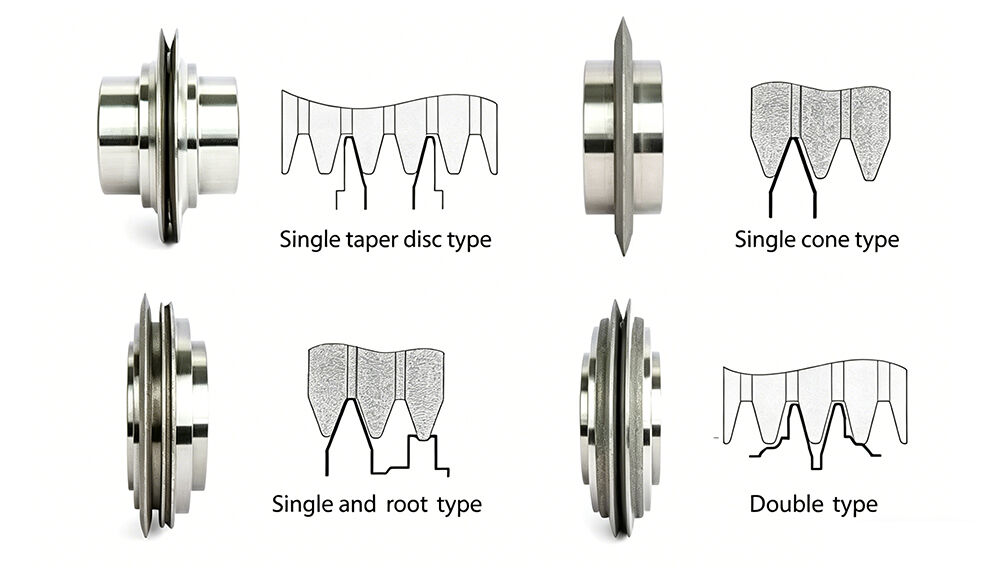

Grinding Methods:
| Abrasive | Diamond |
| Bonding | Electroplated |
| Grit | Customized |
| Popular Sizes | Customized |
| MOQ | 5 Pieces |
|

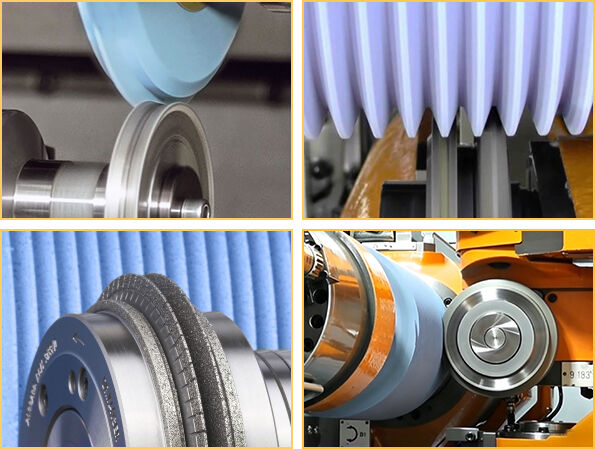

Application:
Grinding Workpiece: Conventional abrasive grinding wheels and CBN wheels
Applicable Tool Material: Ceramic matrix composites, Corundum (alumina), SG (sol-gel alumina), etc.
Grinding Method: Profile grinding, High-speed rolling contact dressing, CNC synchronized dressing, Automated in-cycle dressing.
Applicable Grinding Machine: Reishauer, KAPP NILES, GLEASON, Samputensili, Liebherr, Cinetic Landis, TOYODA, Holroyd, Meccanodora, Pfauter, etc.
Specifications:
| Product Name | Diamond Rotary Dresser for Gear Grinding Wheels |
| Dressing Type | Profile Dressing / Form Dressing |
| Diamond Type | Synthetic Diamond / CVD Diamond |
| Manufacturing Process | Electroplated / Sintered / Reverse-Plated |
| Outer Diameter | 50 mm – 300 mm |
| Width | Customized |
| Bore Size | Customized |
| Profile Accuracy | Up to ±0.002 mm |
| Concentricity | ≤0.003 mm |
| Dressing Speed | High-Speed CNC Dressing |
| Application | Gear Grinding Wheel Dressing |
