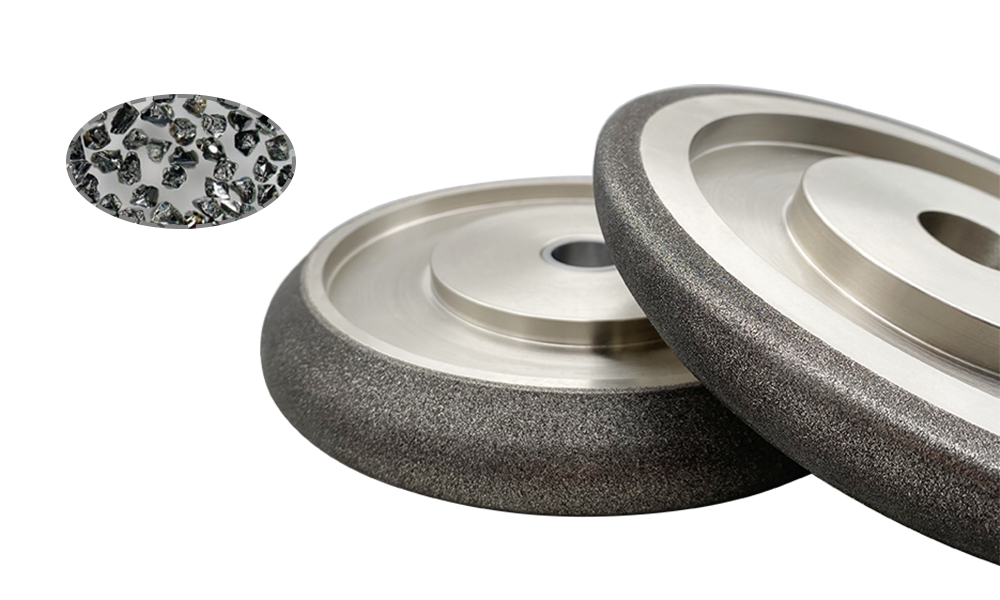

Electroplated CBN band saw sharpening wheel is coated with CBN(Cubic Boron Nitride) on steel body,specially for band saw sharpening of any type. Electroplated cbn band saw sharpening wheel achieves superior performance, gives high quality finish. These wheels are perfect choice to grind band saws.
MOQ: 5pcs
Electroplated CBN/ Diamond band saw sharpening wheel is coated with CBN/ Diamond on steel body. it minimizes saw teeth breakage, dust generation, and no need dressing at all. The high quality Diamond/ CBN coating enhances wheel durability, and ensures consistent sharpening results.
CBN is suitable for bi-metal, steel, alloy steel and hareded steel blades;
Diamond is recommeded for tungsten carbide blades.
Features:
* Less heat generation, higher grinding efficiency.
* Longer life, more suitable for grinding band saws.
* The steel body is strong and durable and will never deform.
* One grinding wheel can help you grind more than 1000 bandsaws.
* High quality steel body and selected CBN abrasives,
the quality equals or better than origional brand wheels.
|
|
Grinding Methods:
| Abrasive | Diamond, CBN, Ordinary Abrasive |
| Bonding | Electroplated, Resin |
| Model | 1F1, 1V1, 6A2 |
| Grit | B126, B151, B181 |
| Popular Sizes | 5"-12" |
| MOQ | 5 Pieces |
|

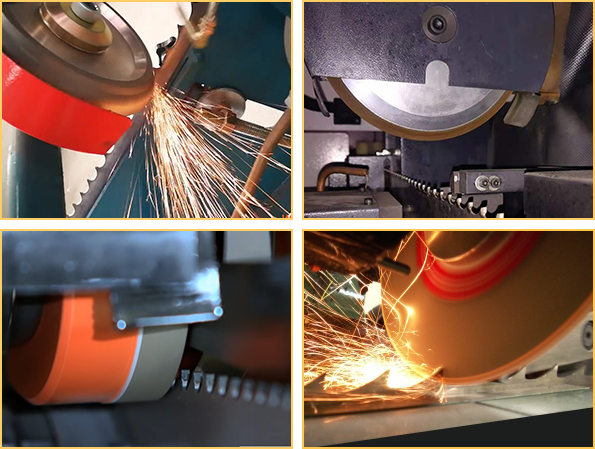

Application:
Grinding Workpiece: Band saw tooth, band saw blades
Applicable Tool Material: tungsten carbide, HSS.
Grinding Method: Profile grinding
Applicable Grinding Machine: Wright, Vollmer, Wood-Mizer, Colonial Saw, Amada, Cooks, WOODLAND MILLs, Timberking, WESTRON, Holzmann, NEVA, ISELI, Hud-Son, ZMJ, YOKEN.
Saw Blade Applicable: Simonds, Lenox, Wood-Mizer, Dakin-flathers Ripper, Timber Wolf, Lenox Woodmaster, Munkfors, fenes, Armoth, Ro-Ma, Wintersteiger, MK Morse, Forezienne, Bacho, Pilana, Disston.
Specifications:
| Dimensions | ||||
| Diameter | Tooth Space | Bore Diameter | Abrasive | Profiles |
| 5" -127mm | 7/8", 1", 1-1/8" | 1/2" -12.7mm | CBN or Diamond | 10/30, 9/29, 4/32, 7/39.5 |
| 6" -150mm | 7/8", 1", 1-1/8" | 1/4" -31.75mm | CBN or Diamond | 10/30, 9/29, 4/32, 7/39.5 |
| 8" -203.2mm | 7/8", 1", 1-1/8" | 1/4" -31.75/32mm | CBN or Diamond | 10/30, 9/29, 4/32, 7/39.5 |
| 10" or 12" | 7/8", 1", 1-1/8" | 1/4" -31.75/32mm | CBN or Diamond | 10/30, 9/29, 4/32, 7/39.5 |
| Any nonstandard size and grits can customized.(tell me size or drawing is enough) | ||||
