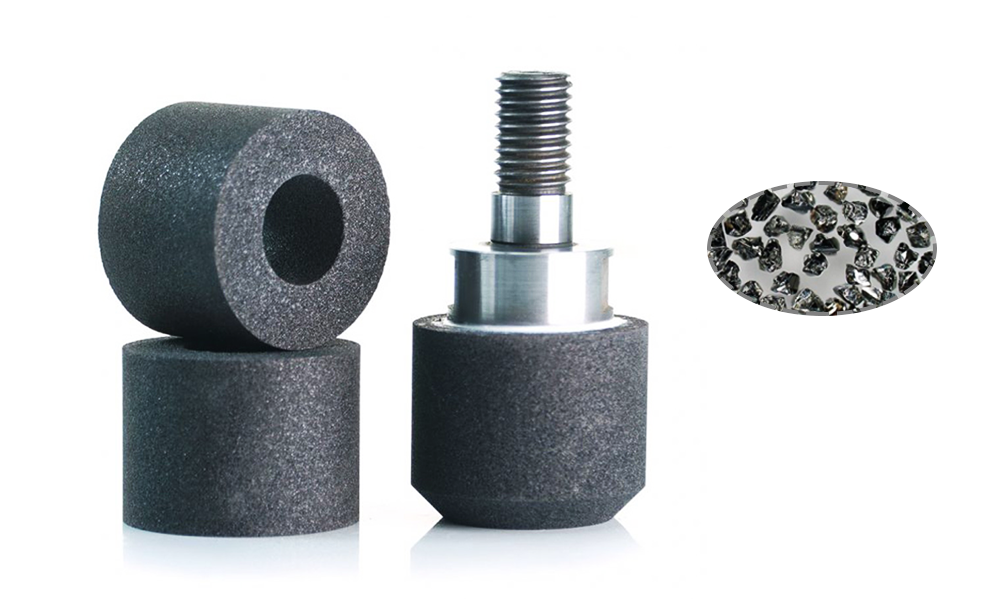

REZZ can provide CBN grinding wheels for bearing outer ring grinding, inner ring grinding, outer groove grinding and inner groove grinding. The precise shape retention and efficient grinding performance of the CBN grinding wheel ensure the accuracy of the workpiece shape, reduce the size dispersion of the workpiece and improve the production efficiency.
MOQ: 5pcs
Our abrasive solutions have improved the efficiency, quality and cost of manufacturing bearings. There are many types of grinding wheel applications that go into manufacturing bearings. The Centerless grinding wheel for the Outer Ring. For Balls of the bearing REZZ uses the Ball lapping wheels. The Inner Ring section of the bearing are grinded by REZZ outer dimensional and inner dimensional ceramic grinding wheels.
Bearing is an important basic parts of all kinds of mechanical equipment, mainly used in metallurgy, wind power, mining machinery, aerospace, automotive parts and so on.REZZ will provide you with bearing grinding system solutions for various industries.
Features:
* High grinding accuracy, stable precision, good shape retention
* Sharp cutting, high production efficiency.
* Good thermal conductivity, no workpiece burn
* The coefficient of thermal expansion of grinding is small, so it is not easy to clog
* With good grinding surface quality and longer service.
|
|

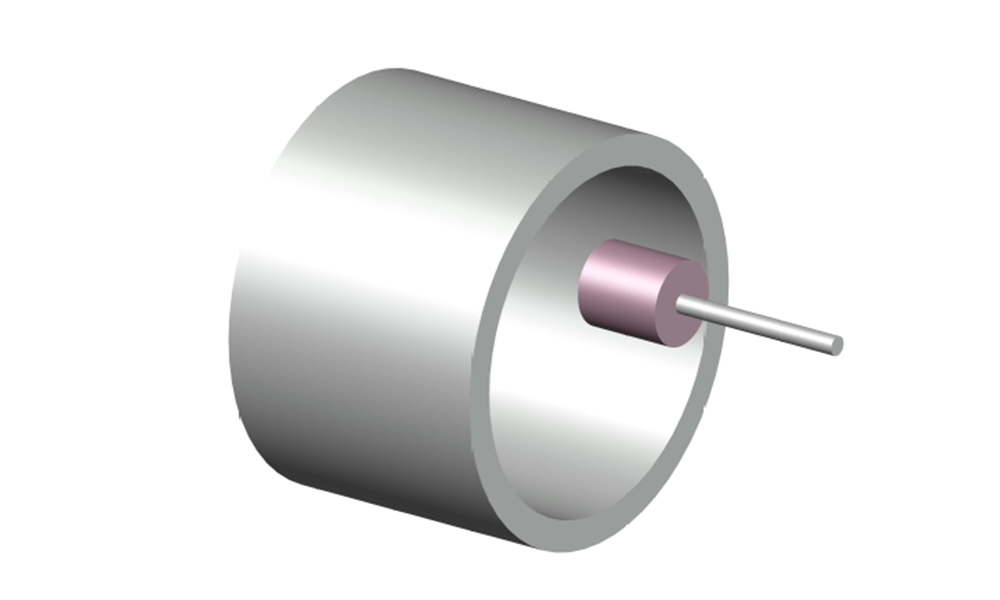

Grinding Methods:
| Abrasive | CBN |
| Bonding | Vitrified |
| Model | 1A1, 1A8, 1A1W |
| Popular Sizes | 50.8-200mm |
| MOQ | 5 Pieces |
|
Application:
Grinding Workpiece: Ball bearing, Single Row Deep Groove Bearing, Cup needle roller bearings, Taper Roller Bearing, Car Bearing.
Applicable Tool Material: High Carbon Chromium Bearing Steel, Martensitic Stainless Steel (440C), Austenitic Stainless Steel (316), Silicon Nitride Ceramic, Tin Bronze / Aluminum Bronze
Grinding Method:ID grinding, Internal grinding, bearing inner groove grinding.
Applicable Grinding Machine: Wendt WBM, Viotoo, AMT, Stahli, Peter Wolters, Diskus, Agathon T&B, Fujisanki, Supfina, Melchiorre, Koyo, Lam Plan, Speedfam, Kemet, Gardner and other brands.
Specifications:
| Dimensions | ||||||
| Grinding Method | Model | D(mm) | T(mm) | H(mm) | W(mm) | X(mm) |

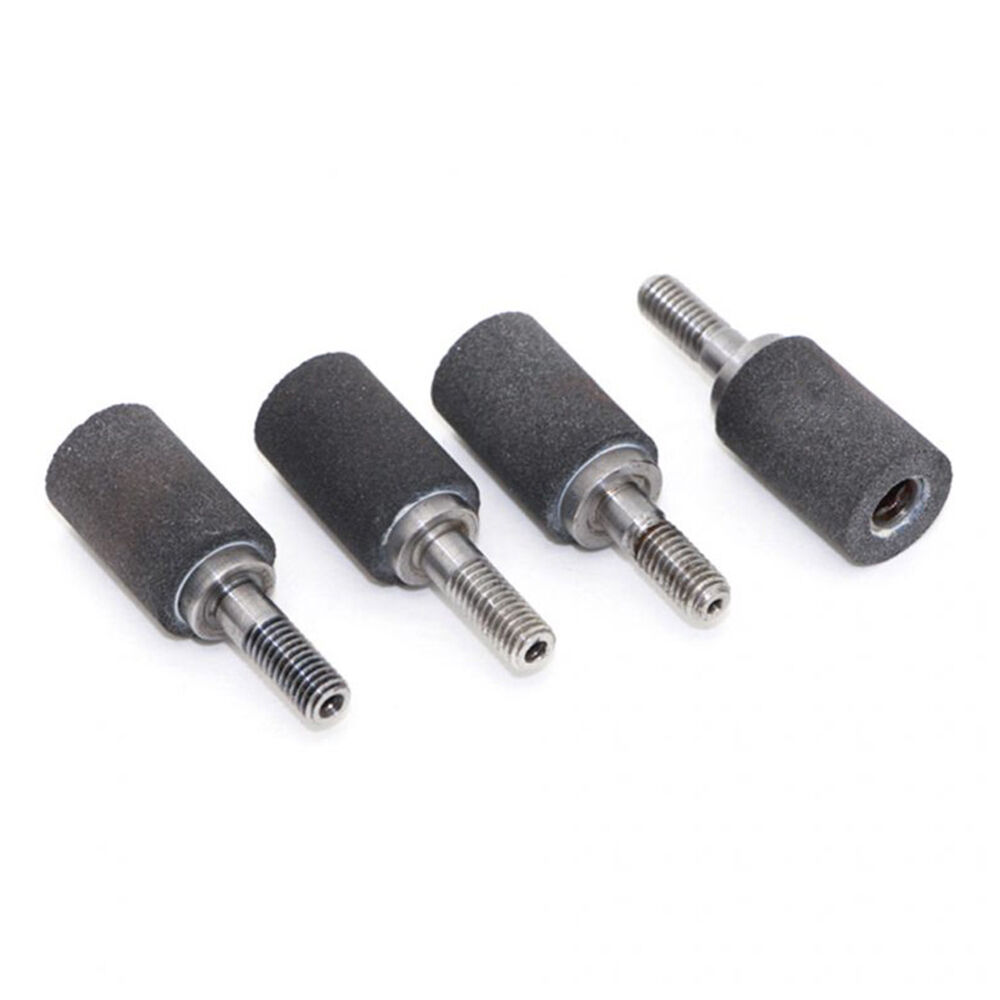

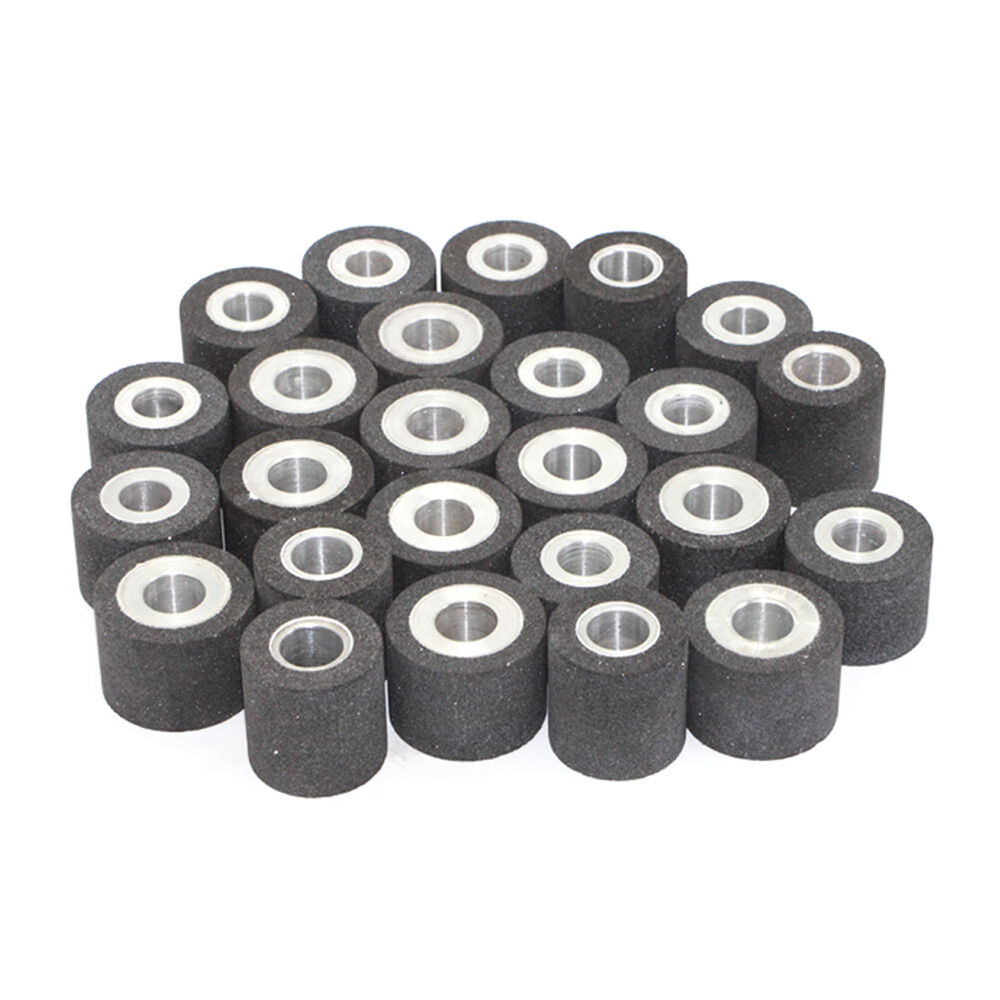

| Internal grinding | 1A1, 1A8, 1A1W | 50.8-200 | 25.4 | As required | / | As required |
| Any nonstandard size and grits can customized.(tell me size or drawing is enough) | ||||||
