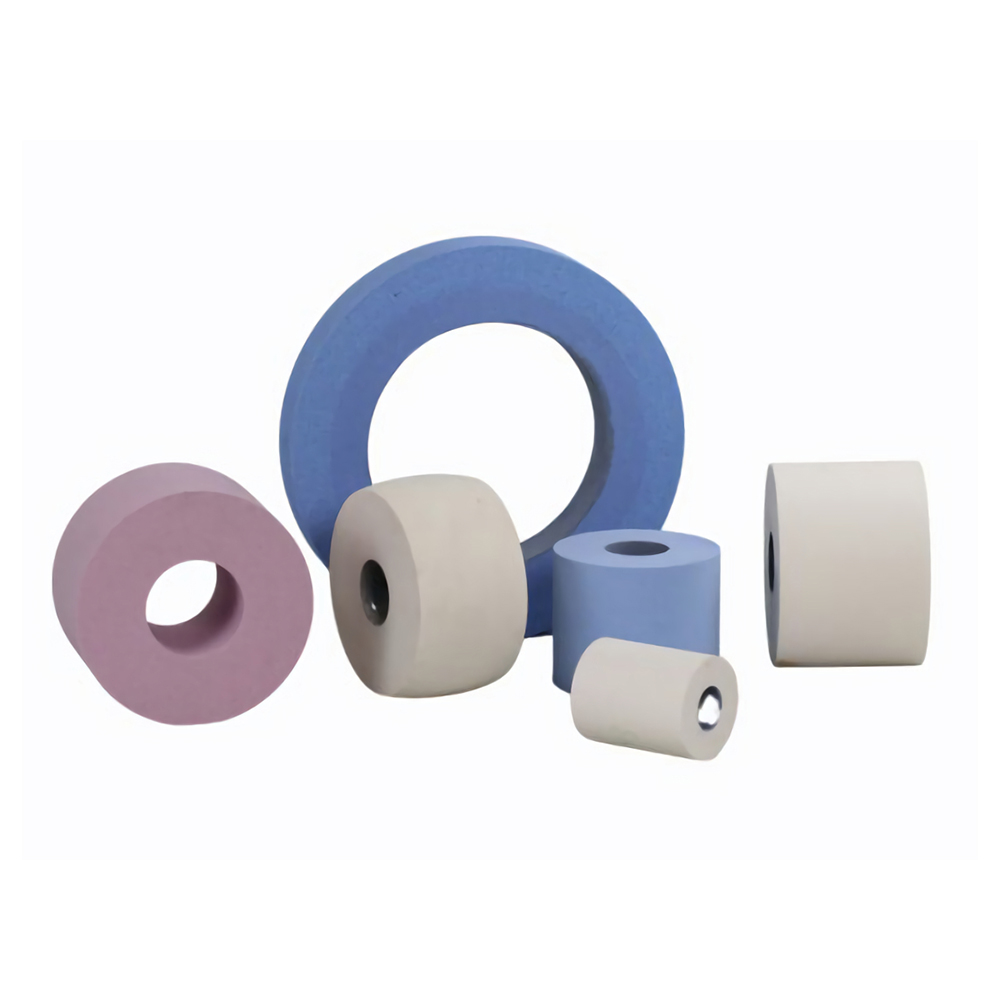

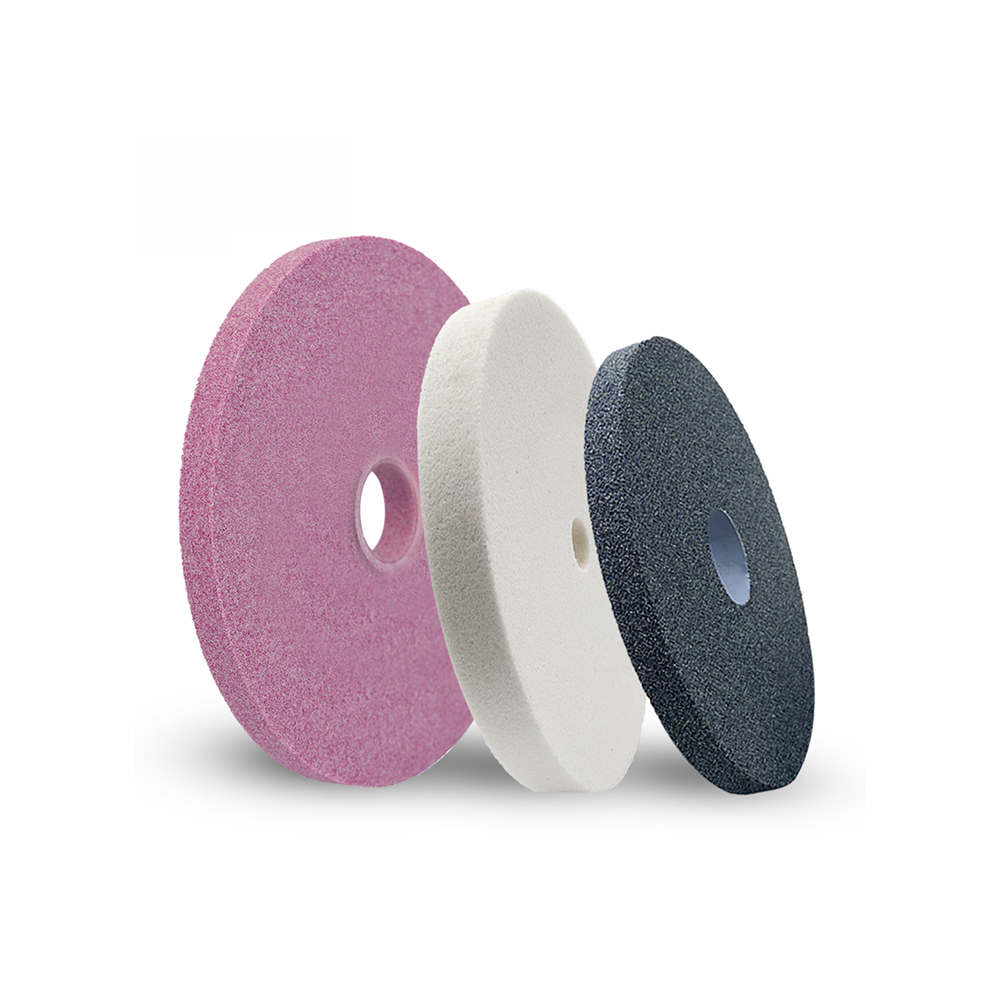

Conventional abrasive grinding wheel for bearing

Conventional abrasive grinding wheel for bearing

Abrasive: WA, PA, A, GC, C, A/WA
Parts for process: bearing ring, inner/outer raceway
Double face grinding bearing, Internal grinding wheel, Centerless grinding wheel, Track grinding wheel.

MOQ: 5pcs

Download

Description

conventional abrasive grinding wheel for bearing977-1

+86-13938485694

[email protected]

Description

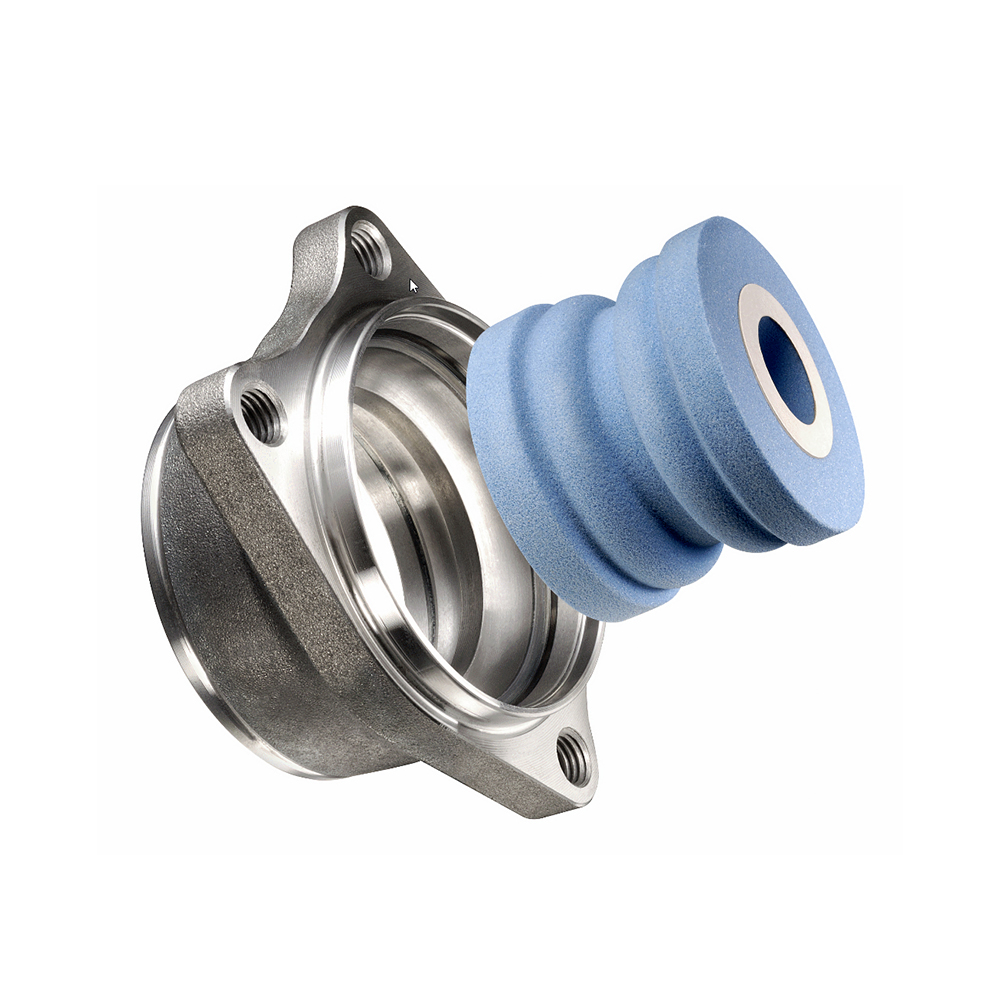

Bearing raceway grinding wheel is used for grinding bearing raceways through the process of plunge grinding.

Internal grinding wheels are used for grinding inner diameter of bearings, gears & automobile components to an accurate size & desired finish.

When grinding with a centerless grinder, there are two grinding wheels: a guide wheel and a grinding wheel. The guide wheel drives the cylindrical workpiece to rotate on the pad, and the grinding wheel plays a grinding role on the workpiece.

REZZ will provide you with system solutions for industries such as Bearing. Our product covers grinding wheels for virtually every operation needed in the production of bearings and components. Product applications covering bearing steels, exotic high alloyed steels for the aircraft industry and ceramics.

Features:

* High grinding efficiency, Long service life and Good shape retention.
* High strength synthetic diamond for high removal rates while excellent finish.
* Sharp shape synthetic diamond for long dressing intervals.
* Free cutting design for low cutting energy.

* Better cutting edge with smaller chipping.

* Good uniformity of size because the stable uniform structure and materials in abrasive layer.

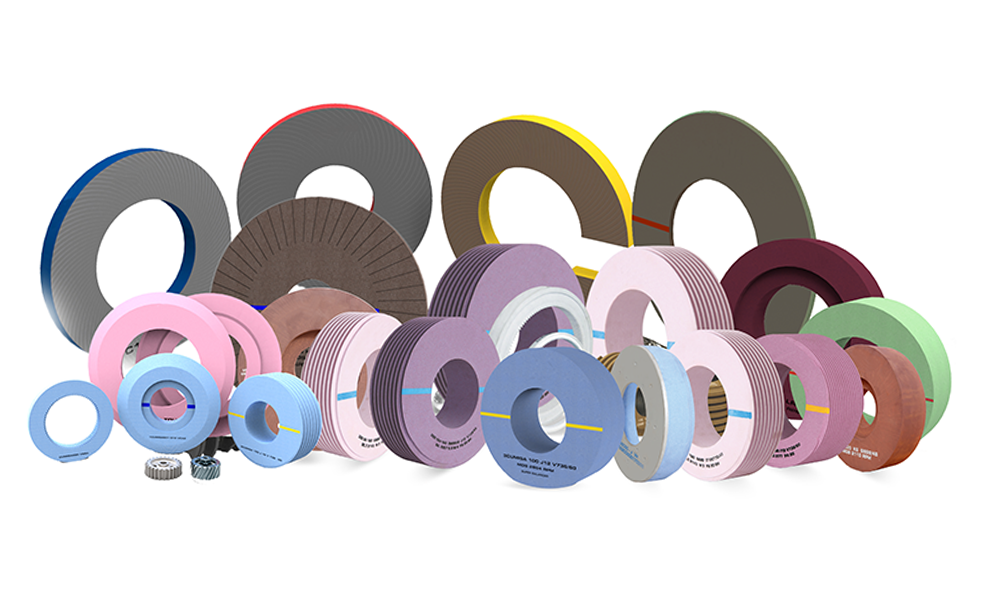

bearing grinding app(9dcd573b00).png

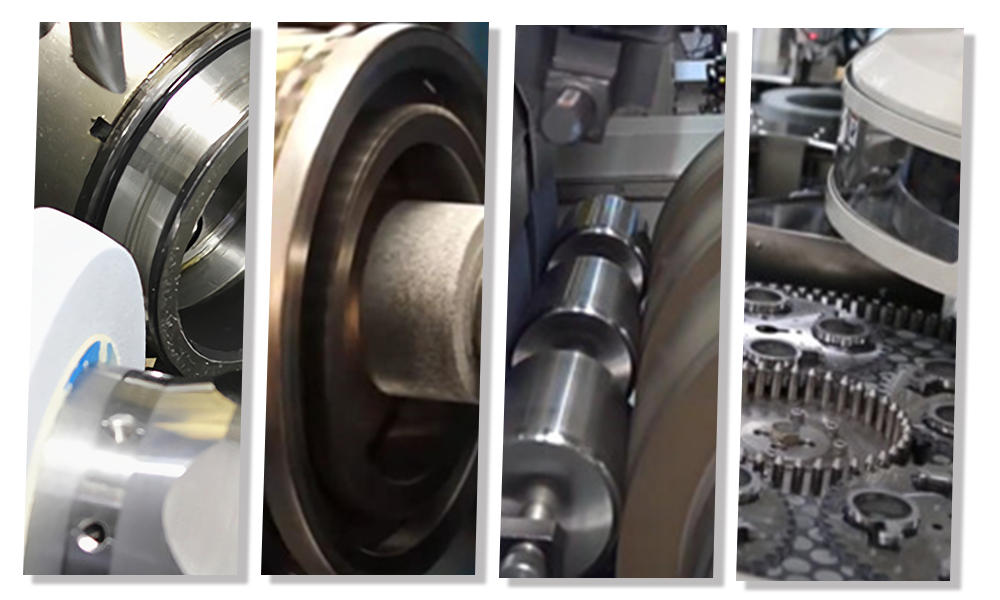

bearing grinding app-1.png

Grinding Methods:

Abrasive	WA, PA, A, GC, C, A/WA
Bonding	Vitrified, Resin
Model	As request
Popular Sizes	55-915mm
MOQ	5 Pieces

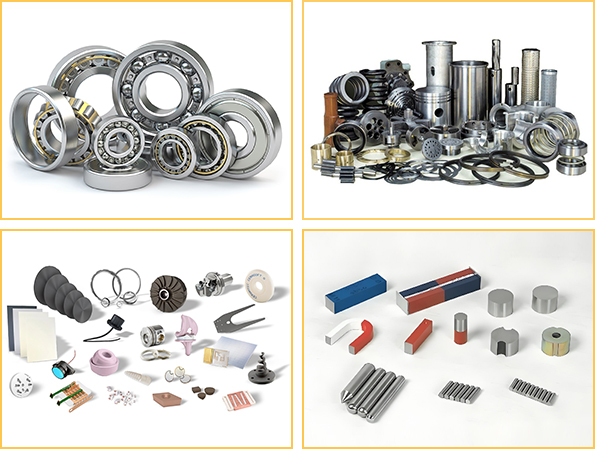

abrasive grinding wheel for bearing app.jpg

Application:

Grinding Workpiece: bearing end faces, piston rings, gaskets, interstitials, compressor parts, ceramic, etc.

Applicable Tool Material: High-speed tool steel, bearing steel, semiconductor materials, magnetic materials, etc.

Grinding Method: Surface grinding, OD grinding, ID grinding, Internal grinding, Centerless grinding, bearing inner groove grinding, Profile grinding.

Applicable Grinding Machine: Wendt WBM, Viotoo, AMT, Stahli, Peter Wolters, Diskus, Agathon T&B, Fujisanki, Supfina, Melchiorre, Koyo, Lam Plan, Speedfam, Kemet, Gardner and other brands.

Specifications:

Dimensions
Shape	D(mm)	T(mm)	H(mm)
Double disc grinding wheel	475-915	...	...
Centerless grinding wheel	200-610	22.8-290	75-305
Raceway grinding wheel	55-600	10-16	16-305
Any nonstandard size and grits can customized.(tell me size or drawing is enough)
