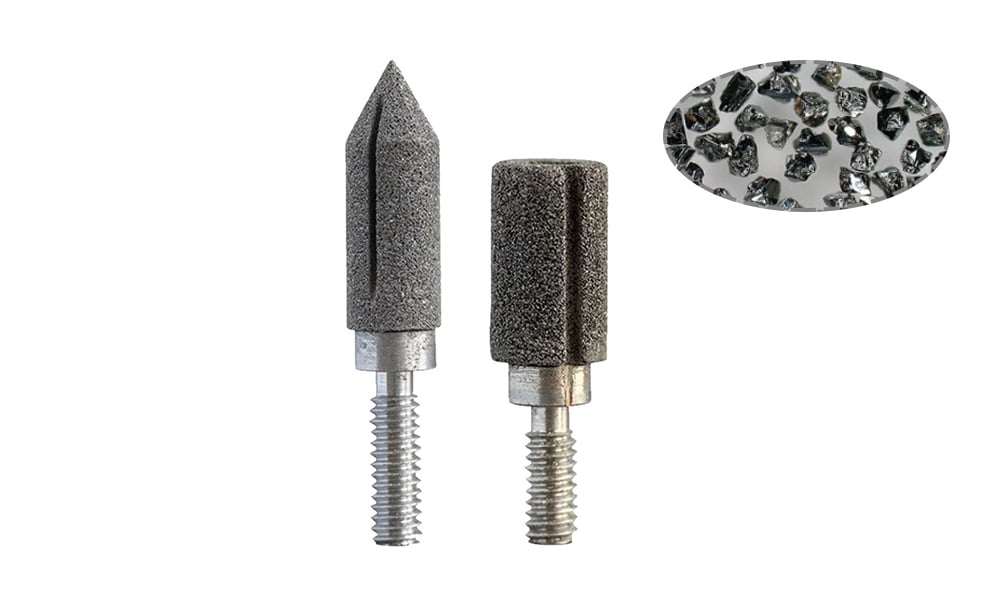

Injection nozzle grinding wheels are specialized tools used to recondition fuel injector nozzles, ensuring precise fuel atomization and optimal engine performance. These wheels, often made of CBN or diamond, are used in conjunction with grinding machines to restore the nozzle's sealing surfaces and valve seats. The grinding process removes imperfections and wear, allowing for proper fuel delivery and combustion.
MOQ: 5pcs
REZZ will provide you with system solutions for industries such as injection nozzle grinding, fuel injection bore grinding, fuel injection seat grinding.
Features:
* Longer dressing interval
* Consistent grinding performance
* Highly precise wheel shape including coolant hole and slots
* Extended lifespan of fuel injectors
|
|
Grinding Methods:
| Abrasive | CBN |
| Bonding | Vitrified |
| Model | 1A1, 1A1W, 1A8 |
| Grit | Customized |
| MOQ | 5 Pieces |
|

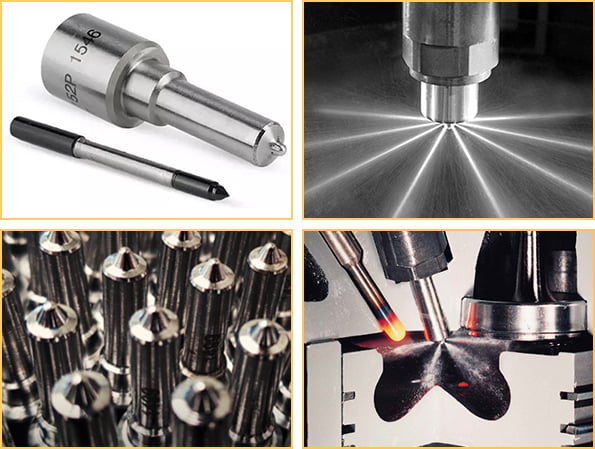

Application:

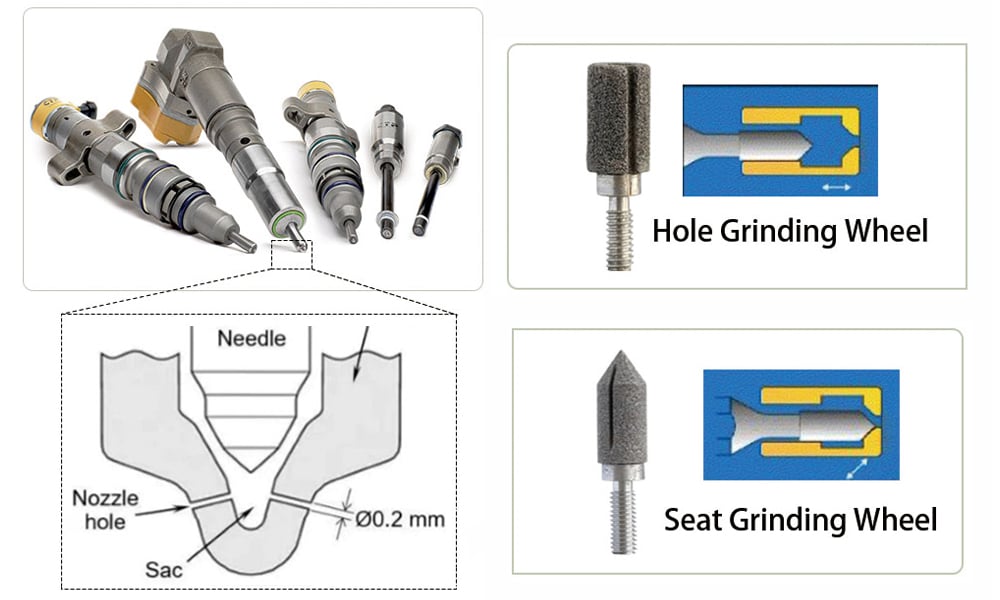

Grinding Workpiece: fuel injection bore, fuel injection seat.
Applicable Tool Material: 18CrNi8, GCr15, K340, 440c, 440J, 1538MV, 100Cr6, etc.
Grinding Method: ID Internal grinding.
Applicable Grinding Machine: Studer S11,DL-GR7400, etc.
Specifications:
| Dimensions | ||
| D(mm) | T(mm) | Grit |
| 3.8-4.1 | 6-10.5 | As required |
| Any nonstandard size and grits can customized.(tell me size or drawing is enough) | ||
