The outer ring of the bearing is often processed by centerless grinding. Generally speaking, segmented centerless grinding can achieve very high accuracy.
MOQ: 1pcs

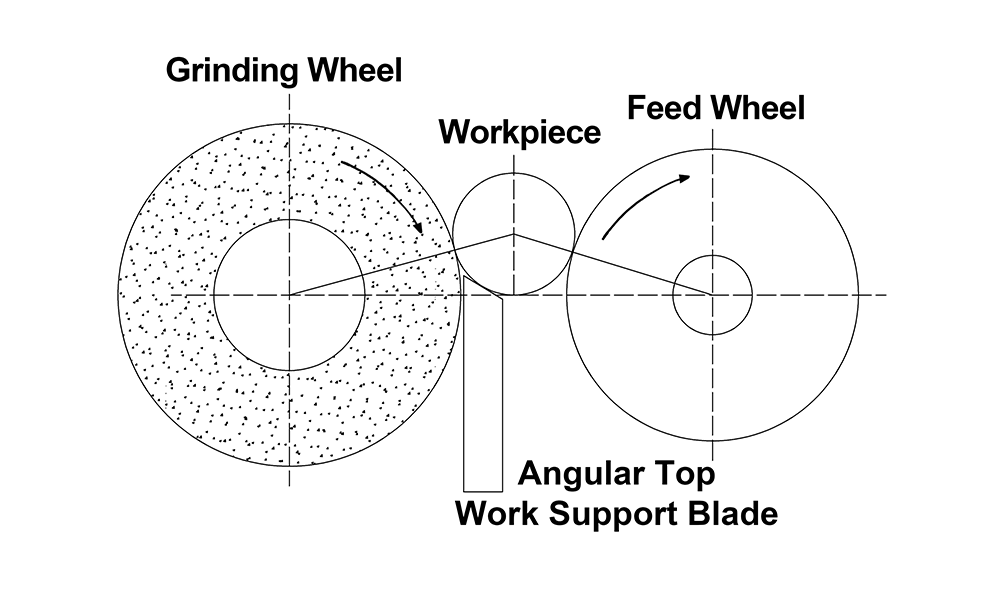

When grinding with a centerless grinder, there are two grinding wheels: a guide wheel and a grinding wheel. The guide wheel drives the cylindrical workpiece to rotate on the pad, and the grinding wheel plays a grinding role on the workpiece. By correctly setting the angles of the grinding point, the support point of the supporting plate and the supporting point of the guide wheel, the grinding surface is supported for processing.
REZZ will provide you with system solutions for bearing centerless grinding wheel industries such as Bar grinding, Bearing Race OD ring grinding, Auto part grinding e.g. piston pins, shock absorber tubes & rods, engine valve stems, dowell pins, etc.
Features:
* Efficient batch centerless grinding
* High roundness and cylindricity of workpiece
* High grinding accuracy, stable precision, good shape retention
*With good grinding surface quality and longer service
* The coefficient of thermal expansion of grinding is small, so it is not easy to clog
* Used for rough grinding, semi-fine grinding and fine grinding
|
|
Grinding Methods:
| Abrasive | Diamond |
| Bonding | Resin |
| Model | 1A1, 6A1, 9A1 |
| Popular Sizes | 125-600mm |
| MOQ | 1 Pieces |
|
Application:

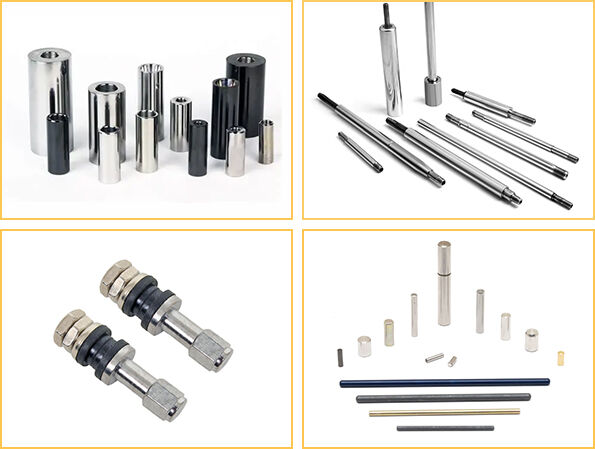

Grinding Workpiece: Piston pins, shock absorber tubes & rods, engine valve stems, dowell pins, etc.
Applicable Tool Material: High Carbon Chromium Bearing Steel, Martensitic Stainless Steel (440C), Austenitic Stainless Steel (316), Silicon Nitride Ceramic, Tin Bronze / Aluminum Bronze
Grinding Method:Centerless grinding, Bearing Race OD ring grinding.
Applicable Grinding Machine: Koyo, Crystec, Dedtru, Landis , okuma, Paragon, Royal Master, Unison, WMV and so on.
Specifications:
| Dimensions | ||||||
| Grinding Method | Model | D(mm) | T(mm) | H(mm) | W(mm) | X(mm) |
| Centerless grinding | 1A1, 6A1, 9A1 | 125-600 | 50-350 | 75-305 | / | 5-10 |
| Any nonstandard size and grits can customized.(tell me size or drawing is enough) | ||||||
