9A3 Diamond grinding wheel used for sharpening and finishing of hard alloyed tools, maching of glass, ceramic, quarts, semi-conductors, tungsten carbide cutting tools.

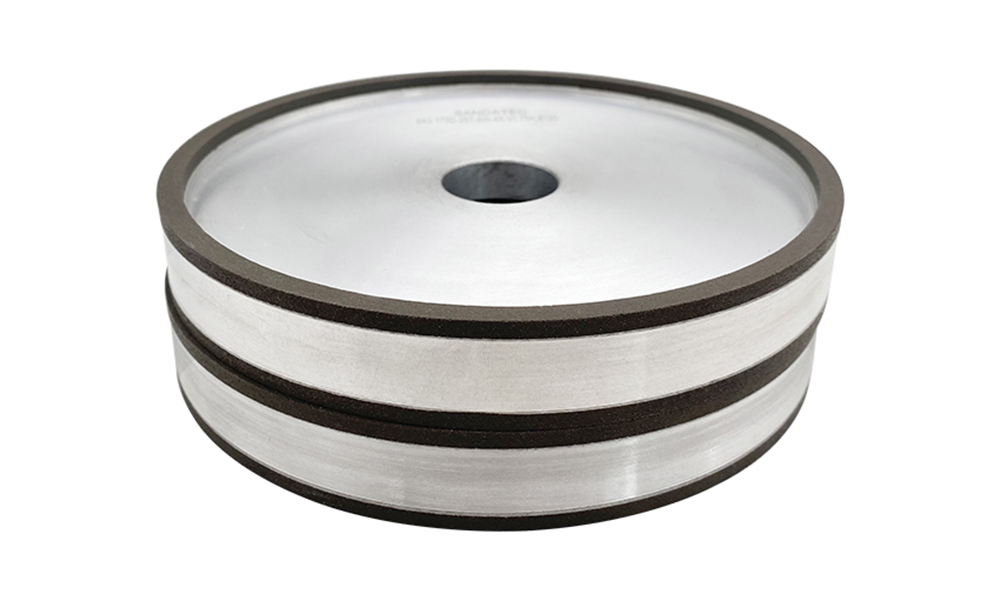

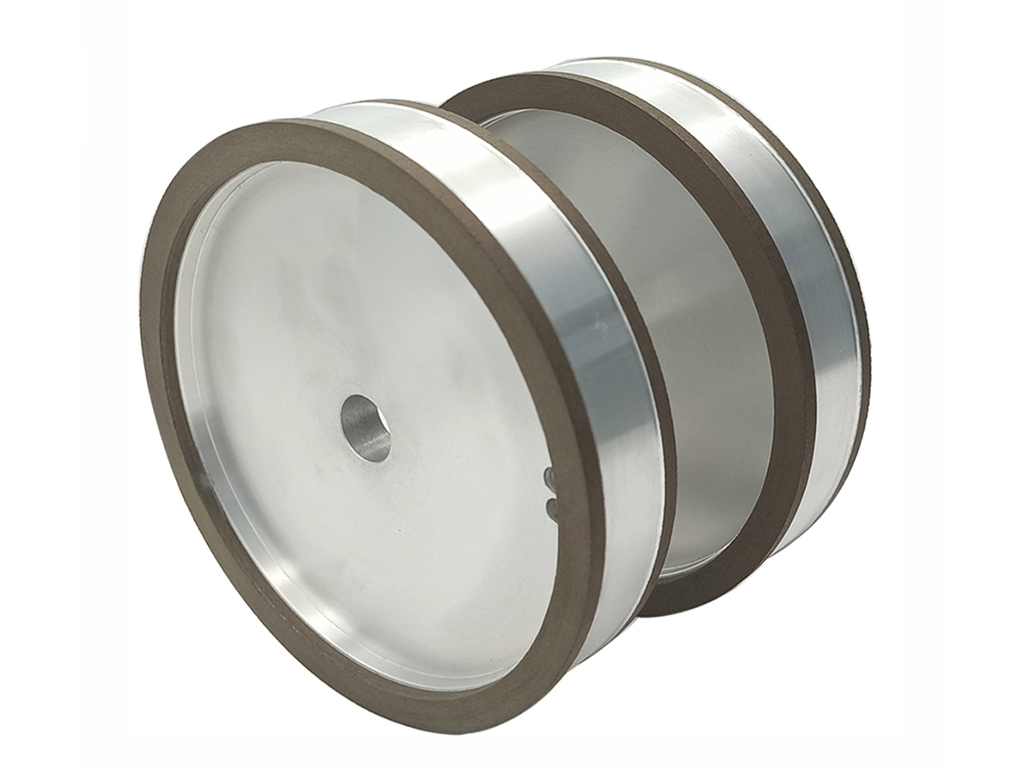

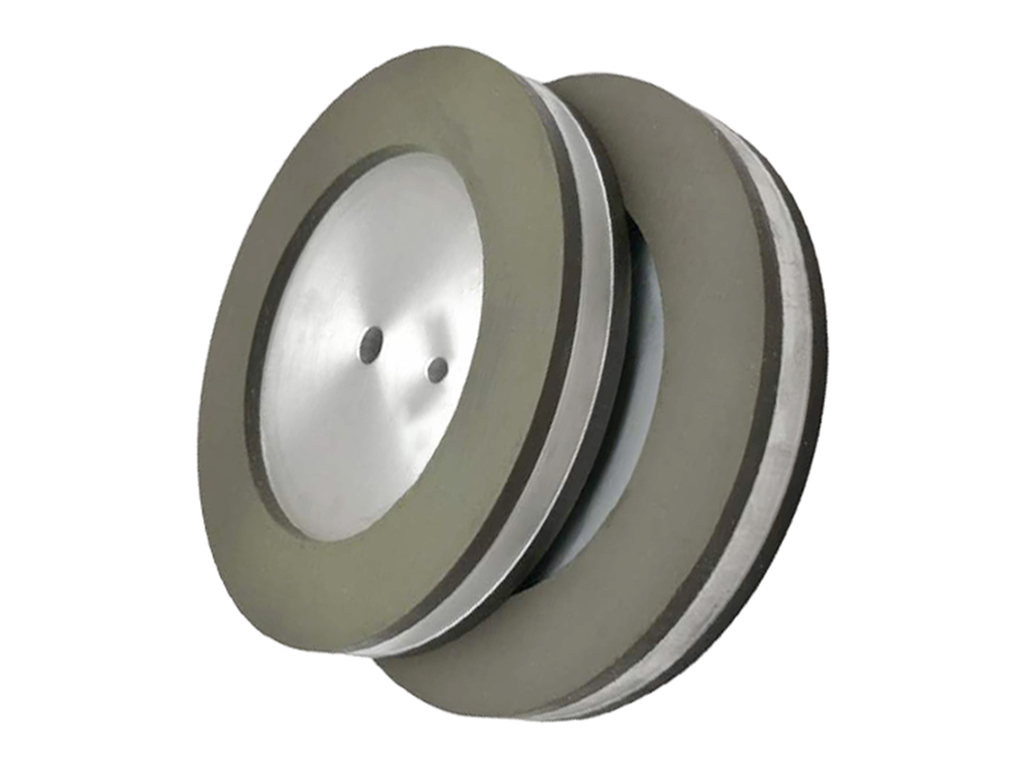

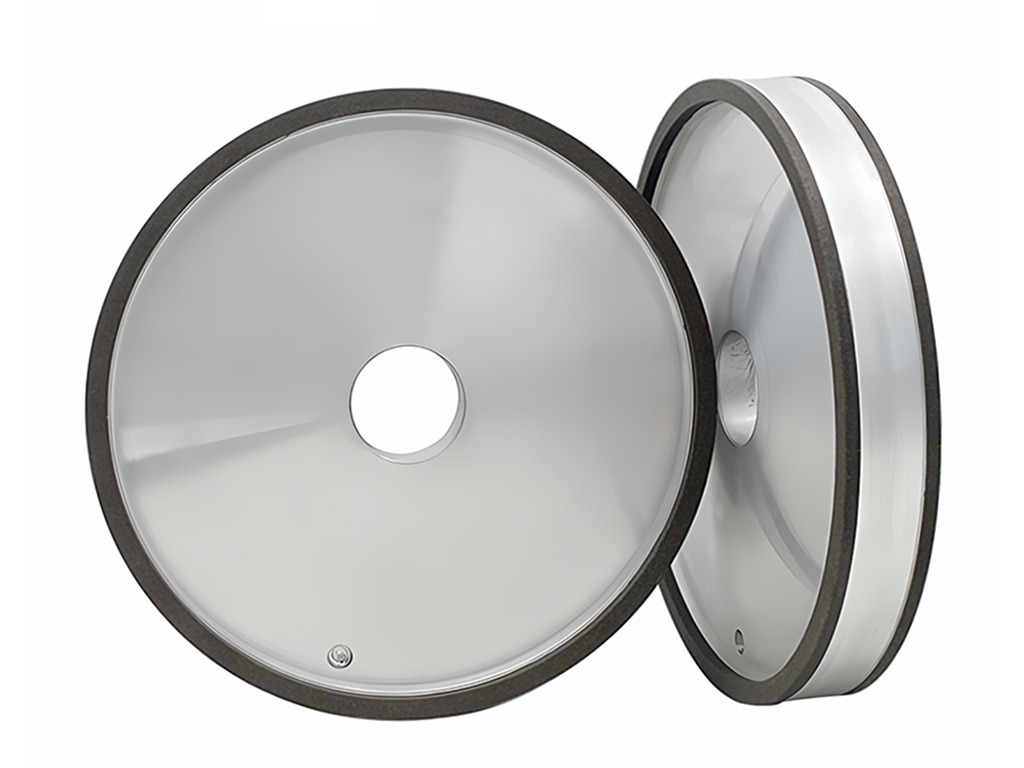

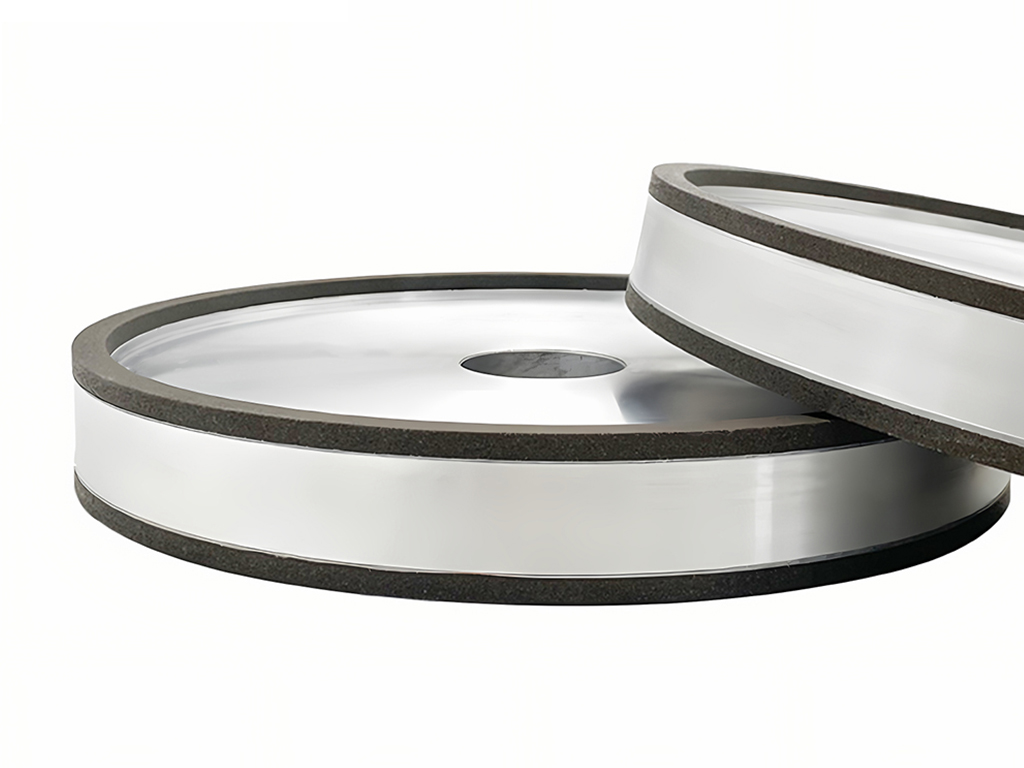

9A3 Diamond Grinding Wheel for Hard Alloyed Tools
Features:
* Super resin boning
* High efficiency and high precision
* Low roughness of work piece surface
* Durable, long service life
|
|
|
|
Parameters:
| Abrasive | Diamond |
| Bonding | Resin |
| Model | 9A3 |
| Grit | 60# -1200# |
| Popular Sizes | 4"-8" |
| MOQ | 5 piece |
|
|
Application:
Grinding Workpiece: Glass, ceramic, quarts, semi-conductors, tungsten carbide cutting tools, etc.
Applicable Tool Material: Non metallic materials, Carbon Steel.
Grinding Method: End face grinding
Applicable Grinding Machine: Double end face grinding machine
Specifications:

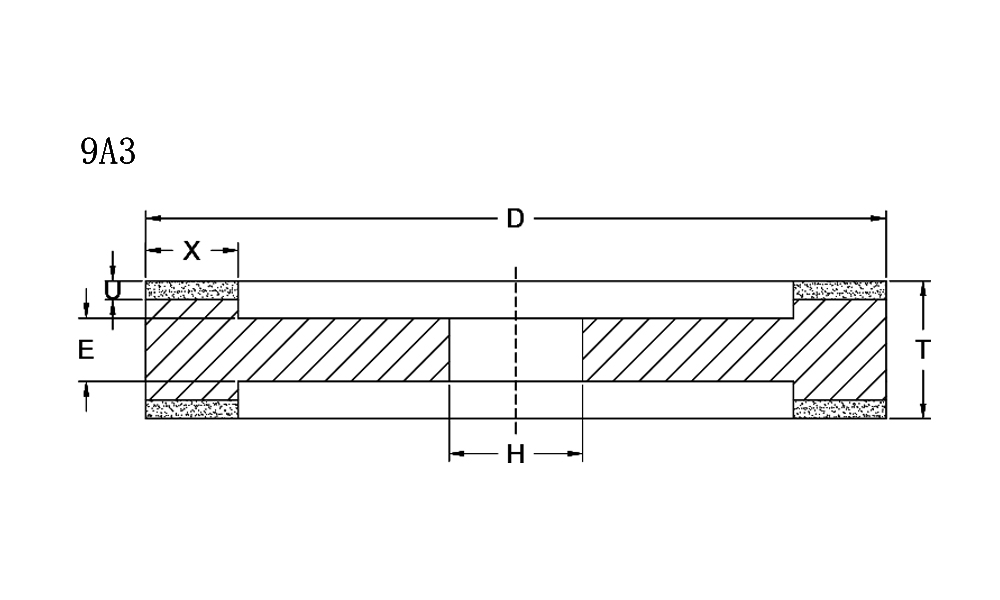

| Dimensions | |||||
| Model | D(mm) | W(mm) | T(mm) | X(mm) | |
| 9A3 | 100 | 4.5 | 22 | metal diamond wheel | resin diamond wheel |
| 6.8 | 1.5, 2.3 | 2.3 | |||
| 10 | |||||
| 125 | 4.6 | 22 | |||
| 8.1 | |||||
| 150 | 4.6 | 25.35 | |||
| 8.1 | |||||
| 12.15 | |||||
| 175 | 4.6 | 25.35 | |||
| 8.1 | |||||
| 12.15 | |||||
| 200 | 8.1 | 30.35 | |||
| 12.15 | |||||
