Bearing Grinding Wheel

REZZ provides solutions for all your bearing issues. Our product covers grinding wheels for virtually every operation needed in the production of bearings and components. Product applications covering bearing steels, exotic high alloyed steels for the aircraft industry and ceramics.



MOQ: 5pcs



Our abrasive solutions have improved the efficiency, quality and cost of manufacturing bearings. There are many types of grinding wheel applications that go into manufacturing bearings. The Centerless grinding wheel for the Outer Ring. For Balls of the bearing REZZ uses the Ball lapping wheels. The Inner Ring section of the bearing are grinded by REZZ outer dimensional and inner dimensional ceramic grinding wheels.

REZZ will provide you with system solutions for industries such as metallurgy, wind power, mining machinery, aerospace, automotive parts.



 Features:

* Efficient batch external grinding
* Sharp cutting, high production efficiency.
* High grinding accuracy, stable precision, good shape retention
*With good grinding surface quality and longer service

* The coefficient of thermal expansion of grinding is small, so it is not easy to clog

* Used for rough grinding, semi-fine grinding and fine grinding

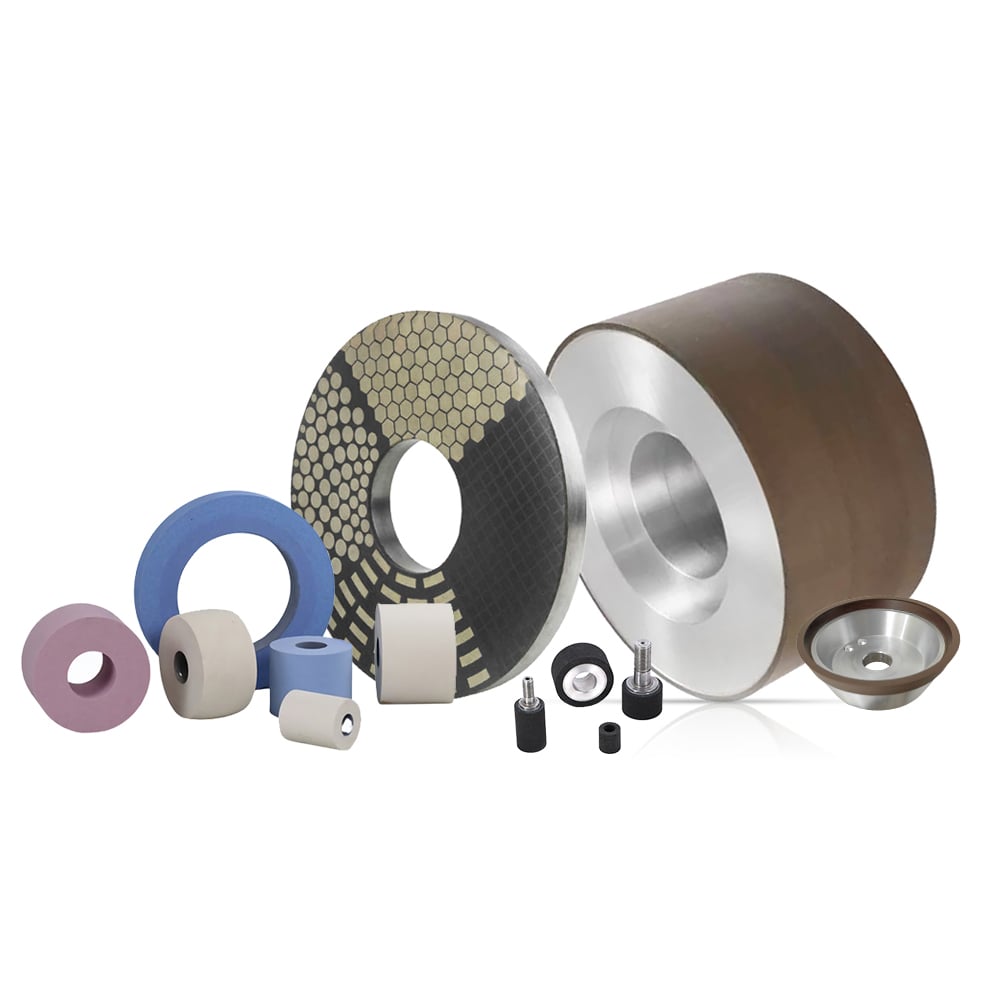

bearing grinding-1.png

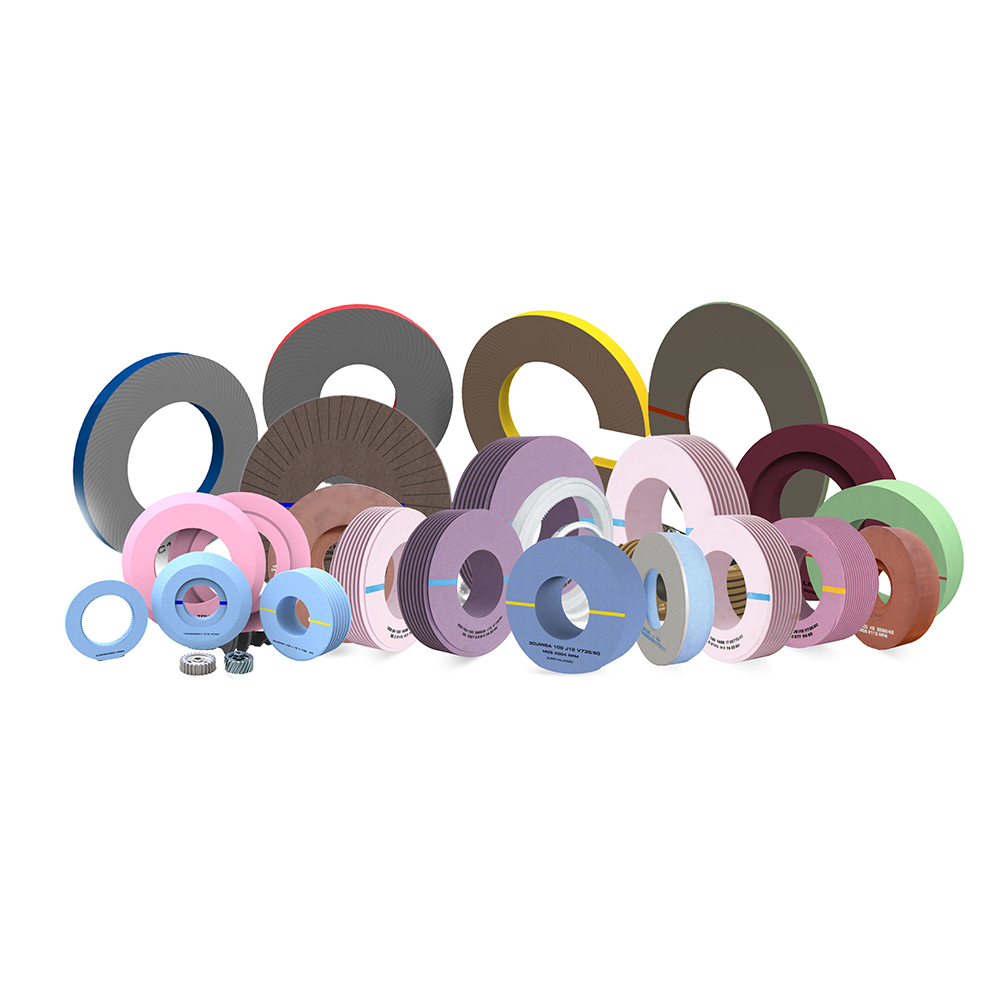

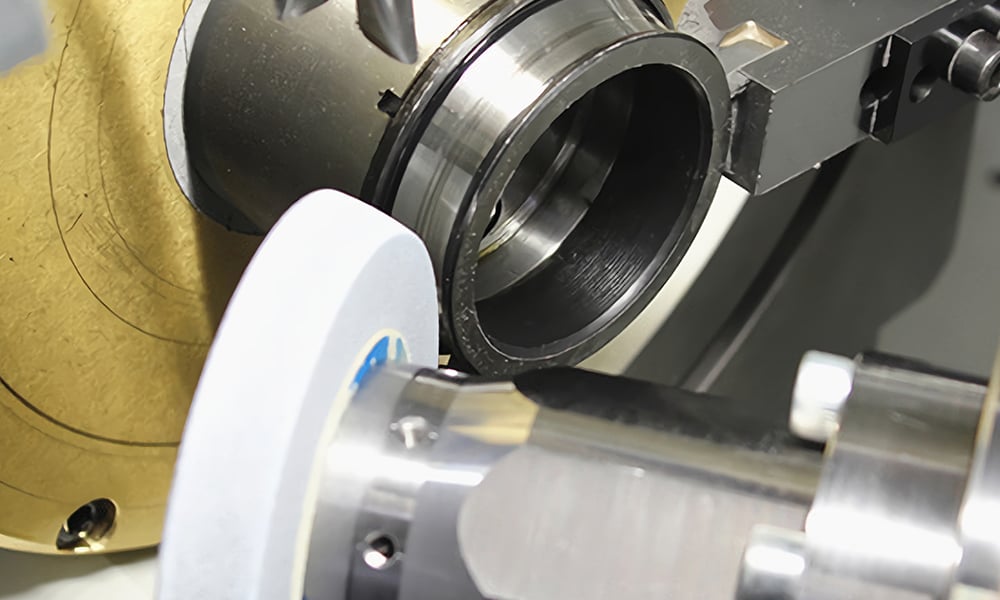

bearing grinding-2.jpg

Grinding Methods:

Abrasive
Diamond, CBN, Ordinary Abrasive
Bonding
Vitrified, Resin
Model 1A1, 1A8, 1A2, 11V9, etc
Popular Sizes 175-240mm
MOQ 5 Pieces

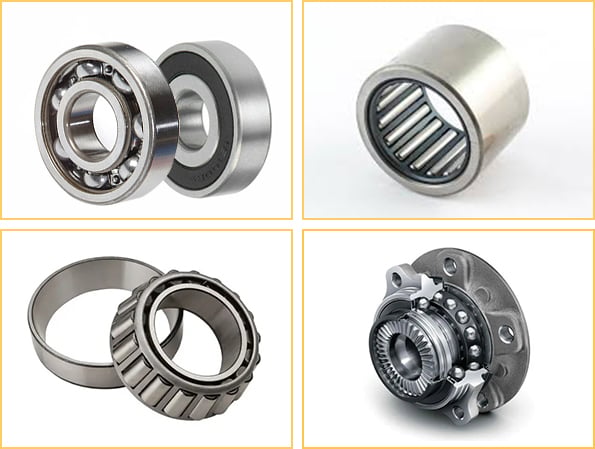

bearing grinding wheel app.jpg

 Application:

Grinding Workpiece: Ball bearing, Single Row Deep Groove Bearing, Cup needle roller bearings, Taper Roller Bearing, Car Bearing.

Applicable Tool Material: High Carbon Chromium Bearing Steel, Martensitic Stainless Steel (440C), Austenitic Stainless Steel (316), Silicon Nitride Ceramic, Tin Bronze / Aluminum Bronze

Grinding Method: Surface grinding, OD grinding, ID grinding, Internal grinding, Centerless grinding, bearing inner groove grinding, Profile grinding.

Applicable Grinding Machine: Wendt WBM, Viotoo, AMT, Stahli, Peter Wolters, Diskus, Agathon T&B, Fujisanki, Supfina, Melchiorre, Koyo, Lam Plan, Speedfam, Kemet, Gardner and other brands.

Specifications:



Dimensions
Grinding Method Model D(mm) T(mm) H(mm) W(mm) X(mm)
Surface grinding 1A2, 2A2T, 6A2B 300-1500 / / 40-350 3-10
Cylindrical grinding 1A1, 3A1, 14A1 200-900 25.4-50.8 25.4-304.8 / 12.7-20

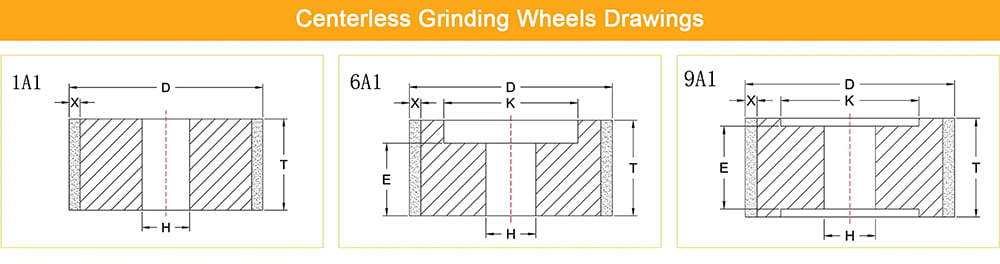

Centerless grinding 1A1, 6A1, 9A1 125-60 50-350 75-305 5-10
Internal grinding 1A1, 1A8, 1A1W 50.8-200 25.4 As required As required
Profile grinding As required
Any nonstandard size and grits can customized.(tell me size or drawing is enough)

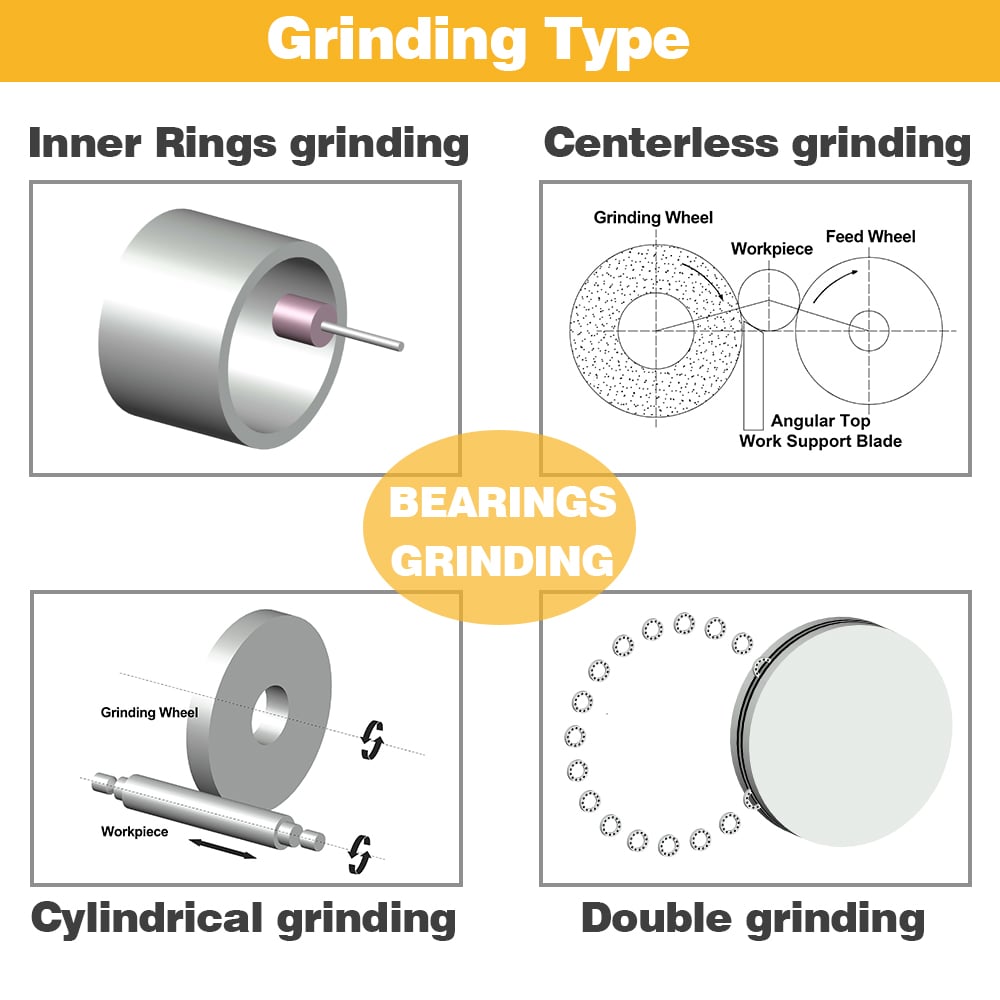

Grinding type.jpg
