1. For PCD, PCBN super-hard cutting tools grinding
2. For PCBN cutting tools grinding
3. For CVD cutting tools grinding
4. For single natural diamond tools grinding
5. For polycrystalline diamond compacts ( PDC ) grinding
6. For carbide alloy products grinding
7. For ceramic product grinding
MOQ: 5pcs

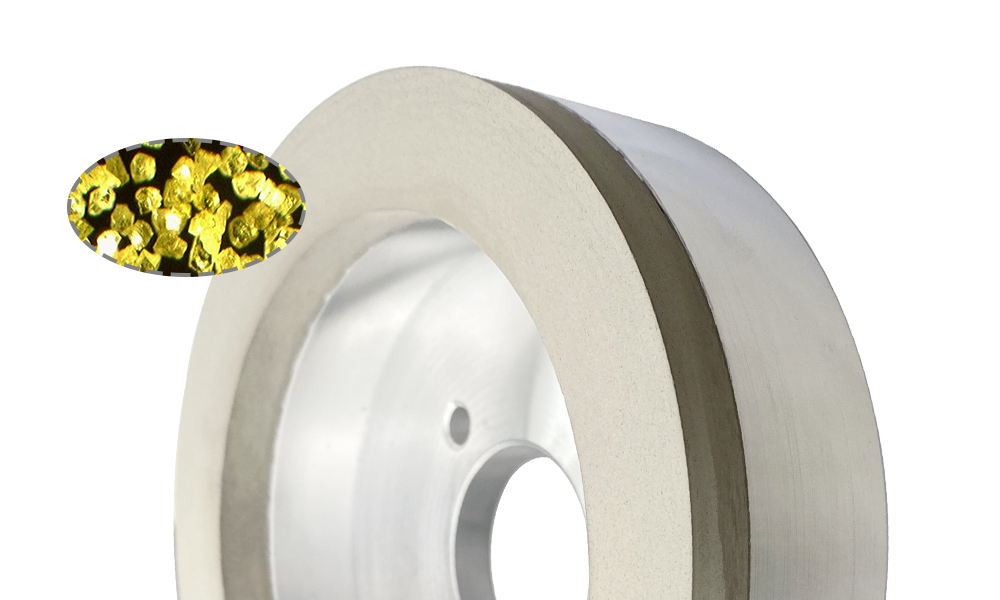

If you're precision grinding and finishing superabrasive, hardened steel or tungsten carbides, or grinding on extremely hard materials, or pursuing a high stock removing rates, you need a durable wheel that will withstand high grinding forces and perform well in offhand finishing applications.
REZZ will provide you with system solutions for industries such as vitrified bond grinding wheel PCD PCBN MCD CVD Cutting Tool & Inserts grinding, etc.
Diamond Features:
* Highest grinding efficiency
* Increase the feed rate
* No trimming tools required
* Less fever
* Excellent dynamic balance control
* It can cut superhard workpieces
|
|
Grinding Methods:
Abrasive |
Diamond |
Bonding |
Vitrified |
Model |
1A1, 6A2, 11A2,12A2 |
Grit |
400# -6000# |
Popular Sizes |
100-150mm |
MOQ |
5 piece |
|
Application:

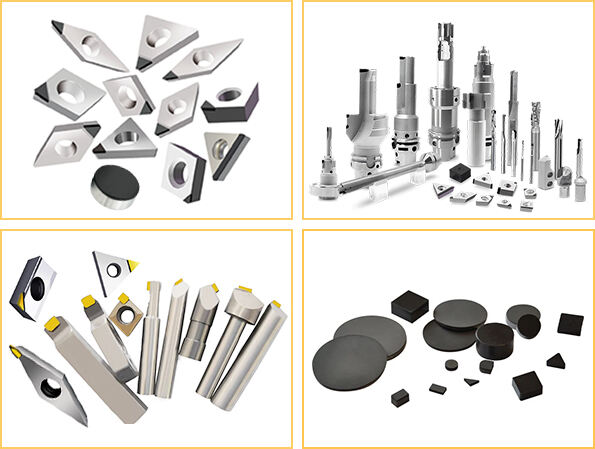

Grinding Workpiece: PCD PCBN cutting tools, CVD tools, MCD tools, carbide, ceramic cutter, milling cutter, reamer, drill and regrinding, etc.
Applicable Tool Material: PCD CBN PCBN MCD CVD and natural diamonds.
Applicable Grinding Machine: Coborn、Ewag、Anca、Farman、Mytech and others PCD grinding machine.
Specifications:
| Dimensions | |||||
| Model | D(mm) | T(mm) | H(mm) | X(mm) | W(mm) |
| 1A1, 6A2, 11A2, 12A2 | 100-150 | 20-40 | 20-40 | 3-10 | 10-20 |
| Any nonstandard size and grits can customized.(tell me size or drawing is enough) | |||||
