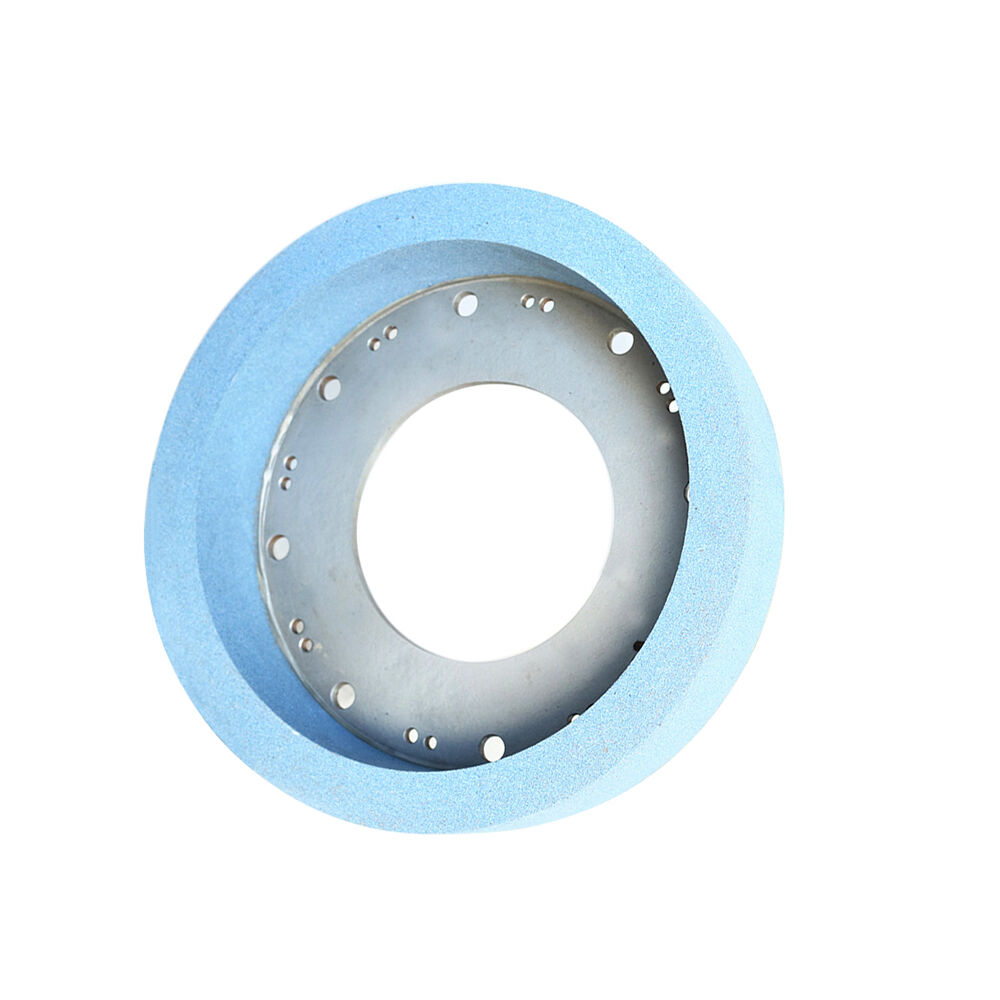

Premium vitrified-bond wheel for bevel/spiral bevel/hypoid gears. Uses MA/CBN/diamond abrasives, fits CNC grinders. Ideal for hardened alloy steel/HSS/powder metallurgy gears (automotive/aerospace/industrial). Ensures precision, optimal tooth contact, and superior finish.
MOQ: 5pcs
Features:
* Precision profile fit for bevel gear geometry
* Sharp, wear-resistant grains – no workpiece burn
* High thermal stability, dimensional consistency
* Long lifespan, low dressing downtime
* Fast removal + tight tolerance (±0.005 mm)
* Fully customizable (size/grit/bond/profile)
* Ra ≤ 0.08 μm surface finish
|
|
Grinding Methods:
| Abrasive | TG2/VTX2, NQ, 25A |
| Bonding | Vitrified |
| Grit | #46-120, Customized |
| Popular Sizes | 220-330mm |
| MOQ | 5 Pieces |
|

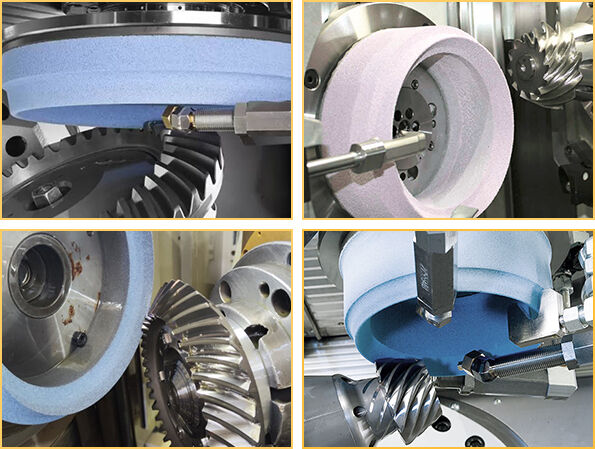

Application:

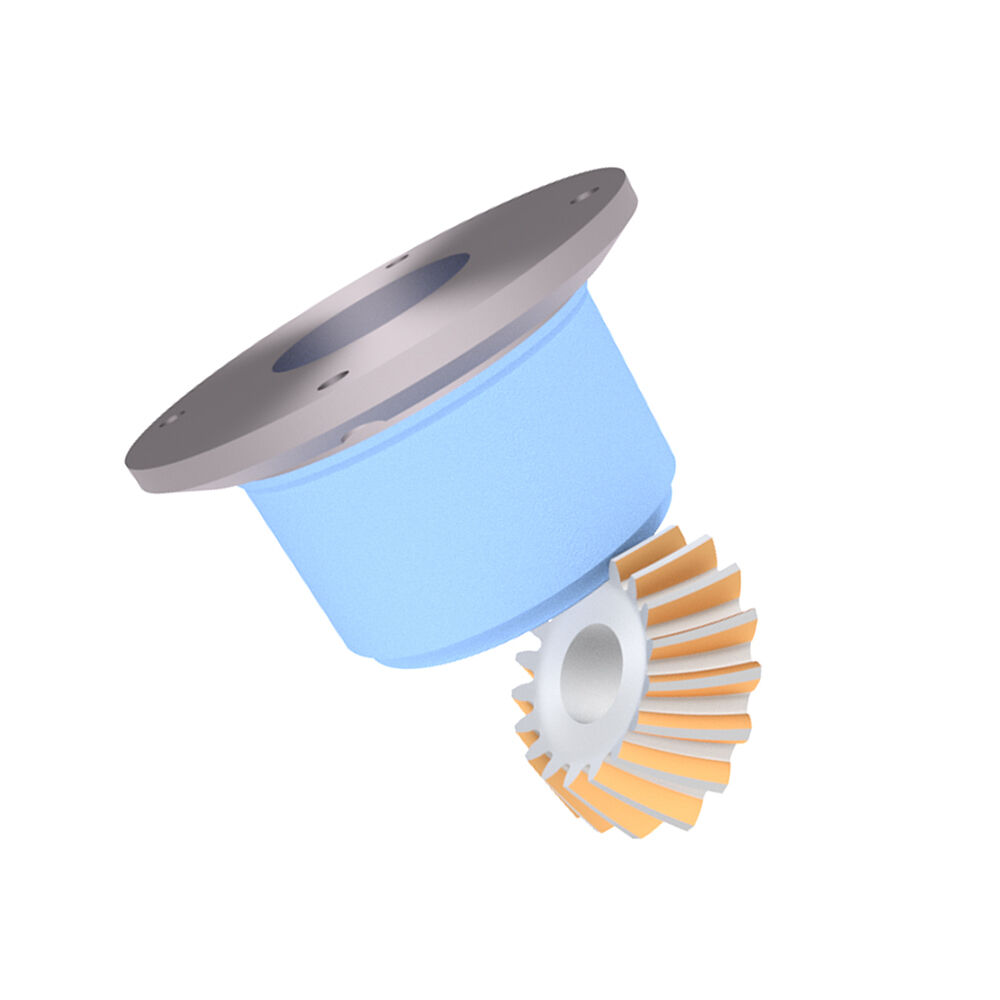

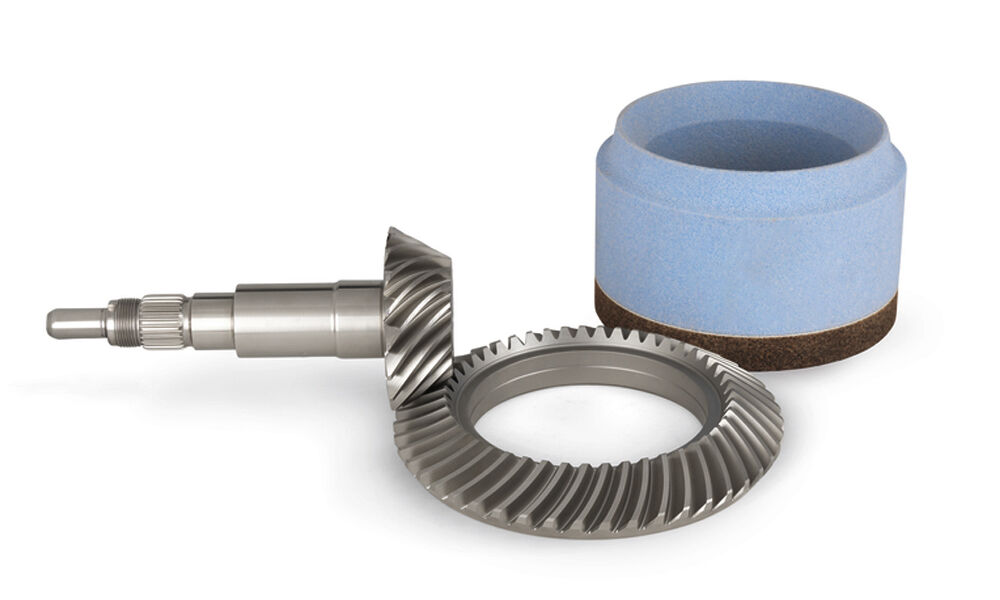

Grinding Workpiece: Bevel gear, Spiral bevel gears, Hypoid gears, Bevel gear shafts, Precision bevel gear components
Applicable Tool Material: Carbon steel materials, alloy steel materials, High-speed steel, Bearing steel, etc.
Grinding Method: Profile grinding, Plunge Grinding, Generating Grinding
Applicable Grinding Machine: Kapp Niles, Liebherr, Klingelberg, Gleason, Samputensili, Mitsubishi and others.
Specifications:
| Conventional Abrasives | TG2/VTX2：This technology powerhouse delivers highest metal removal rates in the industry with the newest and longest-shaped ceramic grains. | |||
| NQ：A new micro-structured ceramic grain designed to provide extended wheel life. These wheels provide a slightly lower material removal rate with a superior surface finish. | ||||
| 25A：This premium aluminum oxide option provides a good value for cost conscious production and older machines. | ||||

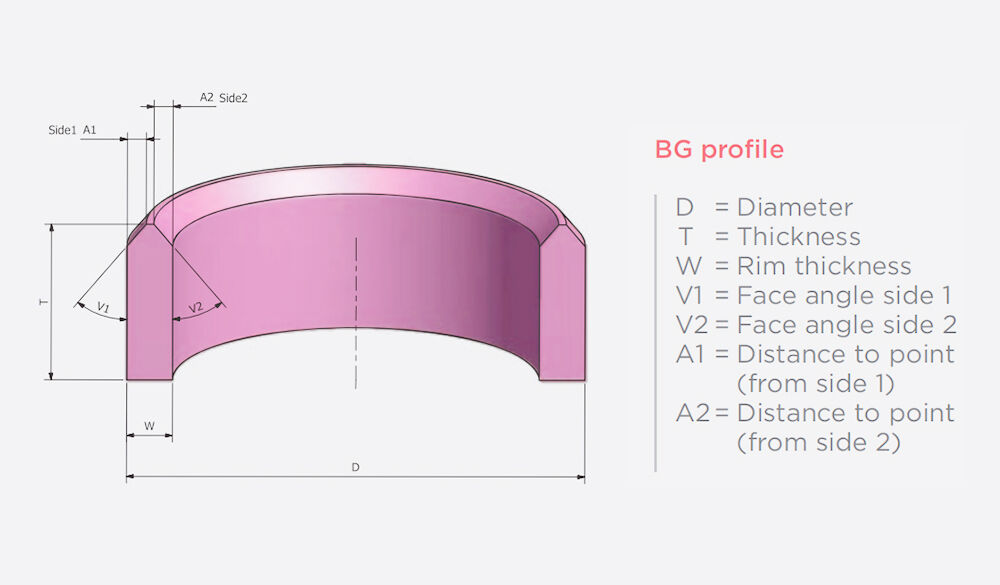

| Size (mm) | 220*95*170,260*110*200,330*98*193,customized | |||
| Grit | 46-120,customized | |||
