Super abrasive diamond and CBN tools are suitable for surface grinding, OD grinding, centerless grinding, internal grinding, tool grinding, cylindrical grinding and etc.
Advantage:
* High temperature resistance
* Better chemcial stability
* High efficiency and high precision
MOQ: 5pcs

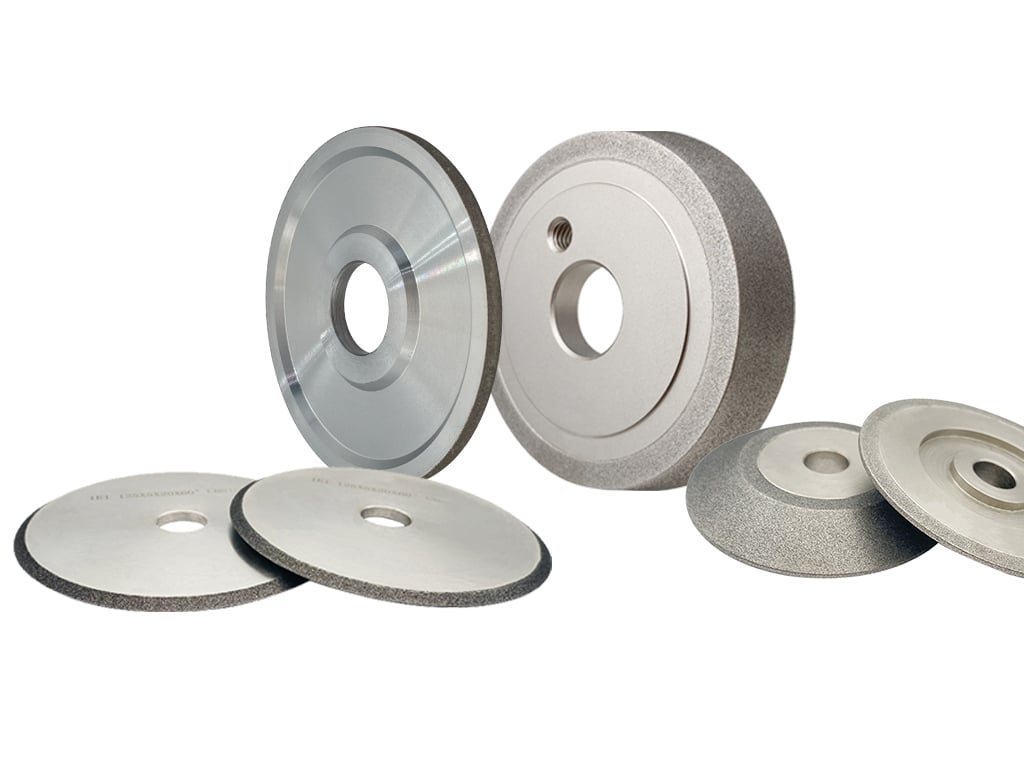

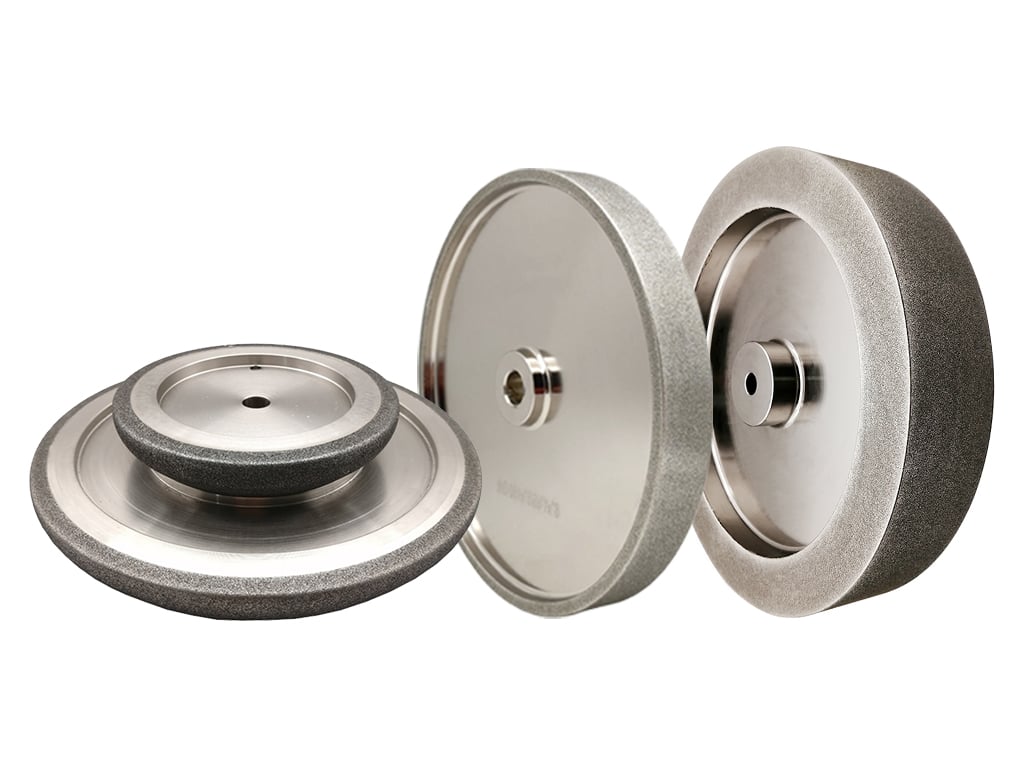

The CBN grinding wheel we produce, although slightly lower in hardness than diamond, performs far better than diamond in all aspects when processing steel, especially hardened steel exceeding HRC40.
REZZ will provide you with system solutions for industries such as Tool Steel Grinding, High Steel Grinding, Bearing Steel Grinding, Cast iron Grinding, etc.
Diamond Features:
* High temperature resistance
* Better chemcial stability
* High efficiency and high precision
* used to grind ferrous materials
* for grinding steel materials
|
|

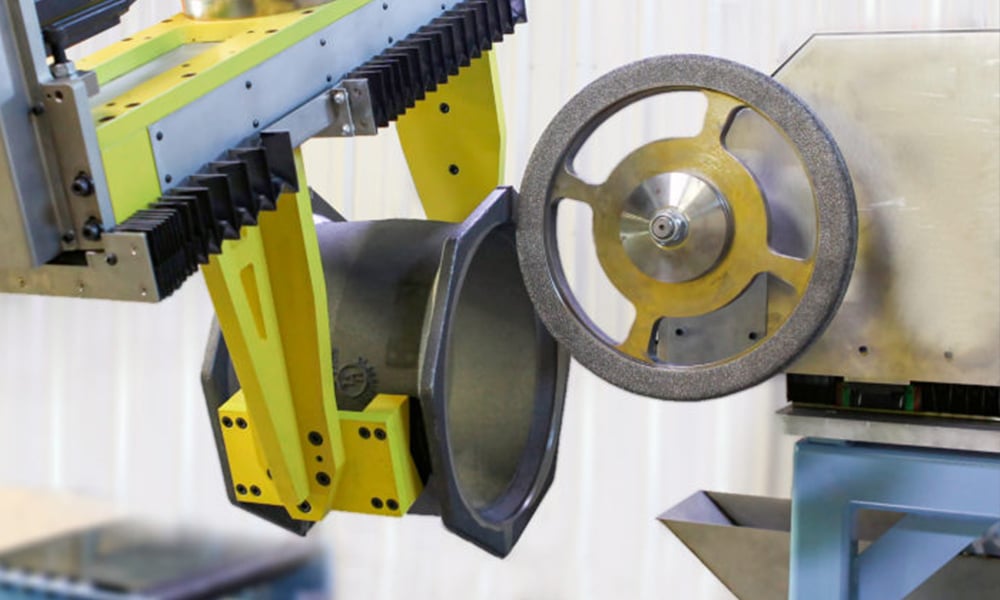

Grinding Methods:
| 1 | Cylindrical Grinding |
| 2 | Surface Grinding |
| 3 | Centerless Grinding |
| 4 | ID Grinding |
| 5 | Profile Grinding |
| 6 | Cutting |
|
Application:

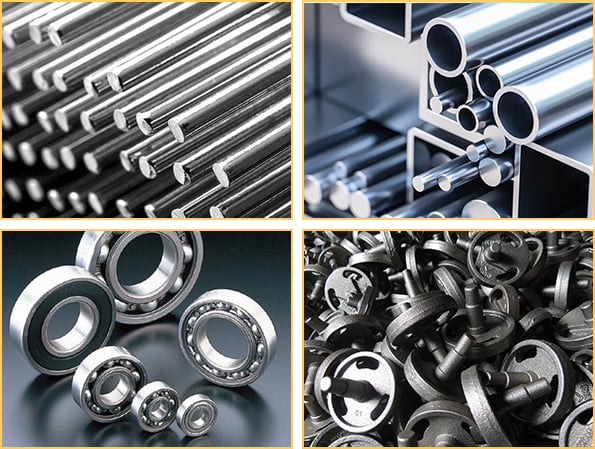

Grinding Workpiece: tool steel, high speed steel, bearing steel, tungsten steel, steel, spring steel, tungsten, high-alloy steel, cast iron, etc.
Applicable Tool Material: tool steel materials, bearing steel materials, tungsten steel materials, spring steel materials, etc.
Applicable Grinding Machine: Cylindrical Grinding Machine, Surface Grinding Machine, Centerless Grinding Machines, ID Grinding Machine, Profile Grinding Machine, Bench & Pedestal Grinder, Tool & Cutter Grinding Machine, Saw Blade Grinding Machines, Cultery Grinding Machines.

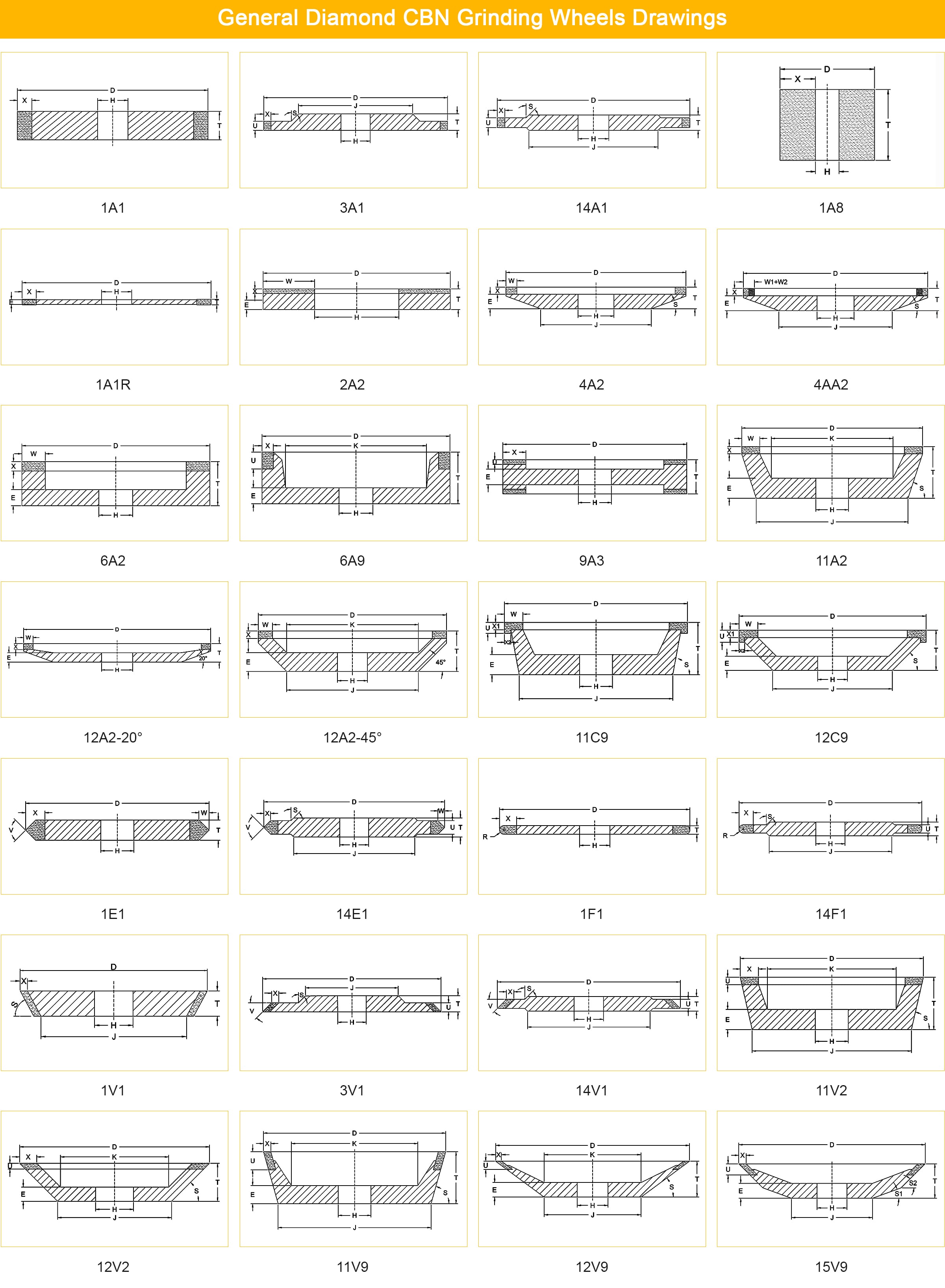

Specifications:
| Dimensions | |||||||
| D | T | H | X | W | Grit | ||
| (mm) | Inch″ | (mm) | Inch″ | ||||
| 50-1000 | 2″-39.5″ | 2-50.8 | 0.08-2″ | TO YOUR REQUEST | 2-38mm | 2-30mm | customized |
| Any nonstandard size and grits can customized.(tell me size or drawing is enough) | |||||||
FAQ:
Q1. What materials are suitable for CBN grinding wheels?
CBN grinding wheels are mainly used for hardened steel, HSS, tool steel, bearing steel, alloy steel, and other ferrous metals above HRC45.
Q2. What is the difference between CBN and diamond grinding wheels?
CBN wheels are better for grinding ferrous metals, while diamond wheels are mainly used for carbide and non-metal materials. CBN offers better thermal stability when grinding steel.
Q3. How do I choose the right grit size?
• 80#–120#: Fast stock removal
• 150#–240#: General grinding
• 320# and finer: Precision finishing
Q4. Which bond type should I choose?
• Resin bond: Economical and sharp cutting
• Vitrified bond: High precision and long life
• Electroplated bond: Complex profiles and fast grinding
• Metal bond: Heavy-duty applications
Q5. Can CBN wheels be used for wet and dry grinding?
Yes. Most CBN wheels support both wet and dry grinding, but coolant is recommended for better wheel life and surface finish.
Q6. Do CBN wheels need dressing?
Most electroplated CBN wheels do not require dressing. Vitrified CBN wheels may require occasional dressing for precision grinding.
Q7. Why is my CBN wheel loading or clogging?
This usually happens when grinding soft metals or using incorrect grinding parameters. CBN wheels are mainly designed for hardened steel applications.
Q8. Can you customize CBN grinding wheels?
Yes. Custom sizes, profiles, arbor holes, grit sizes, and bond types are available according to customer drawings or applications.
