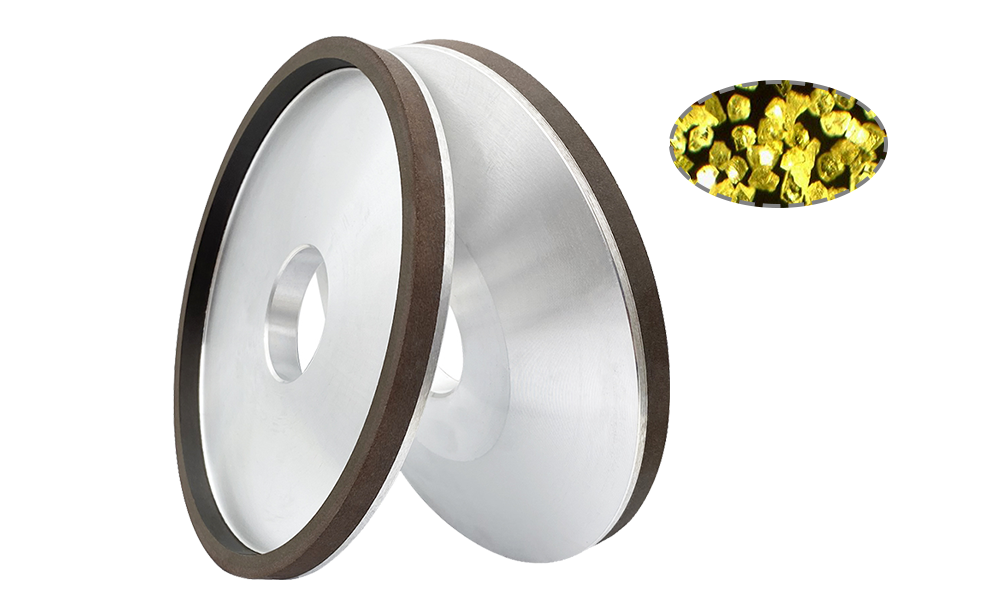

Resin bond diamond grinding wheels are mainly used in the field of TCT circular saw blade grinding. It can perform well in end face grinding, top grinding, side grinding, tooth grinding, tungsten carbide hard alloy tip grinding and steel body grinding.
TOP Grinding：6AA2、12A2、4A2、6AA9;
Face Grinding：12V9、12V2、15V9、12A2、4A2;
Side Grinding：1A1、3A1、14A1、6A2、6A9
MOQ: 5 pieces
Our circular saw blade grinding wheels are produced with resin bond and are available in diamond and CBN materials. Grinding wheels come in various shapes, such as flat grinding wheels, bowl-shaped grinding wheels, cylindrical grinding wheels, etc.
REZZ will provide you with system solutions for industry such as Sharpening Circular Carbide Saw Blades.
Features:
* Good self-sharpening and sharp cutting
* High efficiency and high precision
* High resistence and best polishing
* Low roughness of work piece surface
* Less heat generating
* Without burning work piece
|
|
Parameters:
| Abrasive | Diamond |
| Bonding | Resin |
| Model | 4A2, 11V9, 12V9, etc. |
| Popular Sizes | 50-200mm |
| MOQ | 5 piece |
|
Application:

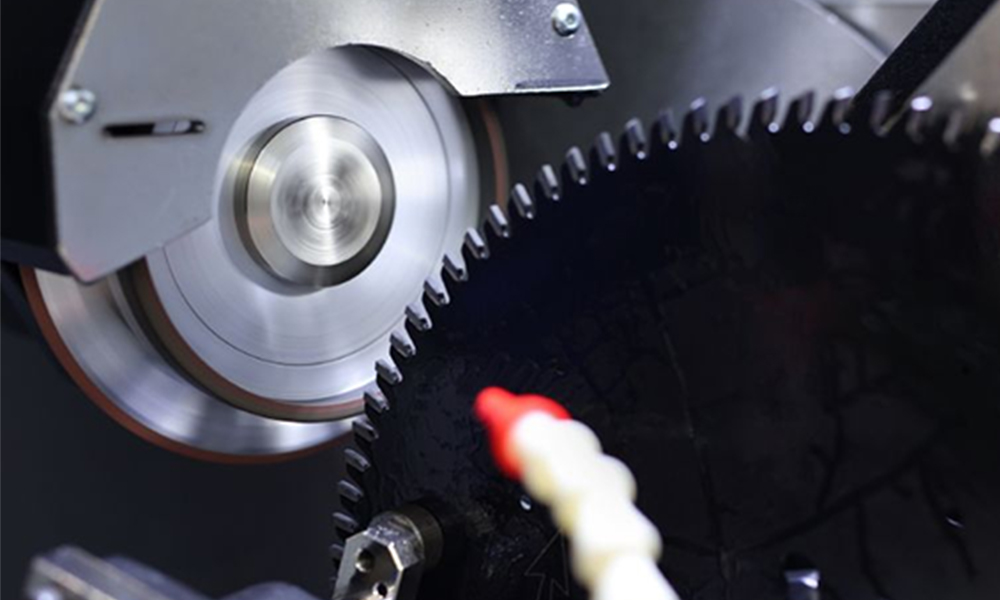

Grinding Workpiece: TCT circular saw blade, carbide saw blade
Applicable Tool Material: Tungsten carbide hard alloy tip
Grinding Method: Face grinding, Top grinding, Side grinding.
Applicable Grinding Machine: Wright, Vollmer, ABM, Colonial Saw, Armstrong, Amada, Jones Saw Tools, Baileigh Industrial, Foley Belsaw, Thorvie, Bell, Acme, Autool, Nelson, JEFFER, EYAN, Walter, UTMA ,Widma, AKE, STEHLE, SATURN.
Saw Blade Applicable: Simonds, FREUD, FS TOOL, TENRYU, THURSTON MFG.
Specifications:

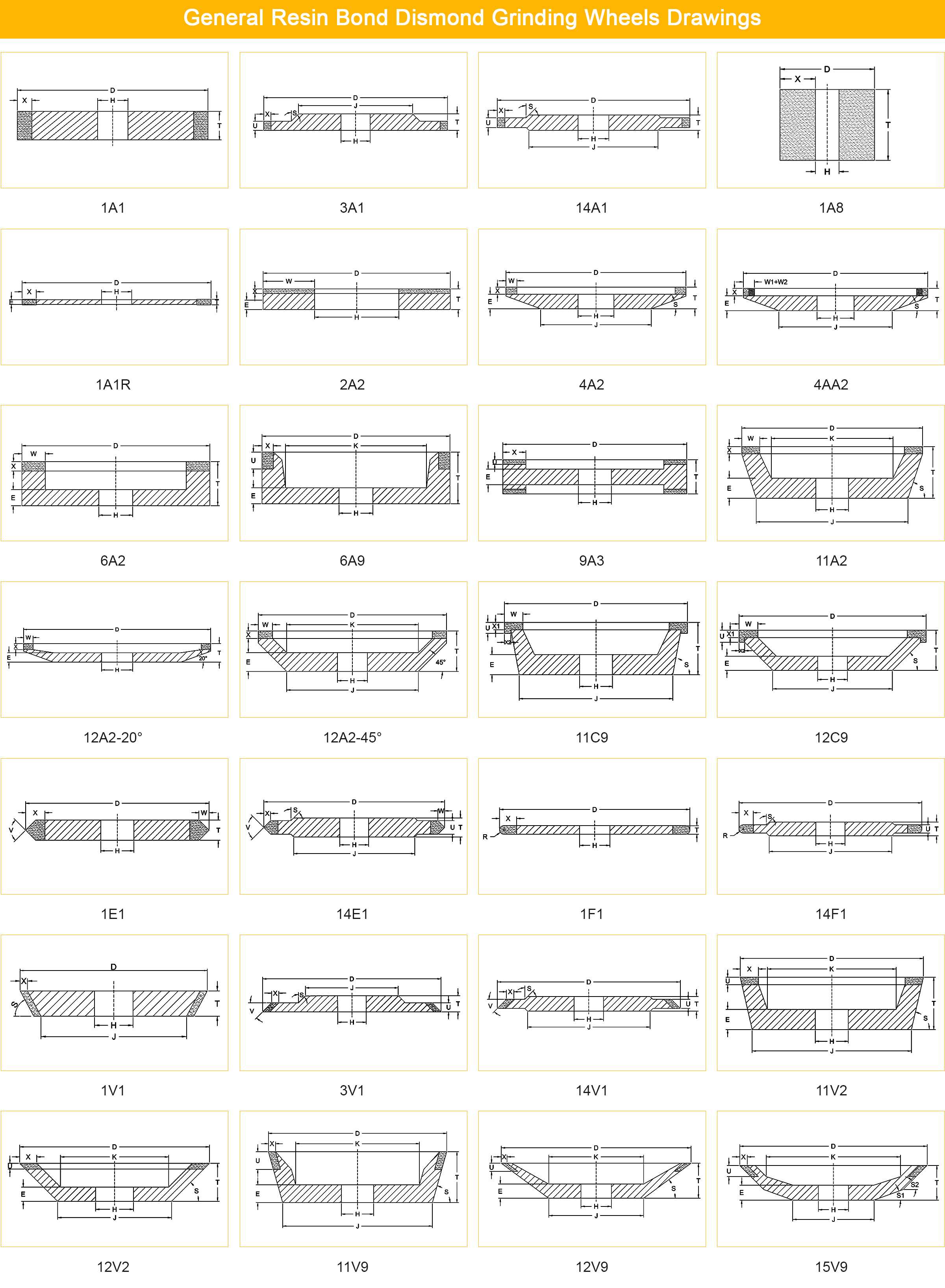

| Dimensions | |||||
| Shape | D(mm) | T(mm) | H(mm) | X(mm) | W(mm) |
| 4A2, 6A2, 11A2, 12A2, 12V2, 11V2, 11V9, 12V9, 15V9, 3A1, 14A1, 3V1, 4TB9 |
50-200 | 25-40 | 16, 20, 31.75, 32 | 2-6 | 3-10 |
| Any nonstandard size and grits can customized.(tell me size or drawing is enough) | |||||
