Hybrid Bond Diamond Grinding Wheels for Endmills Drill Bits

Hybrid Bond Diamond Grinding Wheels for Endmills Drill Bits

For solid carbide or hss tools fulting, gashing or OD grinding on CNC grinding machines, it always needs a super quality diamond cbn grinding wheels. REZZ develops G-Power Diamond CBN grinding wheels for this industry.

Features:

* High Profile Retention Ability
* Sharp & Fast Grinding
* Excellent Surface Finishes
* High Productivity

MOQ: 5pcs

Download

Description

hybrid bond diamond grinding wheels for endmills drill bits-1

+86-13938485694

[email protected]

Description

REZZ provides a line of solution and services for ultra performance tools grinding on CNC machines.Our services include fluting, gashing clear edge and relief angle, OD grinding of the tungsten carbide, HSS, milling cutter, reamer and drill, etc.

Features:

* High Profile Retention Ability
* Sharp & Fast Grinding
* Excellent Surface Finishes
* Less Dressing
* High Productivity

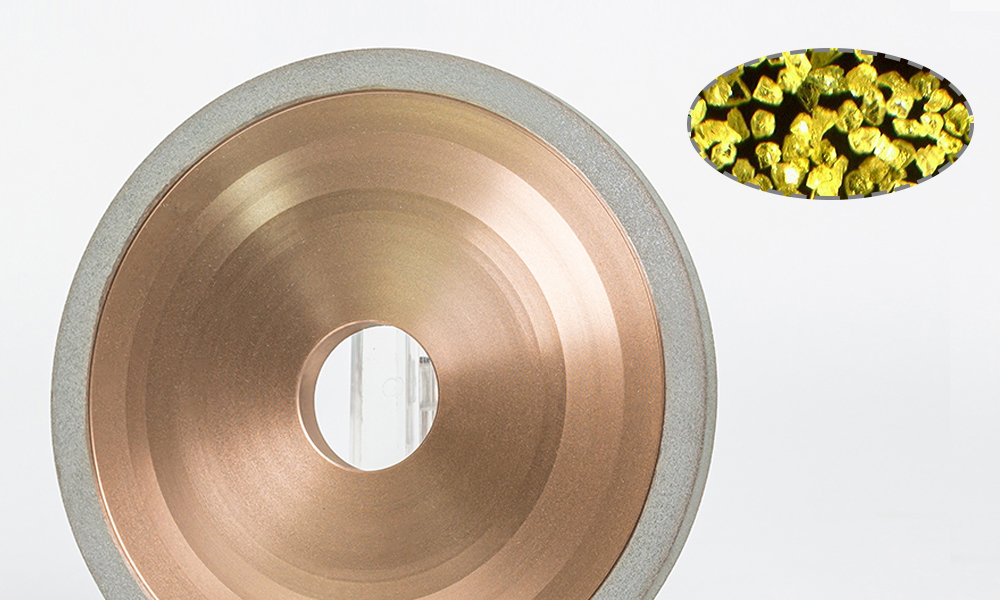

hybrid bond(28dd15bc7f).jpg

metalworking tool grinding-1.jpg

Grinding Methods:

1	Cylindrical Grinding
2	Sharpening
3	Fluting
4	Gashing clear edge
5	Relief angle
6	OD Grinding


Application:

Grinding Workpiece: Solid carbide, Metal cutting tools,

HSS Round tools & inserts, like endmills, drills, milling tools and other.

Applicable Tool Material: tungsten carbide HSS steel materials, etc.

Applicable Grinding Machine: CNC Cutting Tool Grinding Machines, CNC full automatic 5 Axis.

Applicable Machine Brand: ANCA, Walter, SCHUTTE, EWAG,

SCHNEEBERGER, HUFFMANN And So On.

Specifications:

Parameters
Bond	Resin / Hybrid	Grinding Method	Sharpening Fluting Gashing Cylindrical Grinding
Wheel Shape	1A1, 1V1, 11V9, 11A2, 12V9, 12A2, 1A1R	Workpiece	Metal Cutting Tools
Wheel Diameter	75, 100, 125, 150, 200mm	Workpiece Materials	Tungsten Carbide/HSS Steel
Abrasive Type	SD, SDC, CBN	Industry	Metalworking
Grit	80/100/120/150/180/220/240/280/320/400	Suitable Grinding Machine	CNC Cutting Tool Grinding Machines
Concentration	100, 125, 150	Manual or CNC	CNC Full Automatic 5 Axis
Wet & Dry Grinding	Dry & Wet	Machine Brand	Walter, Star, Vollmer, SELLI
