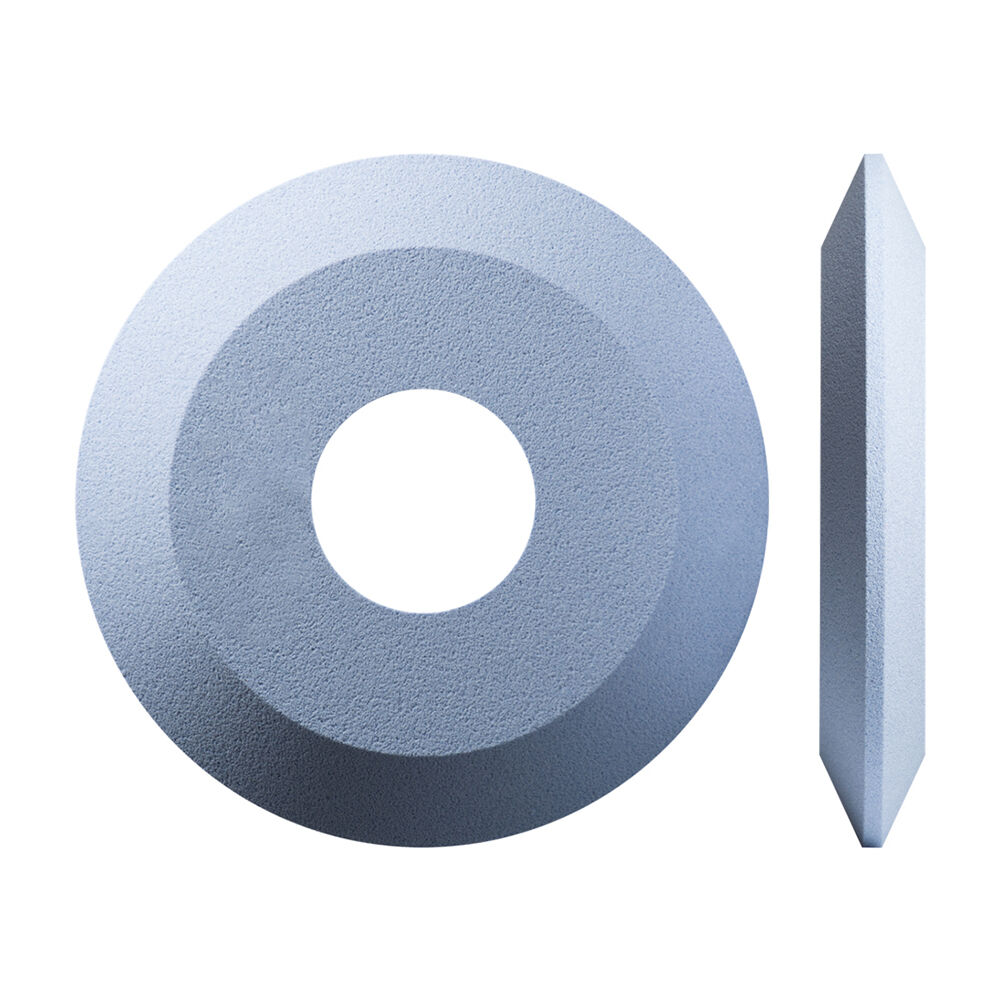

REZZ Single Rib Gear Grinding Wheels are vitrified bonded precision abrasive wheels specially engineered for spur gear, helical gear, spline and gear shaft profile grinding. Adopted high-performance microcrystalline ceramic abrasive grains and high-strength vitrified bond, the single rib design features accurate tooth profile geometry, excellent rigidity and high-speed stability. It perfectly matches CNC gear grinding machines for finish grinding of hardened steel, alloy steel and carburized gear parts, widely used in automotive, motorcycle, reducer and transmission gear manufacturing.
MOQ: 5pcs

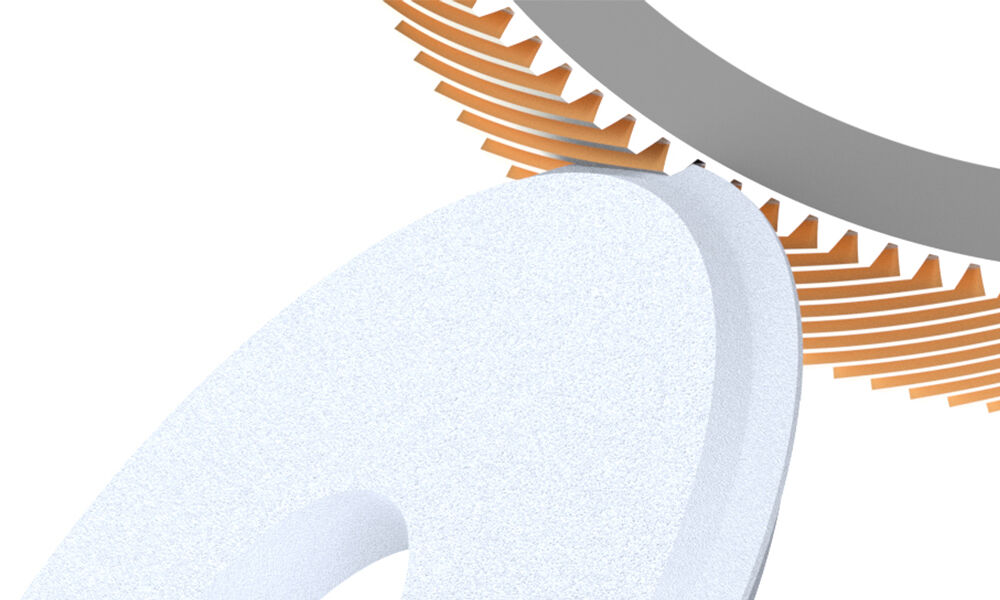

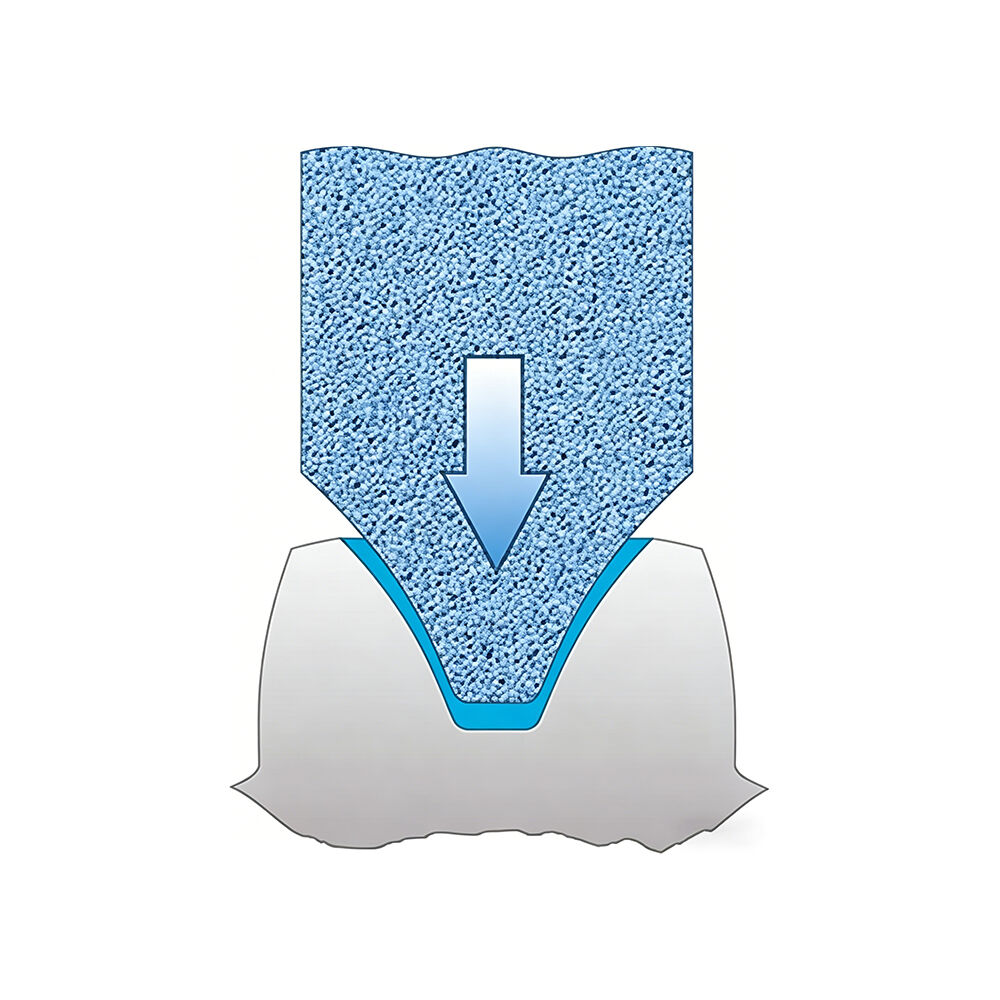

Gear profile grinding is a discontinuous grinding process. Contrary to generation grinding, in profile grinding gap by gap is machined. The grinding wheel profile is absolutely identical with the finished gear profile. The Innovative technology by ruizuan using high-performance ceramic abrasives with the newdeveloped bonding system was especially designed for the Single Rib Grinding application.The Single Rib Gear Grinding uses a flexible technique where each tooth flank is ground individually.
REZZ will provide you with system solutions for industries such as Single Rib Gear Grinding.
Features:
* Precise Single Rib Profile, high form retention, keeps accurate
gear tooth profile without frequent dressing.
* Excellent self-sharpening performance, sharp cutting edge,
low grinding force and no workpiece burning.
* High thermal stability and structural strength, suitable for
high-speed gear grinding with long service life.
* Superb surface finish and high dimensional accuracy,
meets strict gear tolerance and roughness requirements.
* Low wear rate and long dressing cycle, reduces production
downtime and lowers overall processing cost.
|
|
Grinding Methods:
| Abrasive | SG |
| Bonding | Vitrified |
| Grit | Customized |
| Popular Sizes | 80-508mm |
| MOQ | 5 Pieces |
|
Application:
Grinding Workpiece: Single rib gear, Spur gears, Helical gears, Spline shafts, Gear shafts, etc.
Applicable Tool Material: Carbon steel materials, alloy steel materials, etc.
Grinding Method: Profile grinding

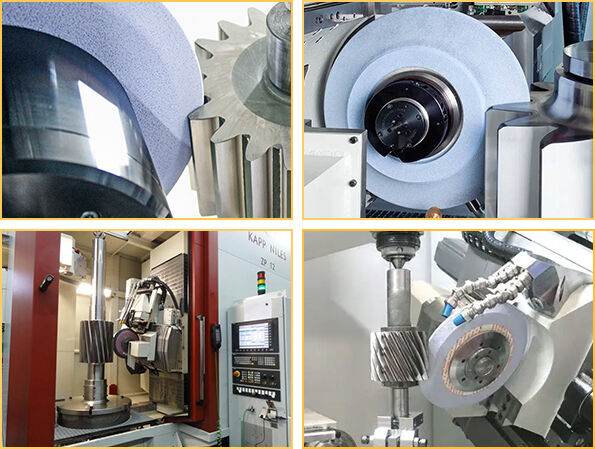

Applicable Grinding Machine: Kapp Niles, Liebherr, Klingelberg, Gleason, Samputensili, Mitsubishi and others.

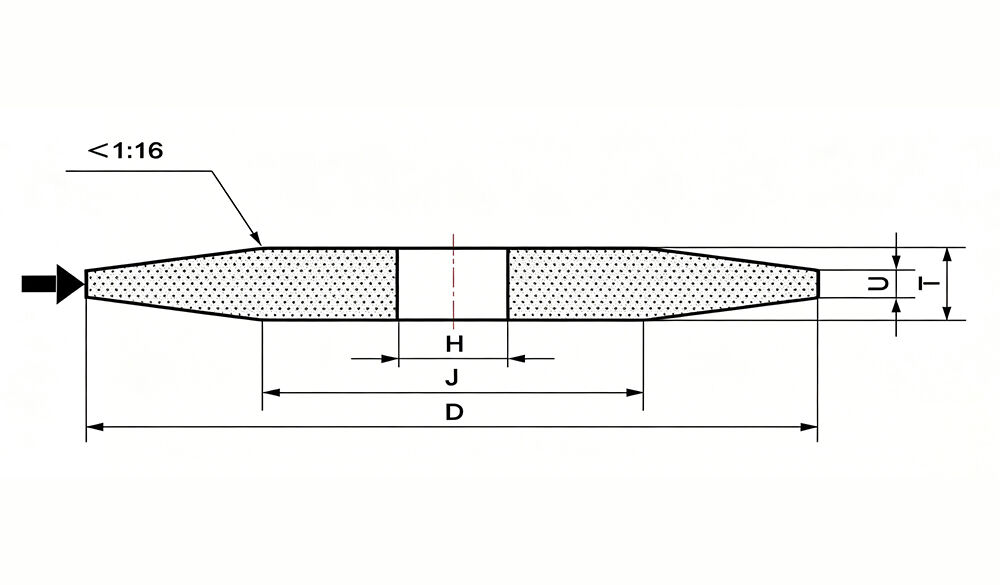

Specifications:
| Abrasive Used | CUMI Code | Grit Range | Diameter | Thickness | Speed | Hardness | Structure | ||
| mm | inch | mm | inch | mps | |||||
| Ceramic Aluminium Oxide | CUMISA | 46-120 | 80-508 | 31/4-201 | 10-150 | 2003/8/6 | 35&50 | G-J | 8-15 |
| Sharp crystal Aluminium Oxide | 71HA | ||||||||
| Sharp Aluminium Oxide blend | 55A | ||||||||
| Pink Aluminium Oxide | RAA | ||||||||
| Customizable size, grit, thickness and tooth profile to fit different gear grinding machine models and workpiece specs. | |||||||||
