REZZ provides solutions for all your bearing issues. Our product covers grinding wheels for virtually every operation needed in the production of bearings and components. Product applications covering bearing steels, exotic high alloyed steels for the aircraft industry and ceramics.
MOQ: 5pcs
Features:
* Efficient batch external grinding
* Sharp cutting, high production efficiency.
* High grinding accuracy, stable precision, good shape retention
*With good grinding surface quality and longer service
* The coefficient of thermal expansion of grinding is small, so it is not easy to clog
* Bearings groove grinding
|
|
Grinding Methods:
| Abrasive | Diamond, CBN |
| Bonding | Resin |
| Model | 11V9 |
| Popular Sizes | 50-200mm |
| MOQ | 5 Pieces |
|
Application:

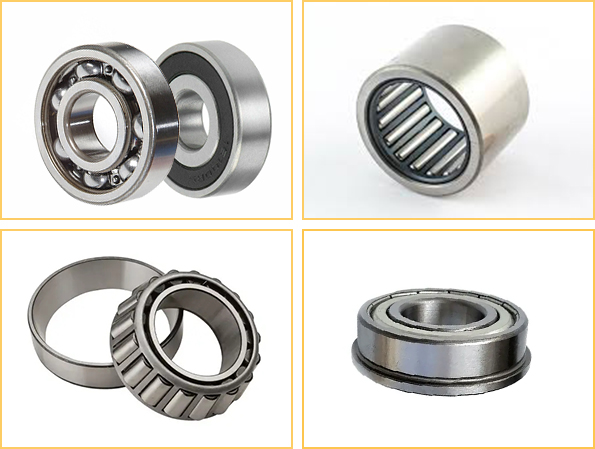

Grinding Workpiece: Bearing rib for Ball bearing, Single Row Deep Groove Bearing, Cup needle roller bearings, Taper Roller Bearing, Car Bearing.
Applicable Tool Material: High Carbon Chromium Bearing Steel, Martensitic Stainless Steel (440C), Austenitic Stainless Steel (316), Silicon Nitride Ceramic, Tin Bronze / Aluminum Bronze
Grinding Method: Bearing groove grinding
Applicable Grinding Machine: Wendt WBM, Viotoo, AMT, Stahli, Peter Wolters, Diskus, Agathon T&B, Fujisanki, Supfina, Melchiorre, Koyo, Lam Plan, Speedfam, Kemet, Gardner and other brands.

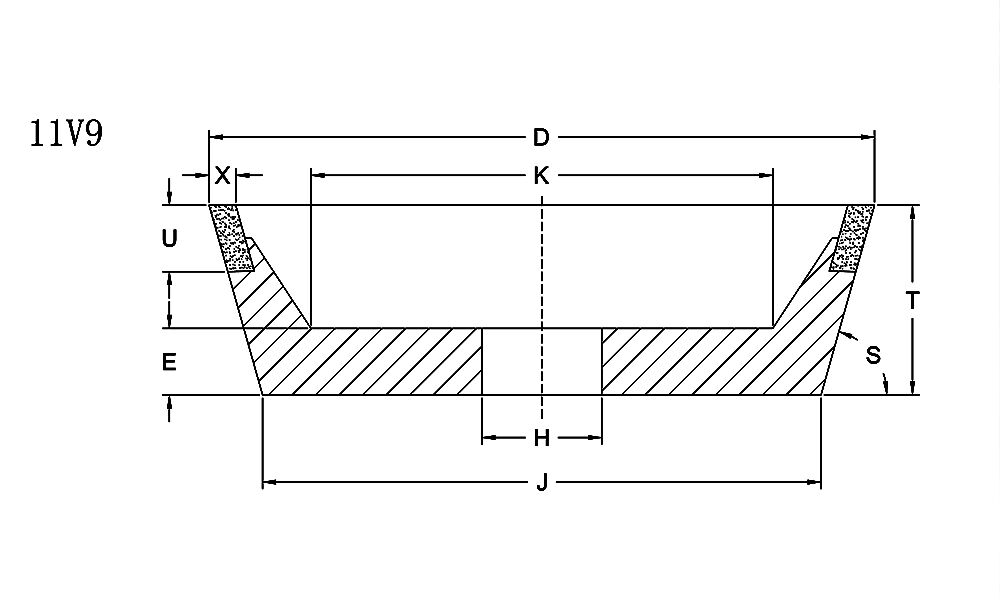

Specifications:
| Dimensions | |||||
| Shape | D(mm) | T(mm) | H(mm) | X(mm) | W(mm) |
| 11V9 | 50-200 | 25-40 | 16, 20, 31.75, 32 | 2-6 | 3-10 |
| Any nonstandard size and grits can customized.(tell me size or drawing is enough) | |||||
