Oil & Gas Industry

oil & gas grinding wheels include – Vitrifed / Resin Bond Diamond Grinding Wheel for Cylindrical & Surface Grinding – Centerless Grinding – ID(Internal) Grinding

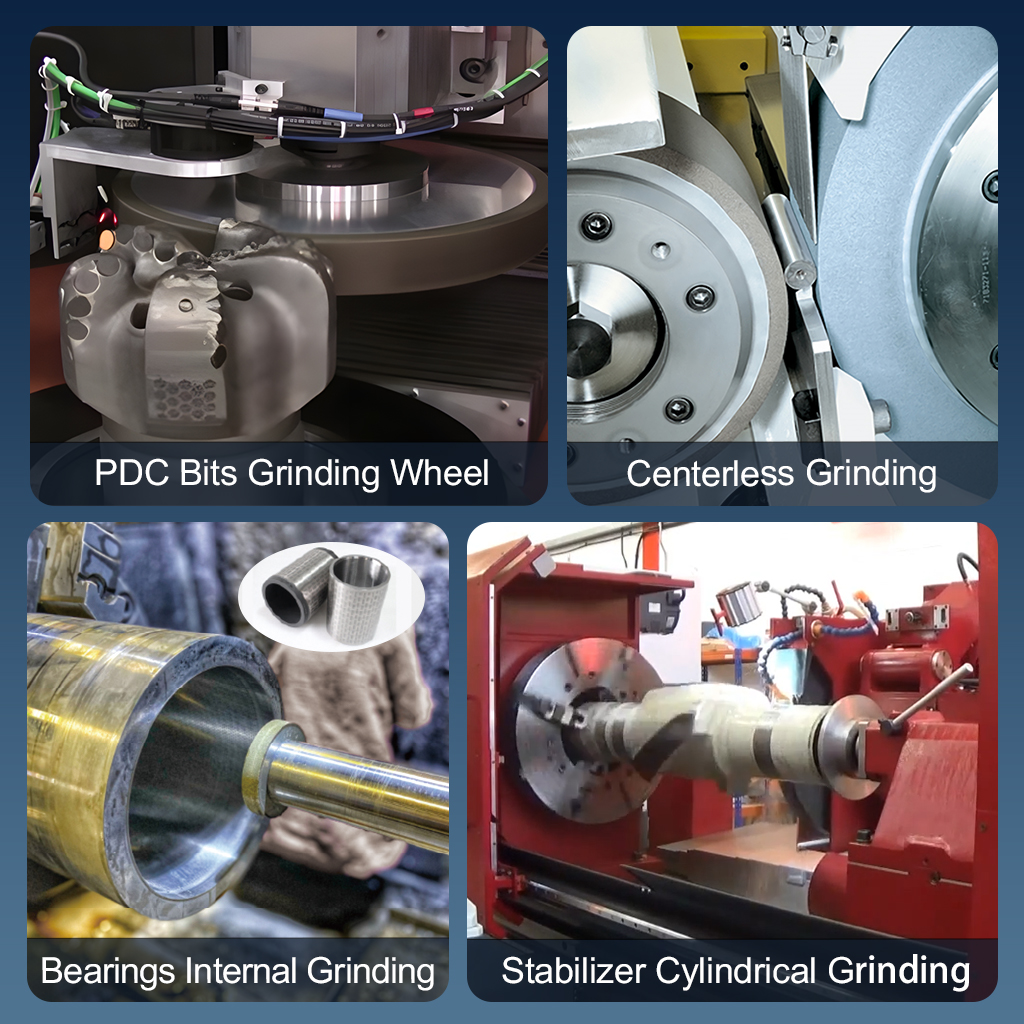

System Solutions from REZZ for Oil & Gas

REZZ Diamond Grinding Wheels performs well for grinding different kinds of popular materials on down-hole tools, such as PDC Cutters, TSP Diamond, Tungsten Carbide inerts & cutters, Carbide & Chrome Hardfacing parts, Carbide Grit Matrix and hardalloys. From 2" small lD grinding to 40" OD grinding wheels, all is avallable.

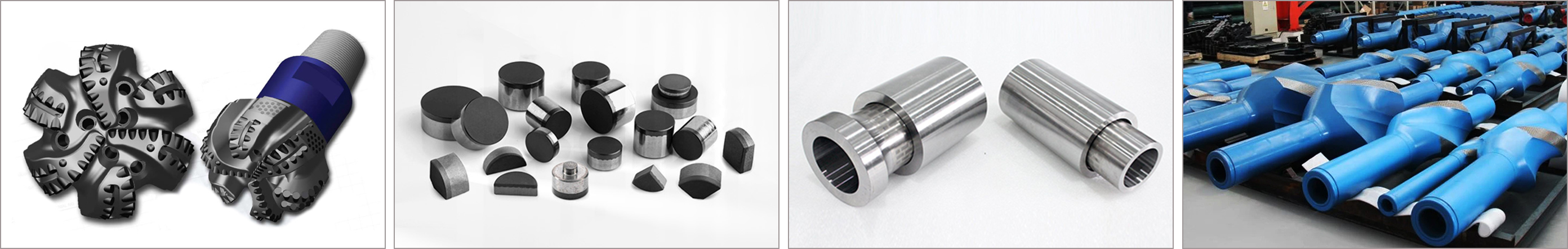

REZZ can supply diamond tools for the oil and gas industry, providing precise solutions for grinding wheels for PDC diamond, tungsten carbides and the down-hole tools made with PDC and tungsten carbides, such as PDC Bits, stabilizers, thrust bearings, hole-openers, collars, reamers and so on.

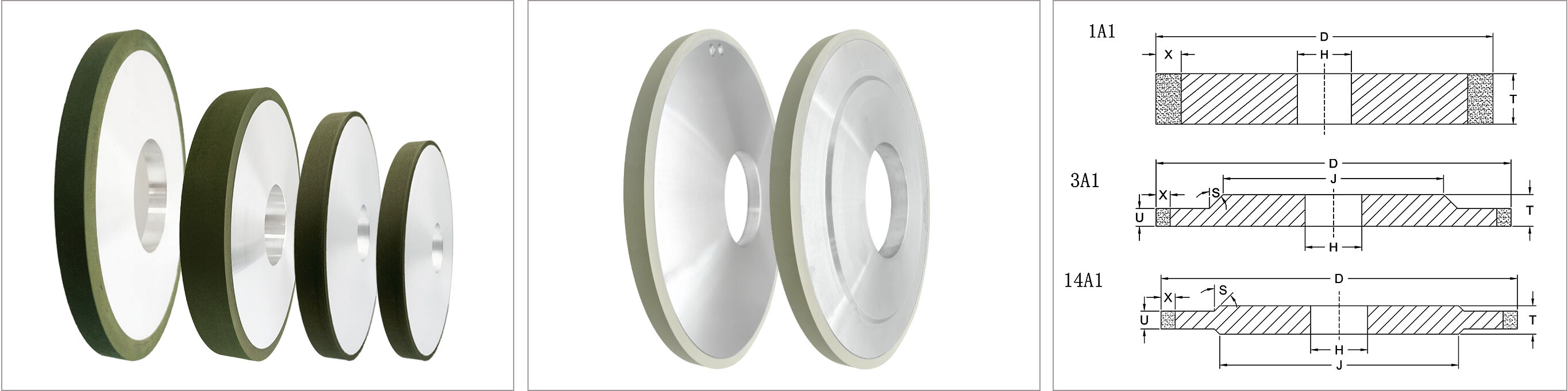

Cylindrical & Surface Grinding

* Vitrifed / Resin Bond Diamond Grinding Wheel

For Cylindrical grinding of PDC or Carbides inserts & cutters, or PDC bits, or tools with PDC cutters or tungsten carbide hardfacing parts, both the diamond grinding wheels is populars, but generally speaking, vitrified bond is for grinding PDC cutter or tools with PDC cutters, well, resin bond is always working for all of them

Resin Bond V.S. Vitrified Bond
	Resin Bond Diamond Grinding Wheels	Vitrified Bond Diamond Grinding Wheels
Price	Low	High
Life	Generally, customers can accep	Extended
Features	Reasonable sharp & efficiency	Sharp & high efficiency
Dimensions	Can be up to 1000mm	Usually below 600mm

Vitrified diamond cylindrical grinding wheel have good self-sharpening with pores and little damage to the spindle of the grinding machine, sharp and the grinding efficiency is high.
Resin bond cylindrical grinding wheel has good self-sharpness, and good surface finish, customer usyally use larger size resin grinding wheel. Most resin diamond grinding wheel for Oil & Gas with diameter size above 200mm.

Dimensions
Popular Sizes	D(mm)	T(mm)	H(mm)	X(mm)
8"-36"	200-900	25.4-50.8	31.75-304.8	12.7-20
Any nonstandard size and grits can customized.(tell me size or drawing is enough)

Centerless Grinding

* Vitrifed / Resin Bond Diamond Grinding Wheel

Centerless grinding is the ideal choice for the OD grinding of PDC cutters, offering simplicity in operation, exceptional precision, high productivity, and cost-efficiency. Both resin bond and vitrified bond are suitable for PDC Cutter grinding. The key distinction lies in the fact that vitrified bond exhibits greater aggression, enabling faster completion of tasks compared to resin bond. Furthermore, its high concentration ensures superior durability, but makes its cost higher than resin bonds. We ar capable of supplying both options, and they have demonstrated excellent performance on various centerless grinding machines within the workshops of leading Chinese PDC cutter manufacturers.

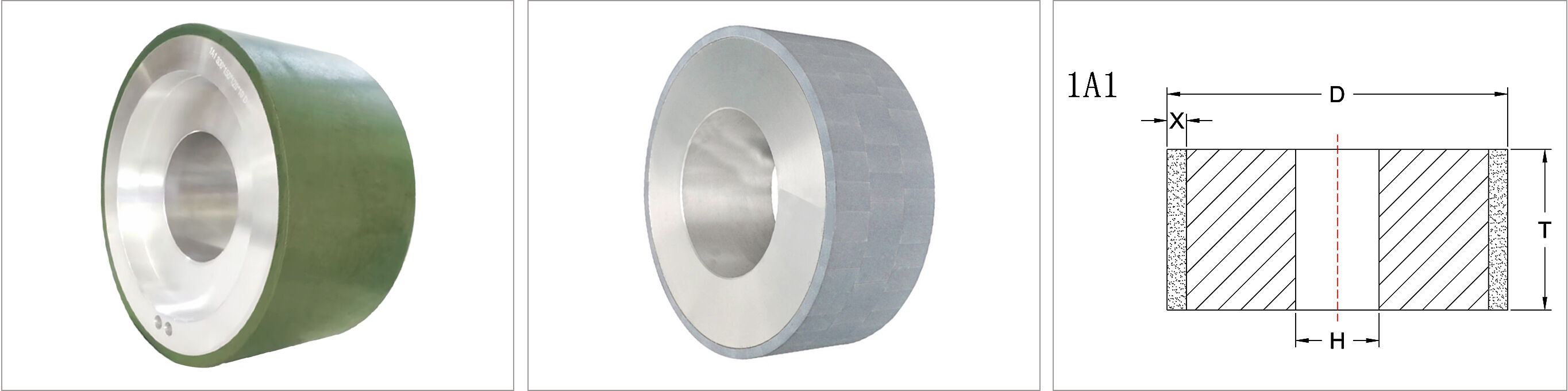

oil gas industry centerless-3.jpg

Dimensions
Model	D(mm)	T(mm)	H(mm)	X(mm)
1A1 6A1 9A1	200	50	75	10
	250	100	75	10
	300	100, 150	127	10
	350	125, 150	127	10
	400	150, 300	203	10
	450	150, 200, 300	228.5	10
	500	150, 200	305	10
Any nonstandard size and grits can customized.(tell me size or drawing is enough)

ID(Internal) Grinding

* Vitrifed / Resin / Electroplated Bond

Our small diameter diamond grinding wheels are popular for grinding inner holes on downhole tools. Our customers find good performance on carbide radial bearing inner hole grinding, bits carbide nozzle holes, bits cutter pocket slots, and other tools inner holes. Diamond grinding wheels can be used to grind tungsten carbide, ceramics, PCD, PDC, TSP diamond and other non-ferra metals. Also we have CBN wheels for hardened steel and HSS steels.

Features
1. High efficiency- Fast removing metals and materials off
2. Long Life - lt lasts much longer than traditional abrasive products
3. Less dressing interval
4. Less change times
5.Save times, save money

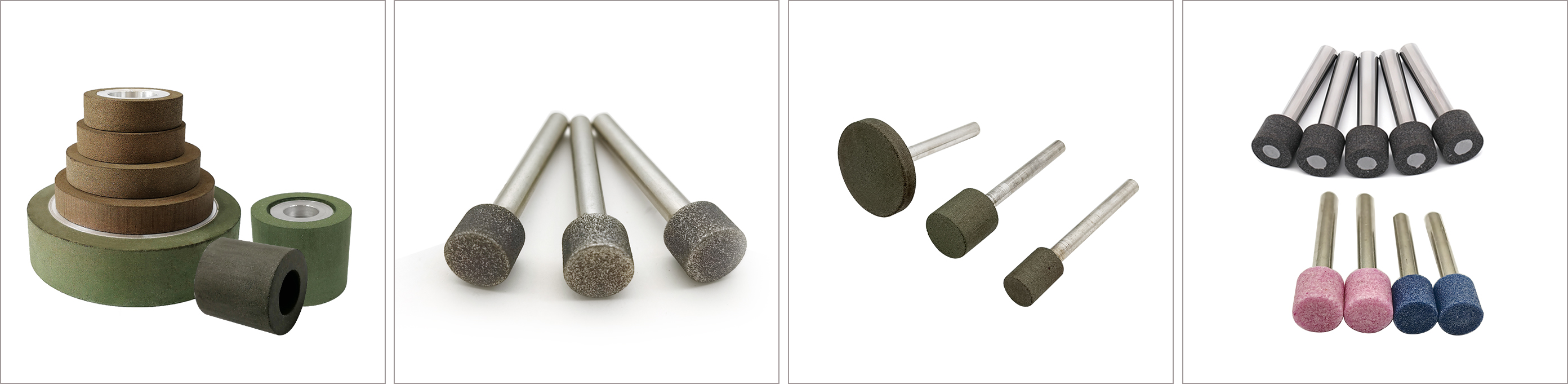

oil gas industry internal grinding-4.jpg

Dimensions
Grinding Method	Model	D(mm)	T(mm)
Internal grinding	1A1W, 1A1, 1A8	50.8-200	25.4
Any nonstandard size and grits can customized.(tell me size or drawing is enough)
