Centerless grinding: PDC/ tungsten carbide
OD Cylindrical grinding: bits, drill collar, stabilizer
ID Internal grinding: bits, bearings
MOQ: 5pcs
REZZ will provide you with system solutions for industries such as PDC/carbide grinding, drill bits grinding, drill collar grinding, stabilizer grinding, bearings grinding and other downhole tools grinding.
Diamond Features:
* High efficiency and sharp cutting
* Thick diamond layer extends long wheel life
* Heat reducting quickly
* High precision, reduced process
* Good surface finish
|
|
Grinding Methods:
Abrasive |
Diamond, CBN |
Bonding |

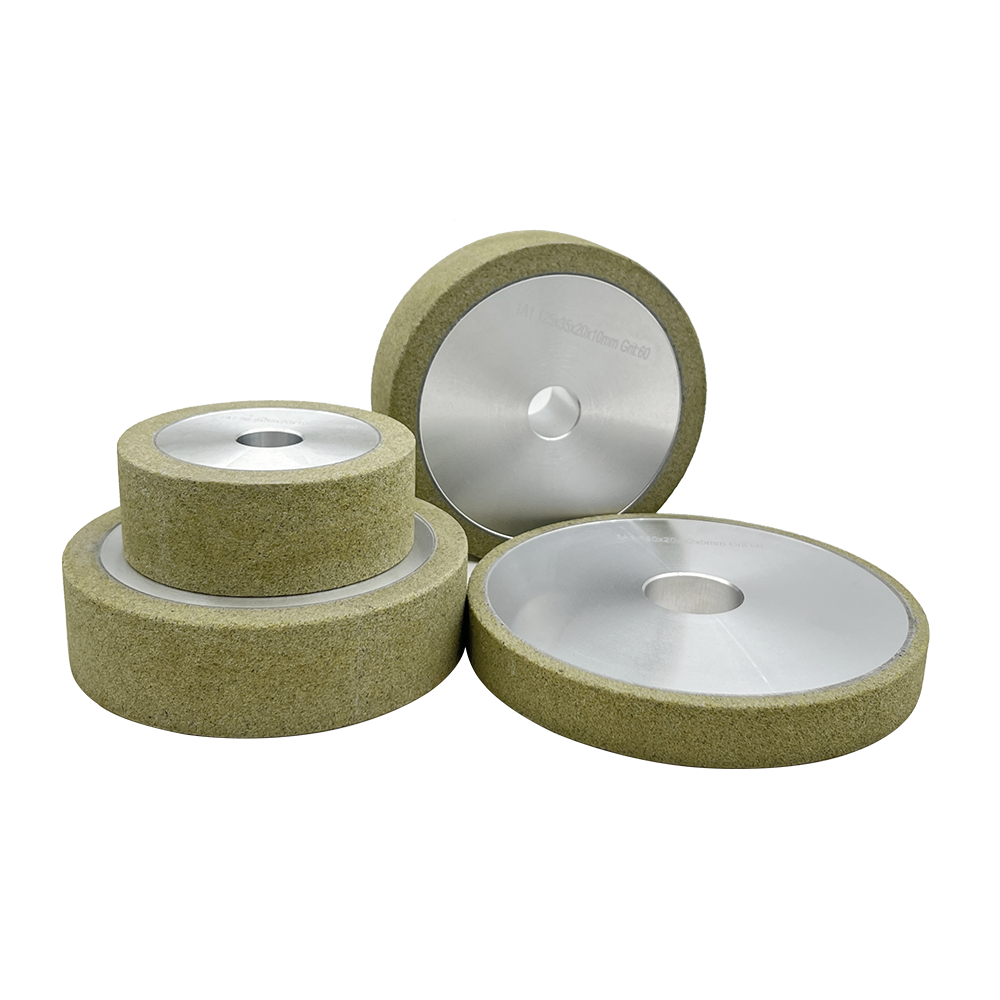

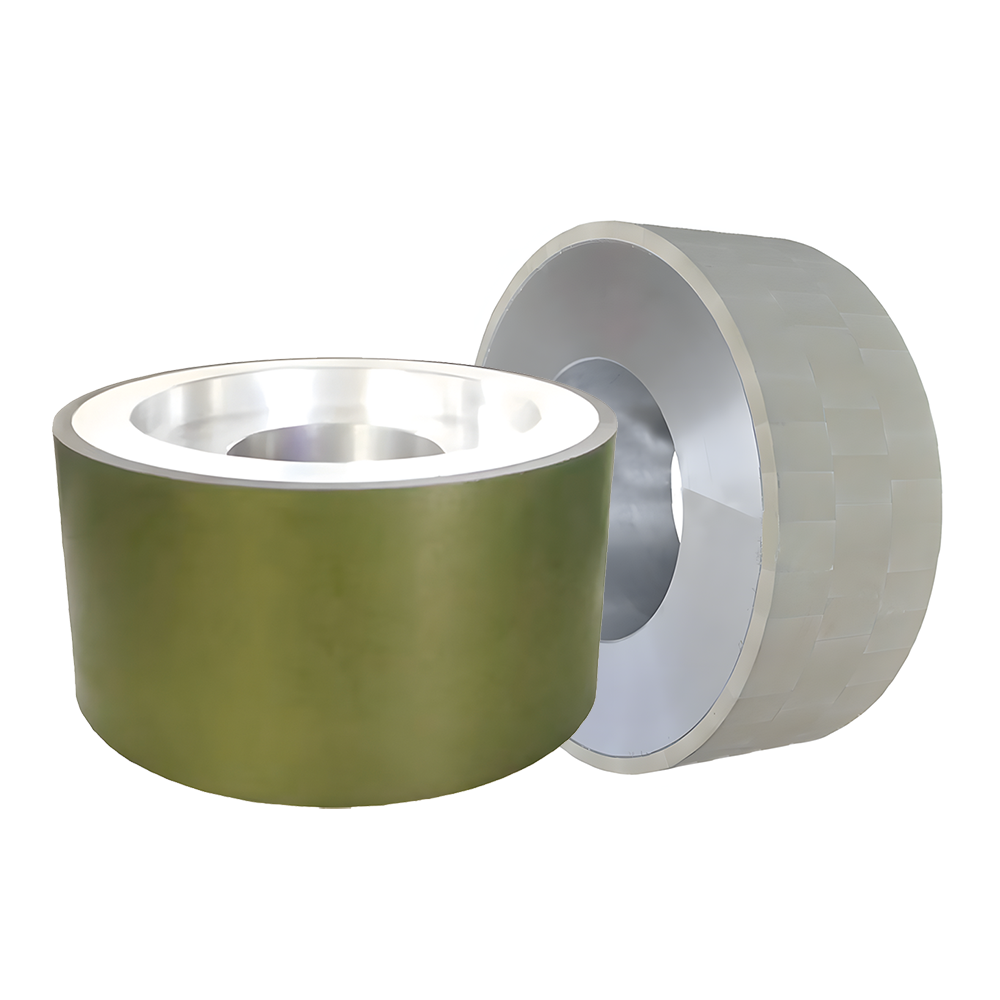

Resin, Vitrified |
Model |
1A1, 3A1, 6A1, 9A1, 14A1 |
Grit |
Customized |

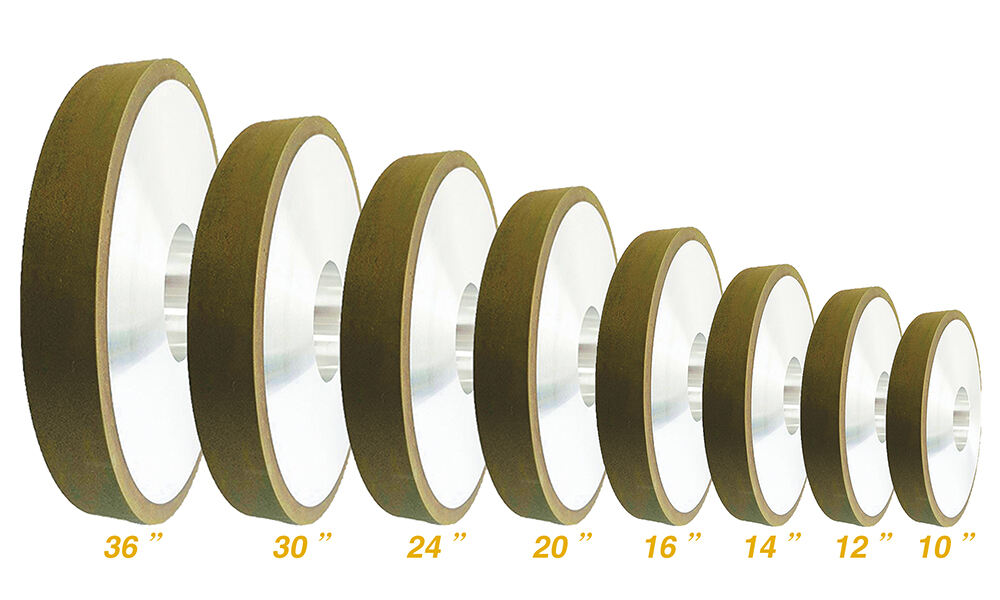

Popular Sizes |
200-900mm |
MOQ |
5 piece |
|

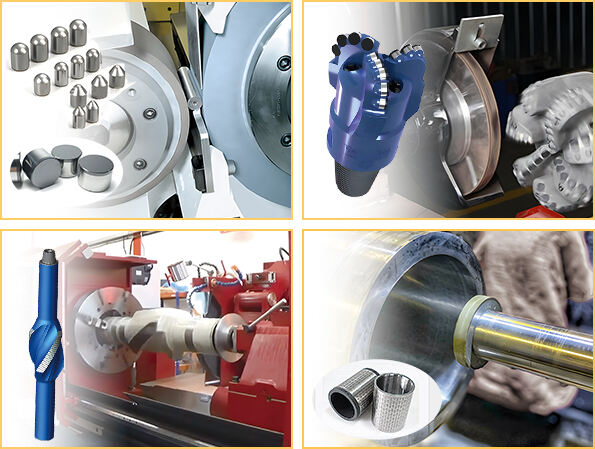

Application:
Grinding Workpiece: PDC Cutter, tungsten carbide, drill bits, drill collar, stabilizer, bearings and other downhole tools.
Applicable Tool Material: Tungsten carbide, PDC, etc.
Grinding Method: Centerless grinding, cylindrical grinding, ID internal grinding.
Applicable Grinding Machine: Centerless grindingmachine, cylindrical grindingmachine, ID internal grindingmachine.

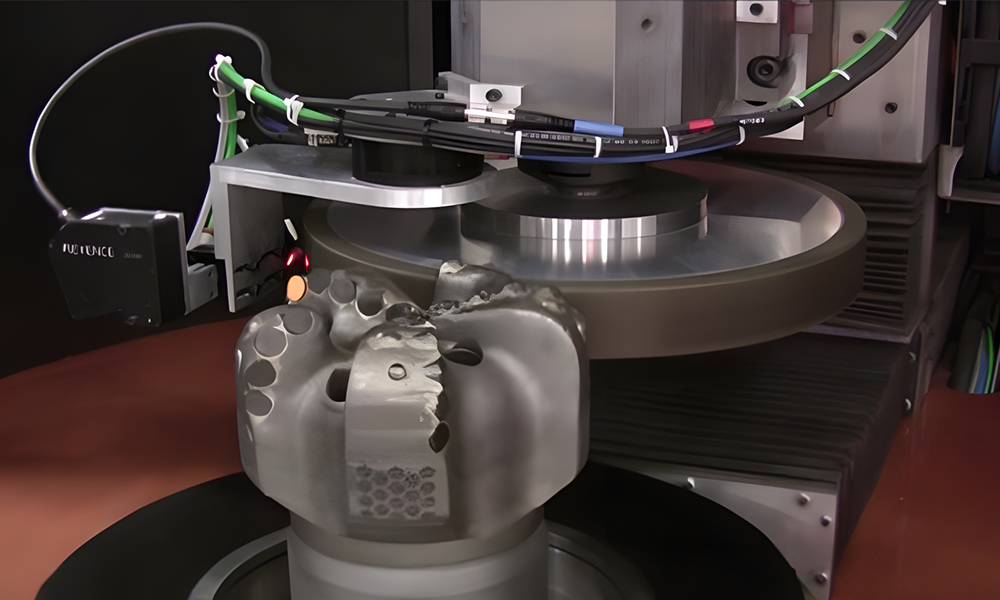

For Cylindrical grinding of PDC or Carbides inserts & cutters, or PDC bits, Or tools with PDC cutters or tungsten carbide hardfacing parts, both the diamond grinding wheels is populars, but generally speaking, vitrified bond is for grinding PDC cutters or tools with PDC cutters, well, resin bond is always working for all of them.
| Resin Bond V.S. Vitrified Bond | ||
| Resin Bond Diamond Grinding Wheels | Vitrified Bond Diamond Grinding Wheels | |
| Price | Low | High |
| Life | Generally, customers can accep | Extended |
| Features | Reasonable sharp & efficiency | Sharp & high efficiency |
| Dimensions | Can be up to 1000mm | Usually below 600mm |
Specifications:
| Dimensions | |||||
| Grinding Method | Model | D(mm) | T(mm) | H(mm) | X(mm) |
| Centerless grinding | 1A1, 6A1, 9A1 | 200-500 | 50-200 | 75-305 | 10 |
| Cylindrical grinding | 1A1, 3A1, 14A1 | 200-900 | 25.4-50.8 | 25.4-304.8 | 12.7-20 |
| Internal grinding | 1A1, 1A8 | 50.8-200 | 25.4 | As required | As required |
| Any nonstandard size and grits can customized.(tell me size or drawing is enough) | |||||
