Advantages of CNC Stubbing Wheel:
1. CNC grinding wheel has strong grindability, excellent polishing degree and long service life, and can customize the shape required by customers according to the shape of stone.
2. Diamond segmented profile wheel is the unique design with good sharpness allows easy dust removal, The segment with silver welding make the wheel is more aggressive, have a good performance on granite/marble/quartz.
3. Milling of stone, stock removal-primarily granite and engineered stone – for reducing slab thickness or backsplashes.
MOQ: 5 pieces
Features:
* High-efficiency grinding.
* Accurate calibration
* High performance diamond segments.
* Universal compatibility
|
|
Parameters:
| Abrasive | Diamond |
| Technology | Sintering Process |
| Model | 1A1 |
| Grit | #30, #60, #120 |
| Popular Sizes | 50-100mm |
| MOQ | 5 piece |
|
Application:
Grinding Workpiece: Granite, Marble, Limestone, Quartz stone.
Applicable Tool Material: Stone material, etc.
Grinding Method: Surface grinding
Applicable Grinding Machine: Diamut, Diamar, Nicolai Diamant, etc.

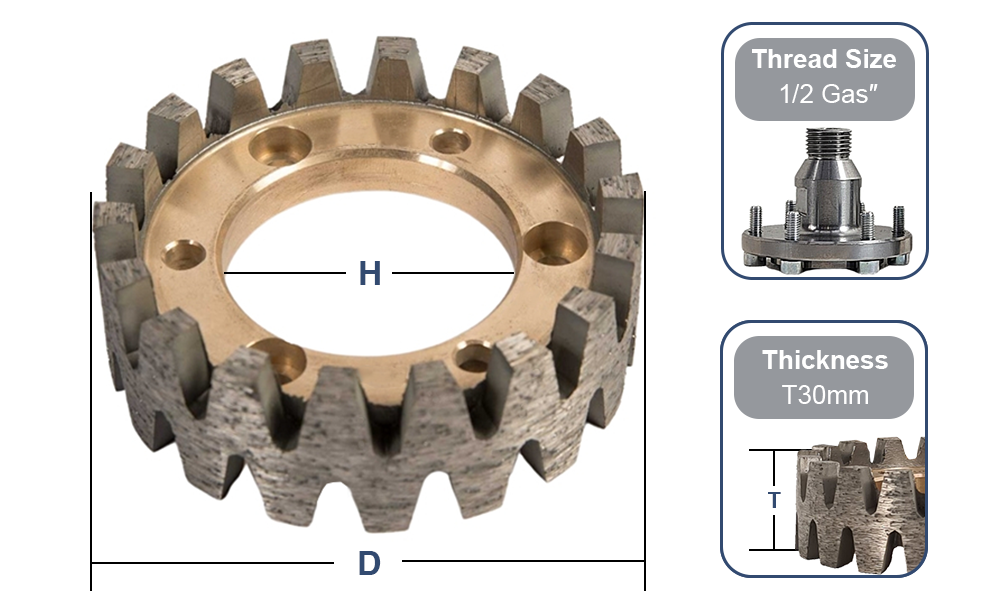

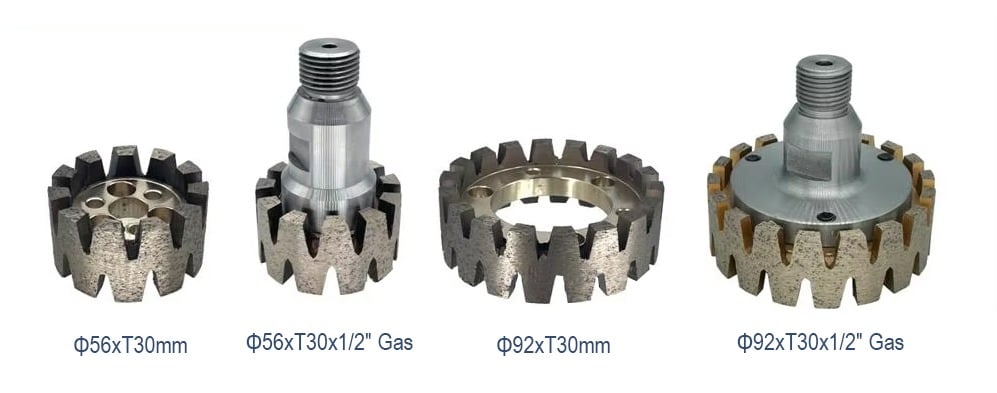

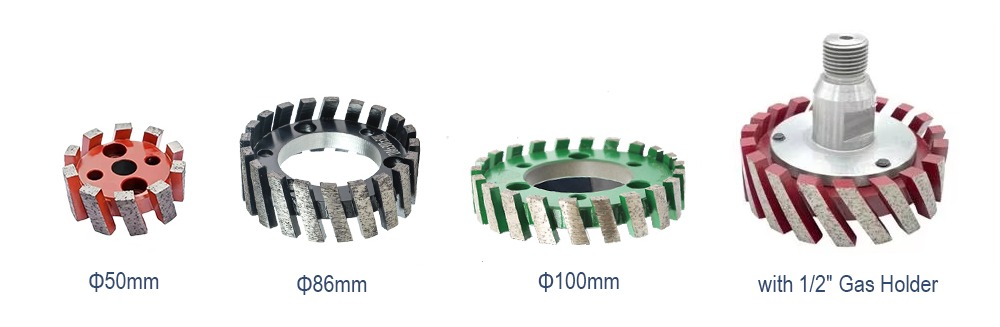

Specifications:
| Diameter(mm) | Arbor(mm) | Segment Height(mm) |
| 56 | 10 50 |
30 |
| 92 | 30 |
| Diameter(mm) | Arbor(mm) | Segment Height(mm) | Grit | Thread Size | Applicable Machines |
| 50 | 10 50 |
20 | #30 #60 #120 |
5/8"-11 M14 1/2"GAX |
CNC and NC stone processing machines |
| 30 | |||||
| 40 | |||||
| 86 | 20 | ||||
| 30 | |||||
| 40 | |||||
| 90 | 20 | ||||
| 30 | |||||
| 40 | |||||
| 100 | 20 | ||||
| 30 | |||||
| 40 |
