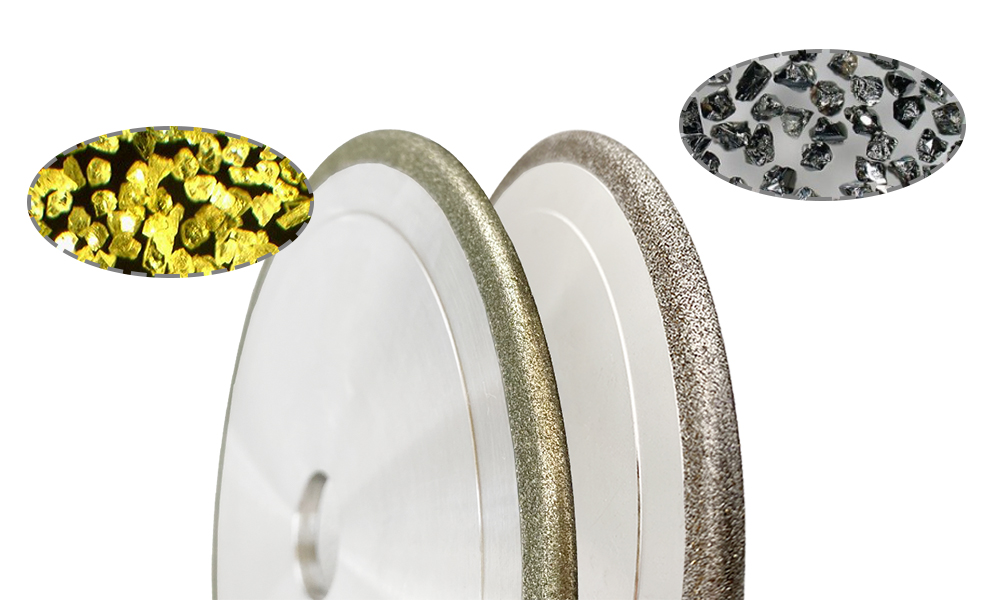

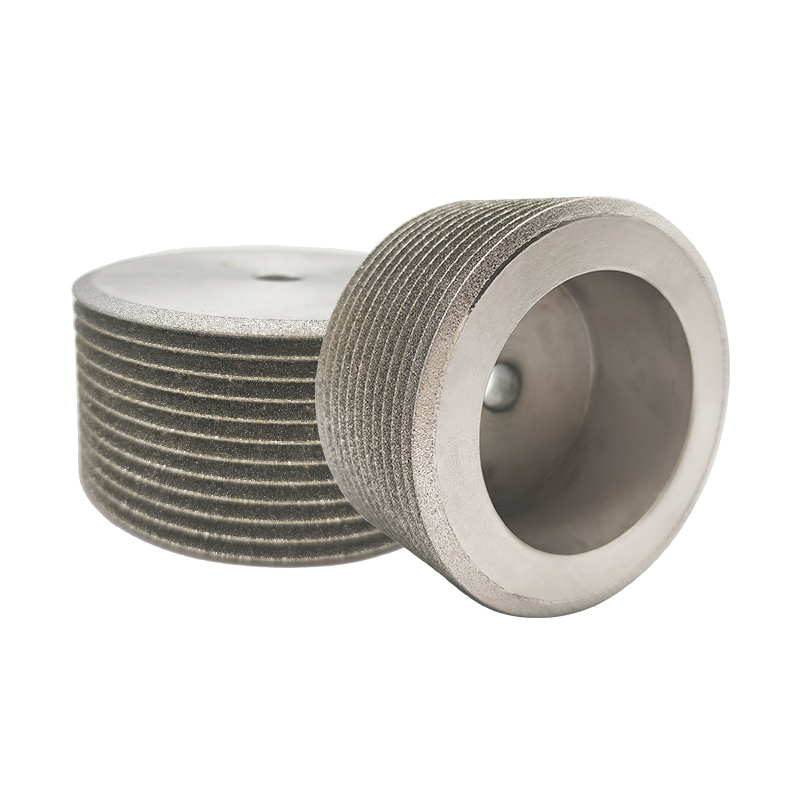

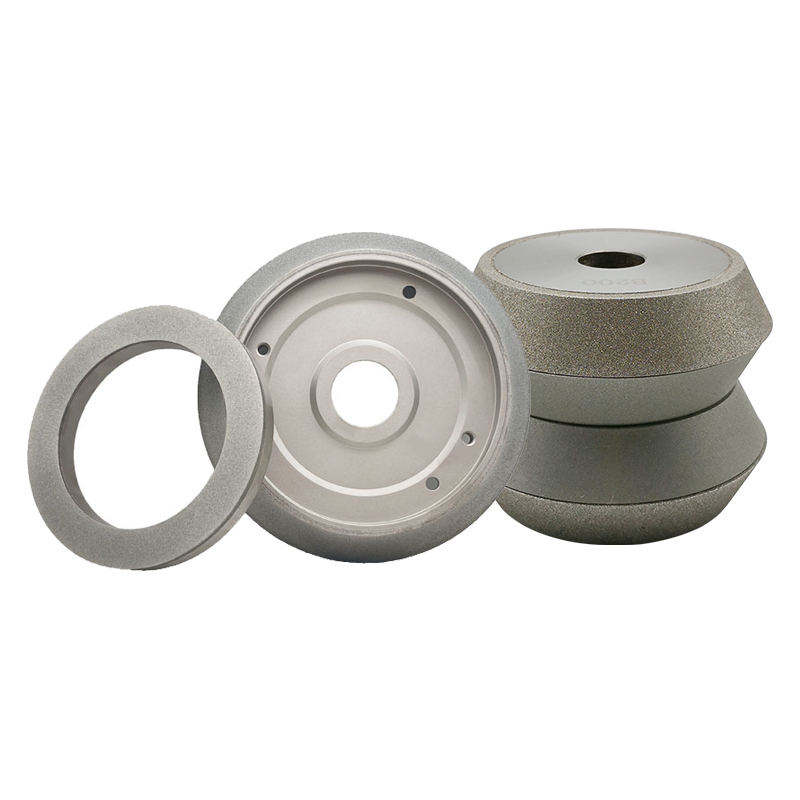

Electroplated Diamond CBN Profile Grinding Wheel suitable for special complicated profile, super-thin, especially small and other form grinding which have strict requirement on geometry shape and dimension.Therefore it improves the process efficiency and a lot of tools which are difficult to process with other methods can be solved.
MOQ: 5 Piece
Electroplated Diamond/CBN Products are made of a single layer or multi-layers(depending on appliation) of diamond/CBN grits that are attached to steel, aluminum or copper. Comparing with traditional abrasive wheels, it has lots of advantages: longer life, no dusts, no loss of wheel diameter, cooling grind, complex shapes, suitable for profiling and forming grinding, no need dressing and etc. Therefore, electroplated diamond CBN grinding wheels are gradually replacing traditional grinding wheels in many industries.

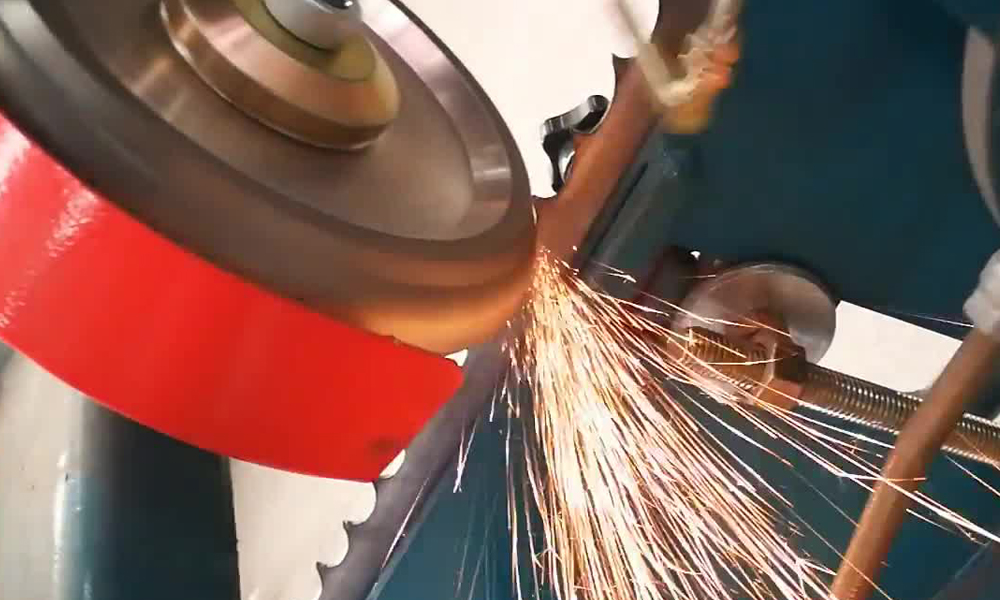

REZZ will provide you with system solutions for industries such as bit sharpening, milling cutter sharpening, chain saw tooth sharpening, band saw blades sharpening, Vibration saw tooth sharpening, valve sharpening, etc.
Features:
* Less heat generation, higher grinding efficiency and longer life.
* Sharp cutting, high efficiency.
* High quality steel body and selected CBN abrasives.
* The steel body is strong and durable and will never deform.
* longer life, no less, no loss of wheel diameter.
|
|
Grinding Methods:
| 1 | Cylindrical Grinding |
| 2 | Surface Grinding |
| 3 | Sharpening |
| 4 | Fluting |
| 5 | Profile Grinding |
|
Application:

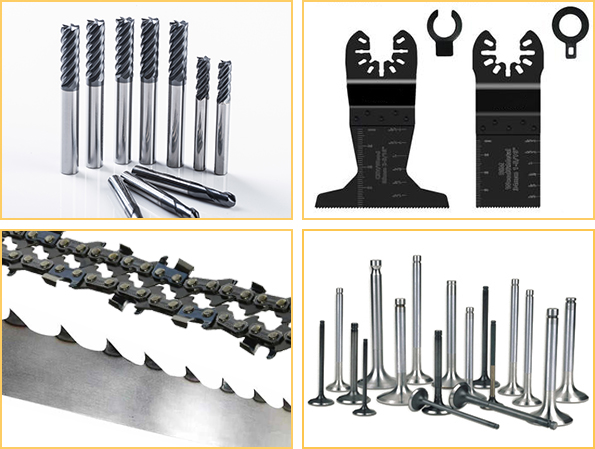

Grinding Workpiece:carbide and HSS tools(woodworking,
metalworking, industrial saw, knives & blades), hardened steels,
tungsten carbides, valve, valve seat, etc.
Applicable Tool Material: tungsten carbide materials, steel materials, etc.
Applicable Grinding Machine: Profile grinding machine, etc.
Specifications:
| Dimensions | ||||||
| D | T | H | X | R | ||
| (mm) | Inch″ | (mm) | Inch″ | |||
| 60-305 | 2.36″-12″ | 2-50.8 | 0.08-2″ | TO YOUR REQUEST | 2-38mm | customized |
| Any nonstandard size and grits can customized.(tell me size or drawing is enough) | ||||||
