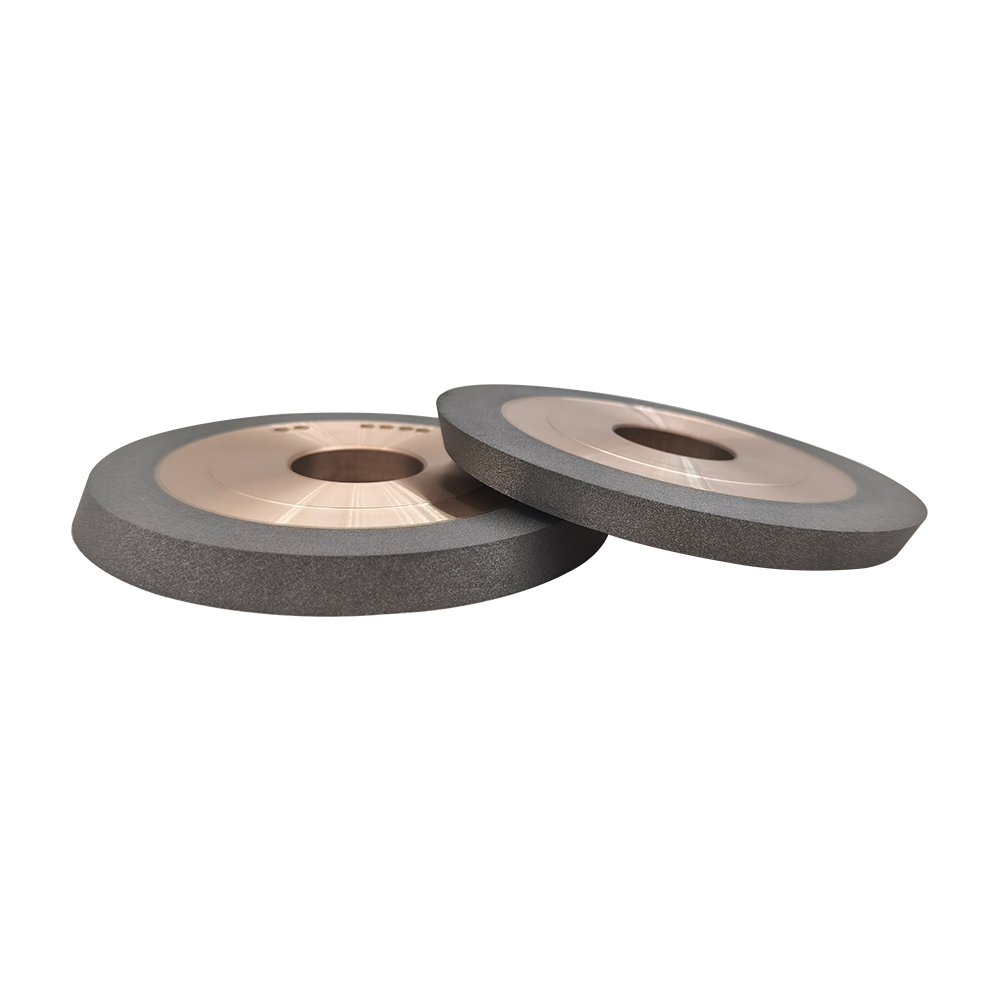

REZZ provides a line of solution and services for ultra performance tools grinding on CNC machines.Our services include fluting, gashing clear edge and relief angle, OD grinding of the tungsten carbide, HSS, milling cutter, reamer and drill, etc.
Features:
* High Profile Retention Ability
* Sharp & Fast Grinding
* Excellent Surface Finishes
* Less Dressing
* High Productivity
|
|
|
Grinding Methods:

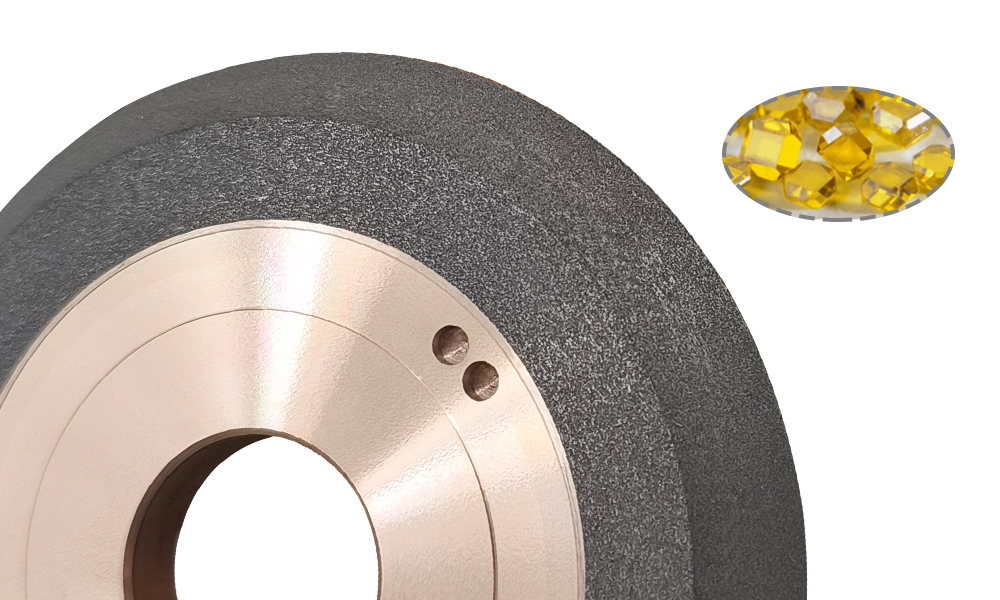

| Abrasive | Diamond |
| Bonding | Hybrid Bond |
| Model | 1V1 |
| Grit | #80-400 |
| Popular Sizes | 75-200mm |
| MOQ | 5 Pieces |
|
Application:

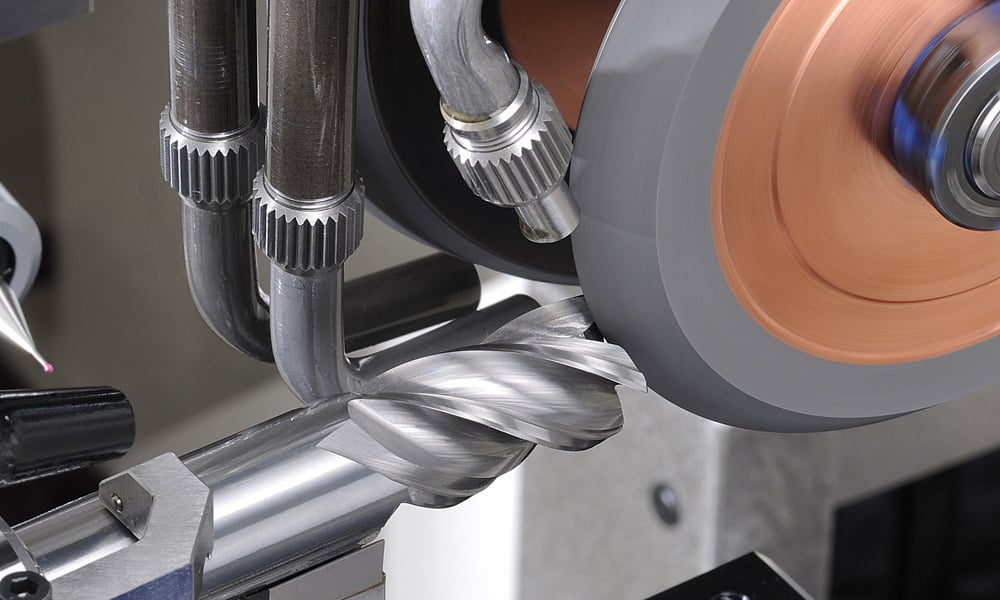

Grinding Workpiece: Solid carbide, Metal cutting tools,
HSS Round tools & inserts, like endmills, drills, milling tools and other.
Applicable Tool Material: tungsten carbide HSS steel materials, etc.
Applicable Grinding Machine: CNC Cutting Tool Grinding Machines, CNC full automatic 5 Axis.
Applicable Machine Brand: WALTER, ANCA, ROLLOMATIC, MAKINO.
Specifications:
| Dimensions | ||||||
| Type | D(mm) | H(mm) | X(mm) | U(mm) | Grit | Concentration |
| 1V1 | 100 | 25.4 | 5 | 6 | 230 270 350 400 600 800 1000 |
50 75 100 125 150 |
| 125 | 31.75 | 8 | 8 | |||
| 150 | 35 | 10 | 10 | |||
| 175 | 20 | 3 | 5 | |||
| Any nonstandard size and grits can customized.(tell me size or drawing is enough) | ||||||
