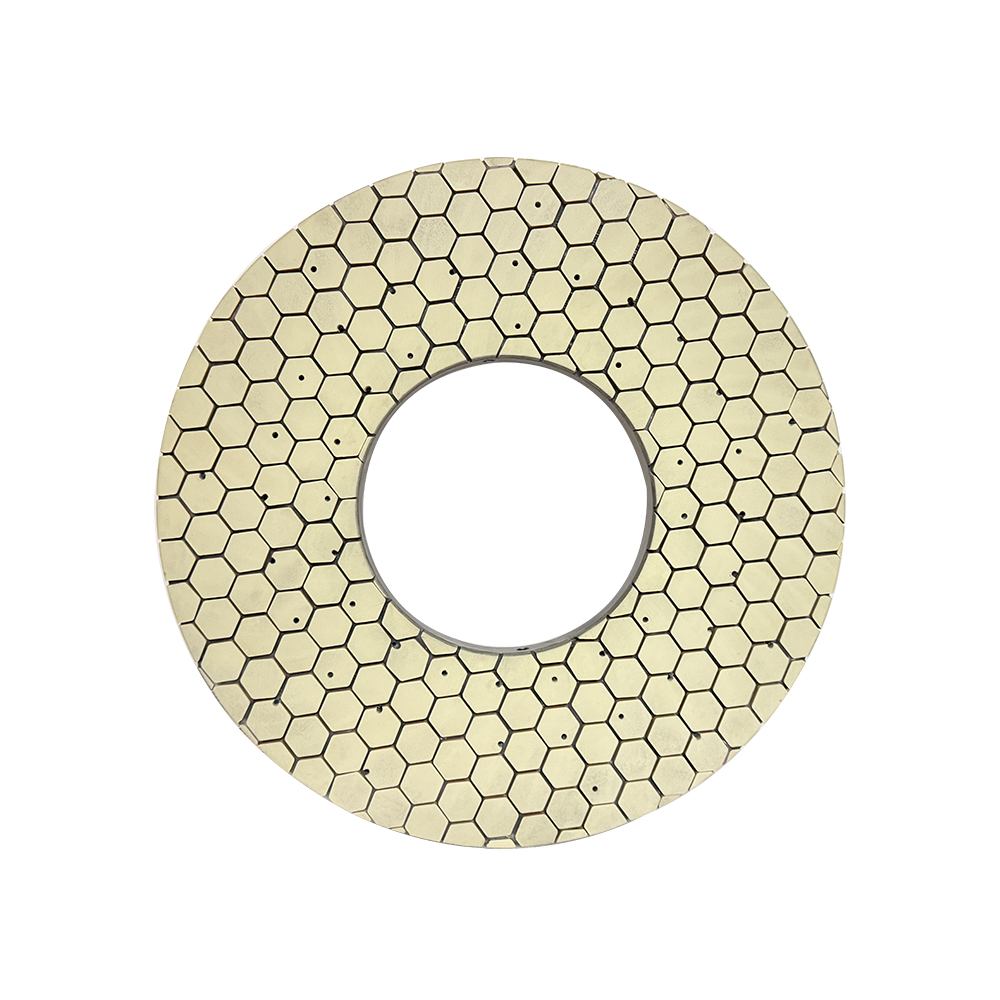

Double Disc Diamond & CBN Grinding Wheel for Bearing End Surface Grinding

Double Disc Diamond & CBN Grinding Wheel for Bearing End Surface Grinding

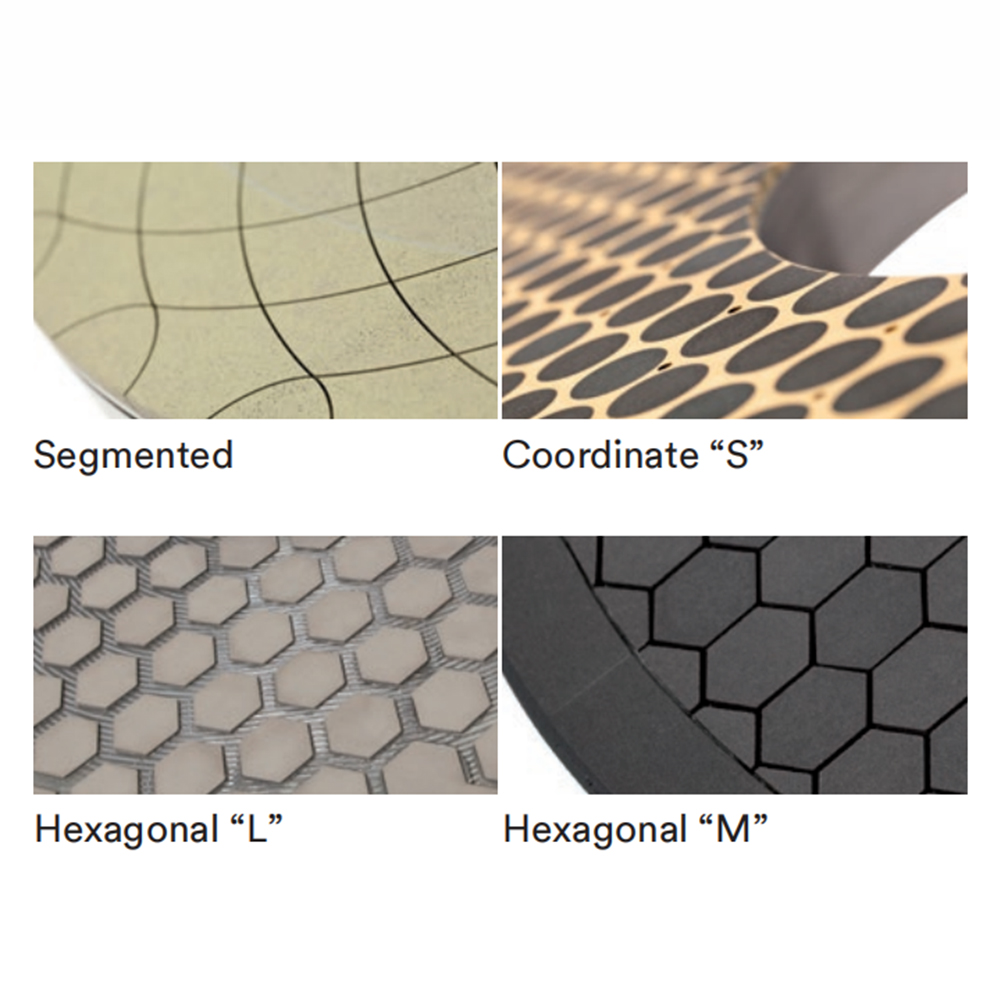

Vitrified Diamond CBN Double Disc Wheels is made of grinding disc matrix and super hard diamond grinding pellets by epoxy resin adhesive, and can be made into various shapes such as regular hexagon, sector, square ,circular, trigonometrical, hexagonal pellets (other shapes can be customized).

REZZ offers a full line of diamond and CBN double disc grinding wheels and dressing stones for fine grinding machines and single and double side lapping systems.

MOQ: 1pcs

Download

Description

double disc diamond cbn grinding wheel for bearing end surface grinding-1

+86-13938485694

[email protected]

Description

Vitrified resin diamond and CBN double disc grinding wheel are used for grinding bearing end faces, piston rings, gaskets, interstitials, compressor parts, vane pump stator, rotor, blade end faces, semiconductor materials, magnetic materials, tools, precision springs, etc.

REZZ will provide you with system solutions for industries such as bearing inner and outer ring,taper roller end face grinding.

Features:

* High grinding efficiency, Long service life and Good shape retention.
* High strength synthetic diamond for high removal rates while excellent finish.
* Sharp shape synthetic diamond for long dressing intervals.
* Free cutting design for low cutting energy.

* Better cutting edge with smaller chipping.

* Good uniformity of size because the stable uniform structure and materials in abrasive layer.

bearing grinding app.png

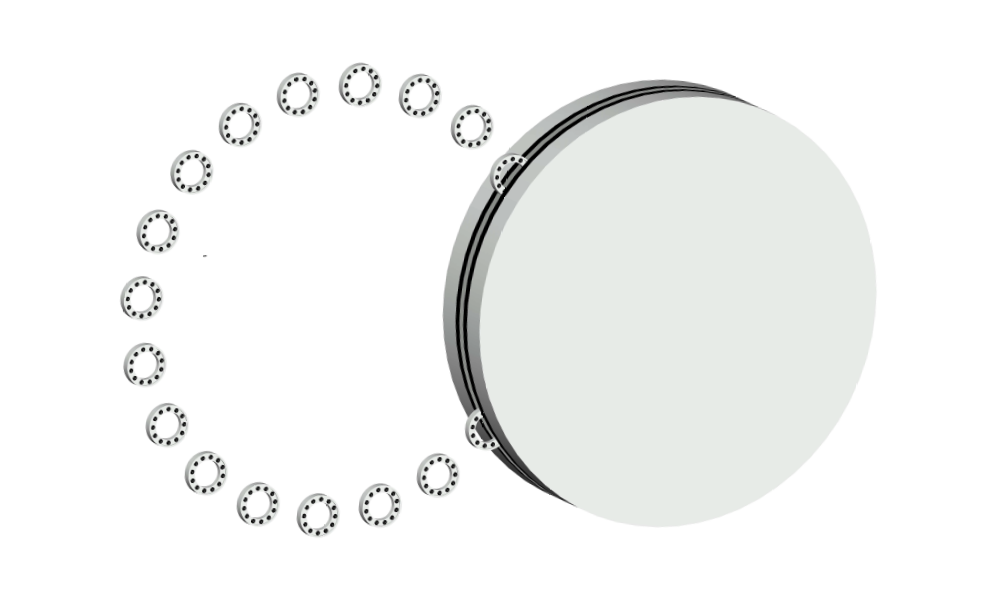

bearing grinding app-1.png

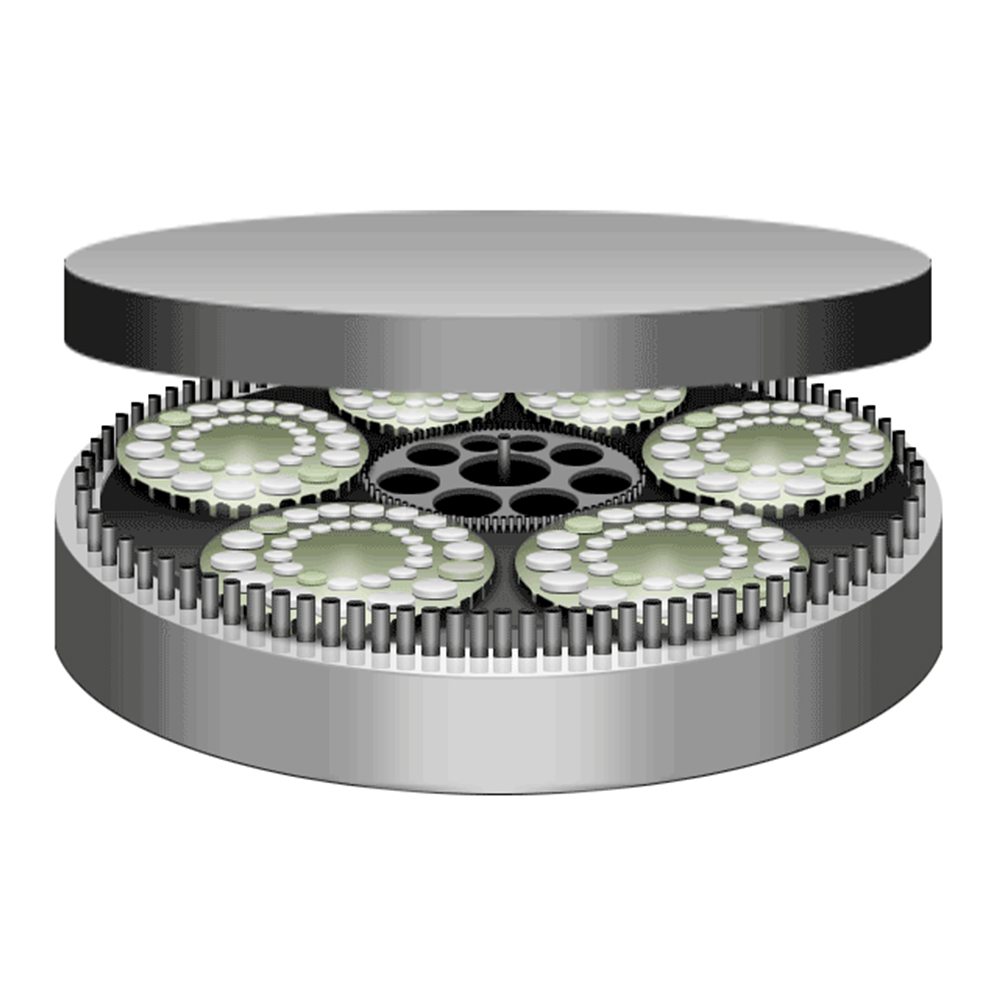

Grinding Methods:

Abrasive	Diamond, CBN
Bonding	Vitrified, Resin
Model	1A2T
Popular Sizes	380-1500mm
MOQ	1 Pieces

bearing surface grinding app.jpg

Application:

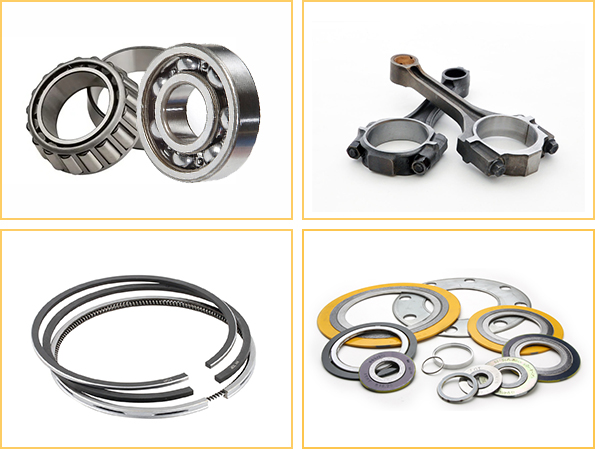

Grinding Workpiece: bearing end faces, piston rings, gaskets, interstitials, compressor parts, connecting rod, etc.

Applicable Tool Material: High-speed tool steel, bearing steel, semiconductor materials, magnetic materials, etc.

Grinding Method: Surface grinding.

Applicable Grinding Machine: Wendt WBM, Viotoo, AMT, Stahli, Peter Wolters, Diskus, Agathon T&B, Fujisanki, Supfina, Melchiorre, Koyo, Lam Plan, Speedfam, Kemet, Gardner and other brands.

Specifications:

Dimensions
Product Name	Vitrified Diamond CBN Grinding Disc Wheels/Resin CBN Grinding Wheel
Model	1A2,6A2, 6A2T, 12A2
Model	380mm-1500mm
Internal Diameter	50mm-500mm
Substrate Thickness	50mm-100mm
Grit	80grit-1500grit
