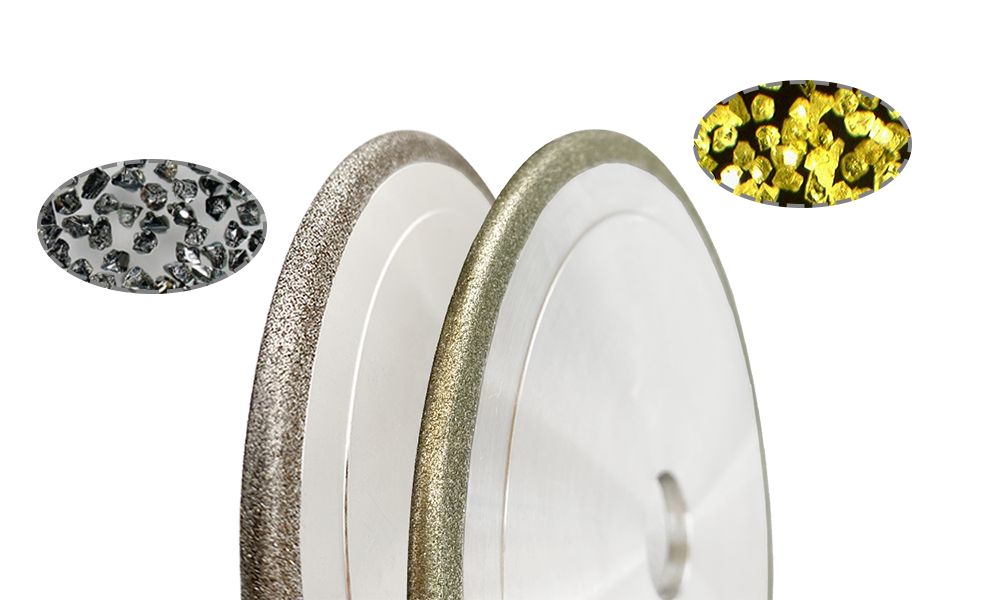

Chain Saw Teeth are made of hard steel usually, sometimes there is tungsten carbide teeth too. We designed electroplated and resin bond Diamond/CBN grinding wheels for grinding them. Electroplated CBN wheels are the most popular ones. Because it doesn't deform, no need dressing, and the diameter kept same always, it will save your time greatly.
MOQ: 5pcs

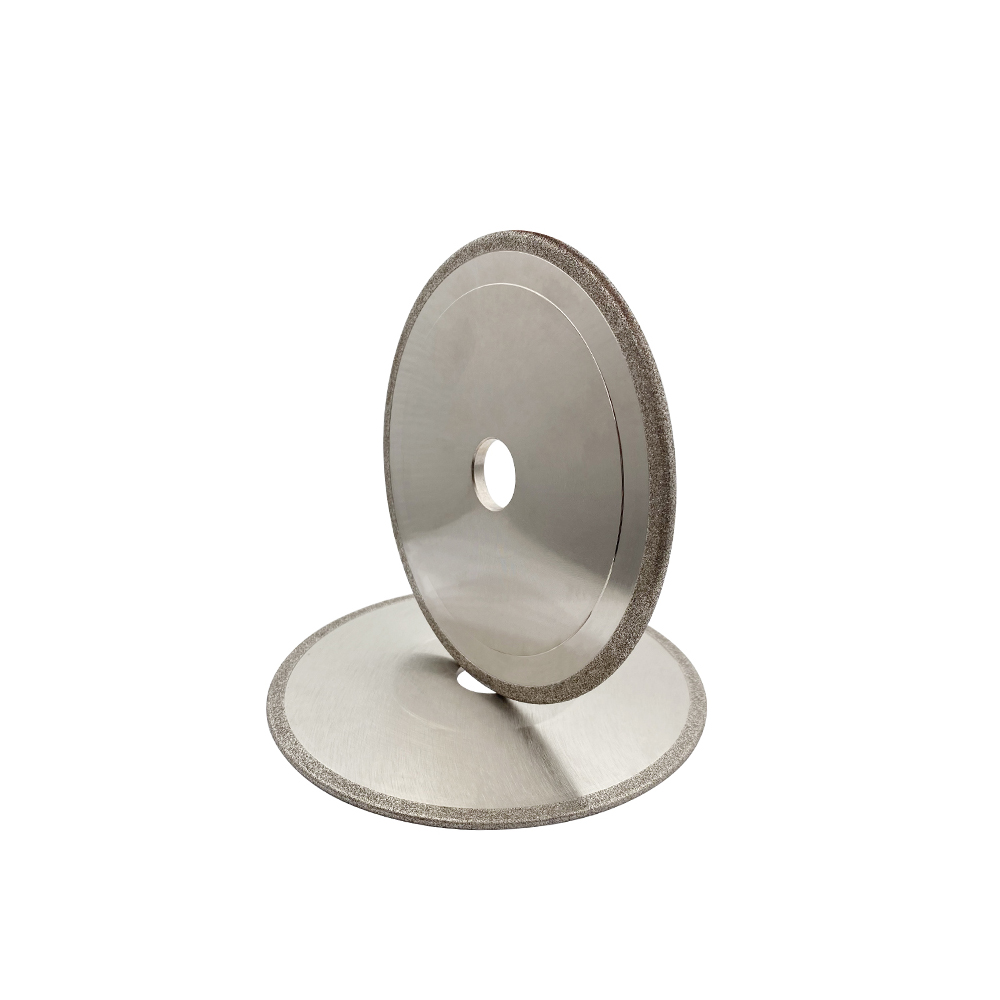

These wheels are made from CNC machined steel and have unique "cyclone" cooling slots to keep from overheating chain cutters. The wheel contains CBN (Cubic Boron Nitride) abrasive grit, which ensures it stays sharp as it wears.
Features:
* Less heat generation, higher grinding efficiency.
* High quality steel body and selected CBN abrasives
* The steel body is strong and durable and will never deform.
* One grinding wheel can help you grind more than 1000 bandsaws.
|
|
|
Grinding Methods:
| Abrasive | Diamond, CBN, PA, SA |
| Bonding | Electroplated, Vitrified, Resin |
| Model | 1F1 |
| Popular Sizes | 4", 5-3/4", 8" |
| MOQ | 5 Pieces |
|
Application:

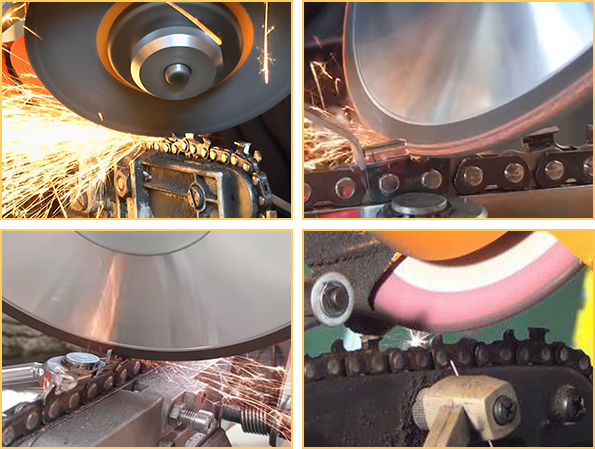

Grinding Workpiece: Chain saw tooth
Applicable Tool Material: tungsten carbide, HSS steel.
Grinding Method: Profile grinding
Applicable Grinding Machine: Oregon, Timberline, Xtremepower, Powefist, VEVOR, Harbor Freight Tools, Tecomec Evo Bench, Maxx Bench, simington, LOGOSOL, The Franzen, Husqvarna, BELL, FOLEY, STIHL, WINDSOR, BELSAW, JOLLY, PEERLESS, TECOMEC, MAXX, ROUGHNECK, TIMBER TUFF, EFCO, NEILSEN - BELL, SILVEY, TOTAL.
Saw Blade Applicable: Stihl, Briggs & Stratton, Kohler, Tecumseh, Echo, Kawasaki, Honda, Robin, Yamaha, Wacker, Oleo Mac, Partner, Craftsm, Husqvarna.
Specifications:
| Dimensions | ||||||
| Diameter | Thickness | Bore | Arc | Abrasive | Bond | PITCH |
| 4" 5-3/4" 8" |
1/8" | 1/2" 7/8" 1" |
R1.6 | PA, SA | Resin/Vitrified | 1/4", 0.325", 3/8"LP(Low Profile) |
| CBN, Diamond | Electroplated/Resin | |||||
| 4" 5-3/4" 8" |
3/16" | 1/2" 7/8" 1" |
R1.6 | PA, SA | Resin/Vitrified | 3/8", 0.404", 7/16" |
| CBN, Diamond | Electroplated/Resin | |||||
| 4" 5-3/4" 8" |
1/4" | 1/2" 7/8" 1" |
R1.6 | PA, SA | Resin/Vitrified | 1/2", 9/16", 5/8", Rakers |
| CBN, Diamond | Electroplated/Resin | |||||
| 4" 5-3/4" 8" |
5/16" | 1/2" 7/8" 1" |
R1.6 | PA, SA | Resin/Vitrified | 3/4" Harvester |
| CBN, Diamond | Electroplated/Resin | |||||
| Any nonstandard size and grits size can customised (tell us size or drawing is enought) | ||||||
