REZZ can provide diamond /CBN tools for grinding, cutting and polishing in the medical industry, has been successful in the medical technology market for many years, especially hip and knee joints, trauma implants, surgical instruments and other devices or hypodermic needles for processing medical devices.
MOQ: 5pcs
Artificial joint heads, including hip, knee and shoulder joints, are an alternative to joint injuries caused by arthritis and other causes. It is a man-made model composed mainly of special metals such as titanium, cobalt and chromium alloys, and special materials such as ceramics and polymer polyethylene.
REZZ will provide you with system solutions for industries such as Artificial joint machining.
Features:
* High grinding efficiency
* High wear resistance: Grinding wheel has high wear resistance, less abrasive consumption, and its wear resistance can be most obvious when grinding hard and brittle workpiece.
* Grinding heat conductivity is good, the workpiece is not easy to deformation.
* The workpiece grinding high precision, good surface quality.
|
|
Grinding Methods:
| Abrasive | CBN, Ordinary Abrasive |
| Bonding |
Vitrified, Resin
|

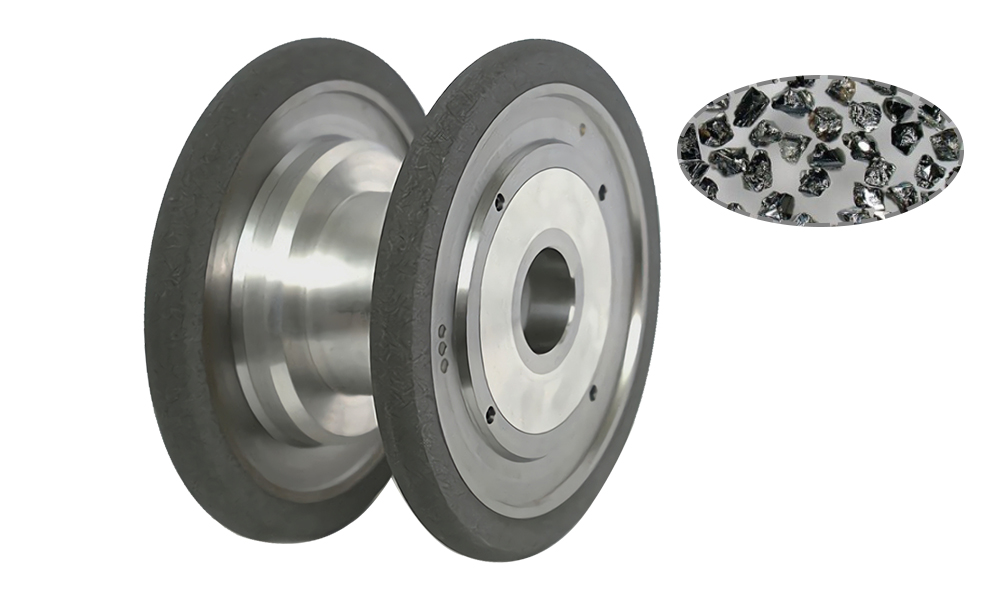

| Model | 14FF1S, 1F, 1FF1 |
| Popular Sizes | 175-240mm |
| MOQ | 5 Pieces |
|
Application:

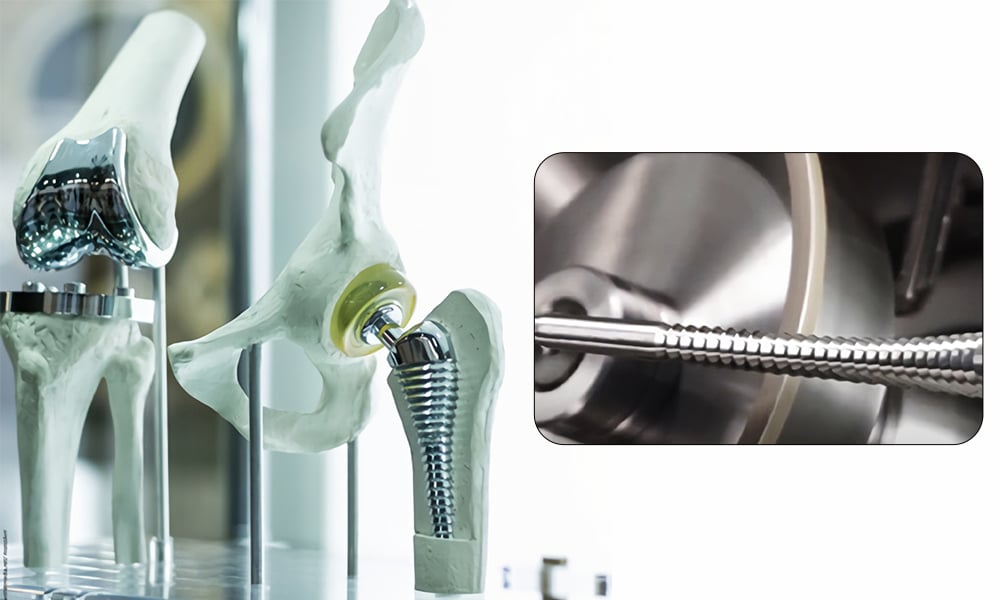

Grinding Workpiece: Artificial joint, including hip prostheses, knee prostheses,
shoulder joints, femoral stem.
Applicable Tool Material: Titanium, cobalt and chromium alloys, and special materials such as ceramics and polymer polyethylene.
Grinding Method: Profile grinding

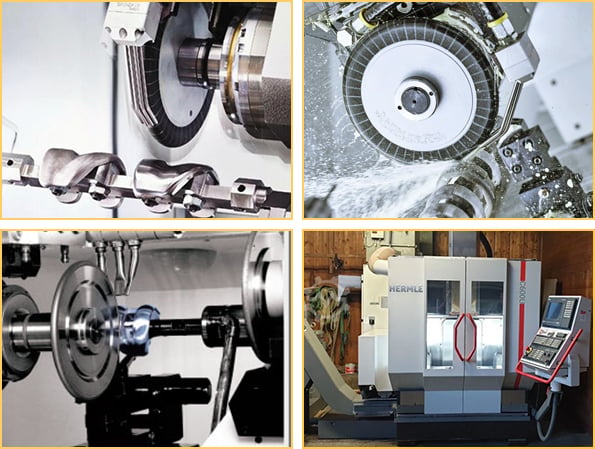

Applicable Grinding Machine:Schütte、Haas、Hermle、Makino、Walter.
Specifications:
| Dimensions | |||||
| Model | D(mm) | T(mm) | H(mm) | X(mm) | R |
| 14FF1S, 1F, 1FF1 | 175-240 | 15-125 | 21 | Up to 20 | 6-8 |
| Any nonstandard size and grits size can customised (tell us size or drawing is enought) | |||||
