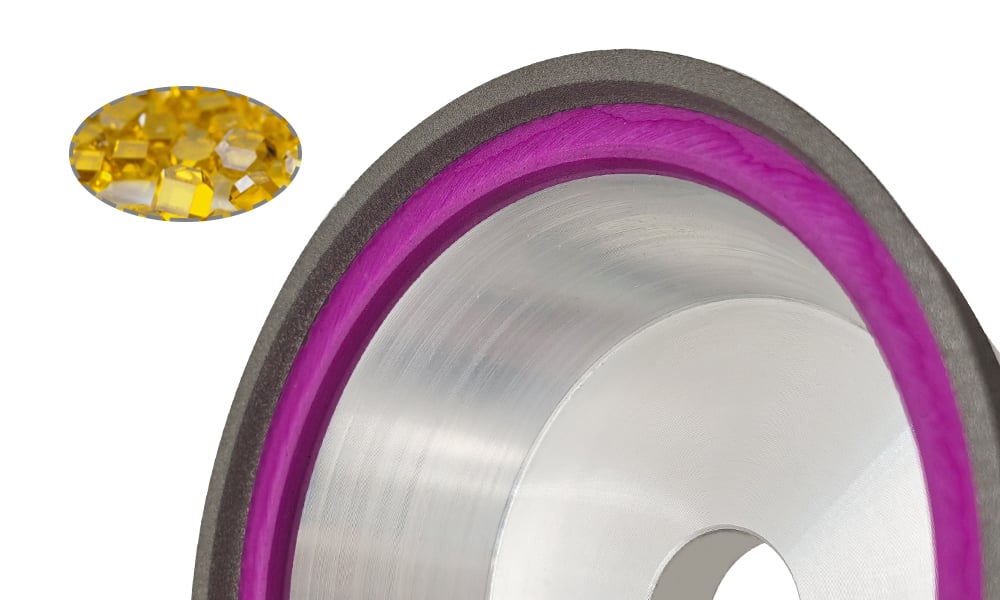

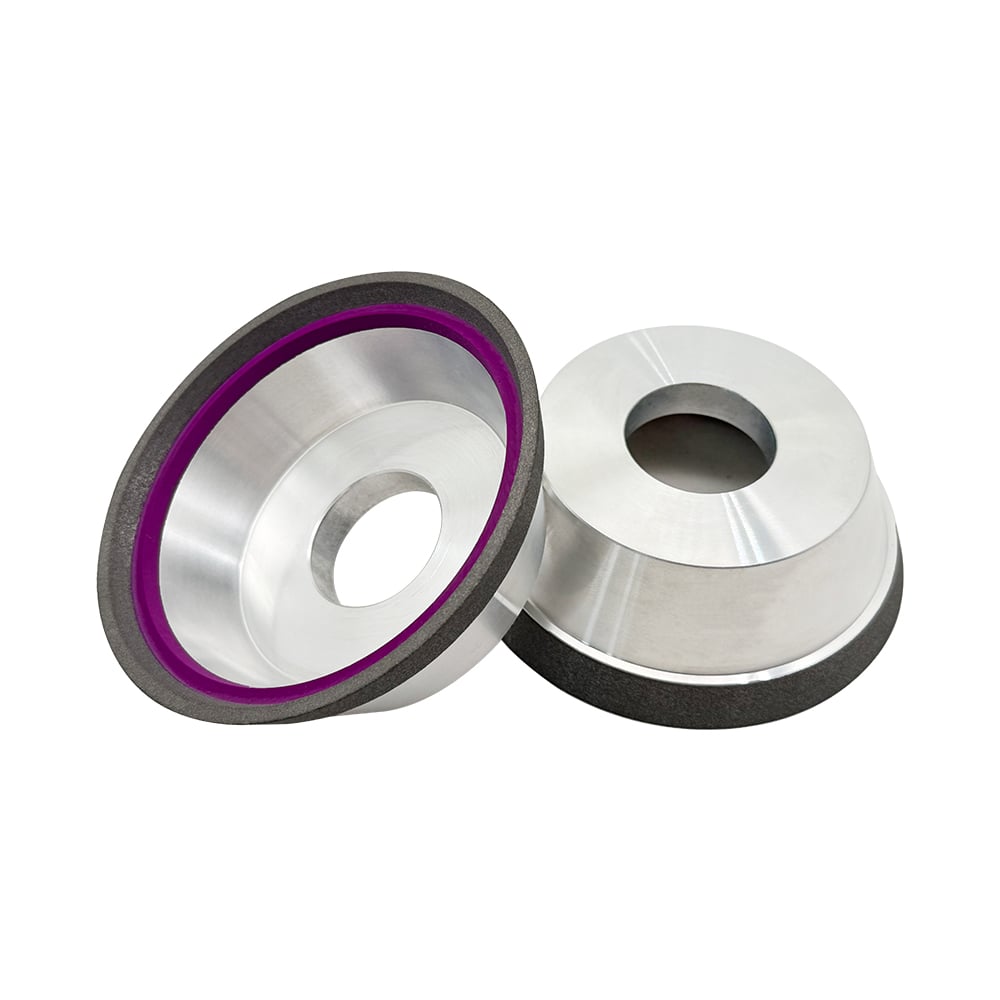

The 11V9 Hybrid Bond Diamond Grinding Wheel is specially developed for gashing and core preparation of solid carbide cutting tools. Its advanced hybrid bond structure combines the sharp cutting performance of resin bond with the durability and wear resistance of metal bond, providing an ideal balance between grinding efficiency and wheel stability.
Designed for applications such as carbide end mills, drills, and precision cutting tools, the wheel delivers fast material removal, excellent shape retention, and consistent grinding quality. Compatible with leading CNC tool grinders, it helps manufacturers reduce dressing frequency, improve production efficiency, and achieve reliable tool performance with high accuracy.
Features:
* High Profile Retention Ability
* Sharp & Fast Grinding
* Excellent Surface Finishes
* Less Dressing
* High Productivity
|
|
Grinding Methods:
| Abrasive | Diamond |
| Bonding | Hybrid Bond |
| Model | 11V9 |
| Grit | #80-400 |
| Popular Sizes | 75-200mm |
| MOQ | 5 Pieces |
|
Application:

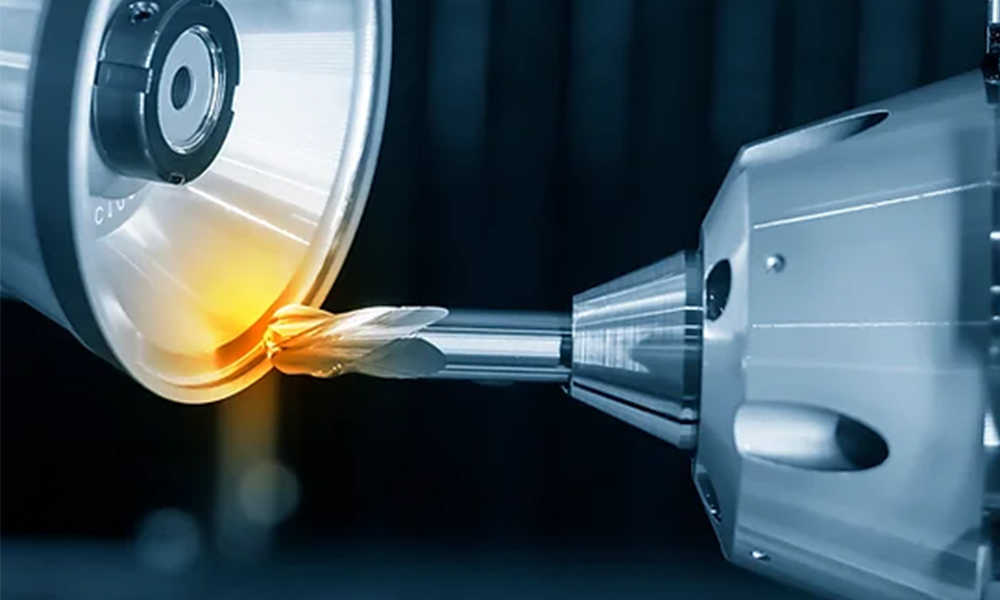

Grinding Workpiece: Solid carbide, Metal cutting tools,
HSS Round tools & inserts, like endmills, drills, milling tools and other.
Applicable Tool Material: tungsten carbide HSS steel materials, etc.
Applicable Grinding Machine: CNC Cutting Tool Grinding Machines, CNC full automatic 5 Axis.
Applicable Machine Brand: WALTER, ANCA, ROLLOMATIC, MAKINO.
Specifications:
| Dimensions | ||||||
| Type | D(mm) | H(mm) | X(mm) | U(mm) | Grit | Concentration |
| 11V9 | 100 | 25.4 | 5 | 6 | 230 270 350 400 600 800 1000 |
50 75 100 125 150 |
| 125 | 31.75 | 8 | 8 | |||
| 150 | 35 | 10 | 10 | |||
| 175 | 20 | 3 | 5 | |||
| Any nonstandard size and grits can customized.(tell me size or drawing is enough) | ||||||
