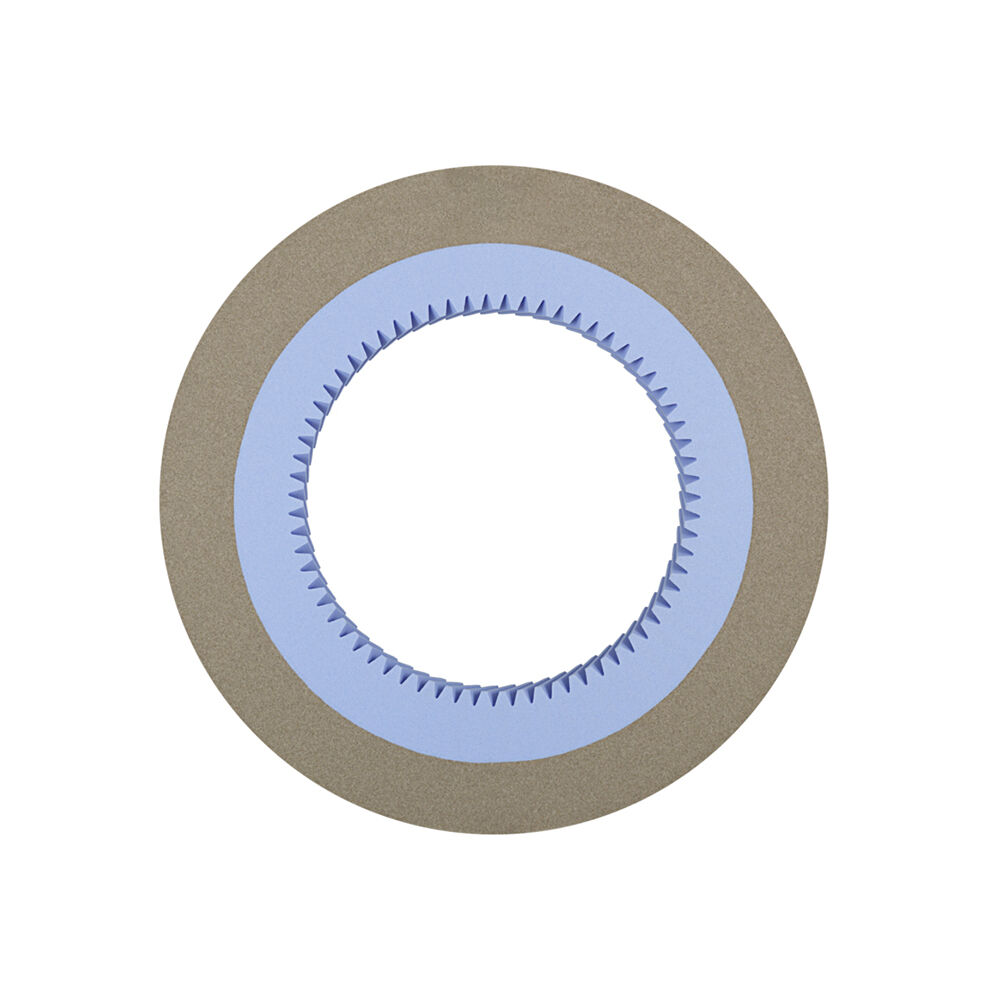

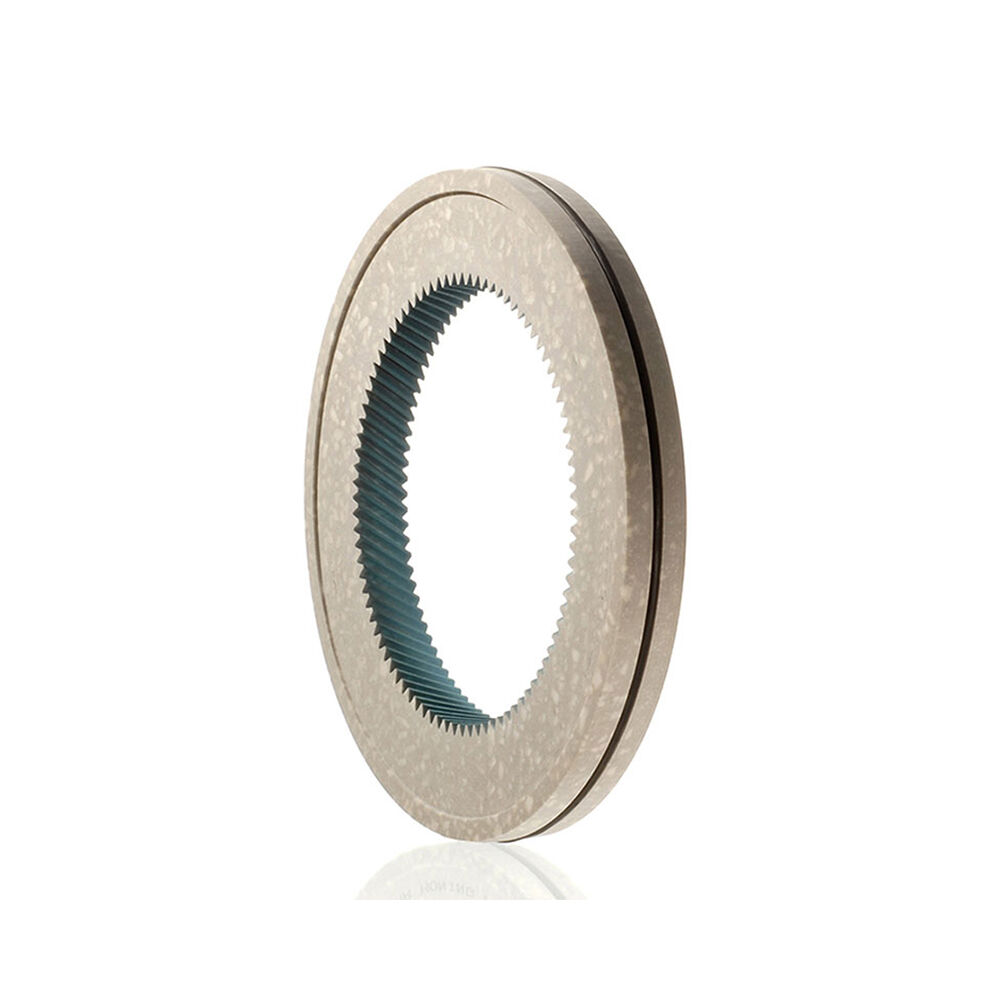

Vitrified-bond ceramic honing rings for precision hard finishing of gear tooth flanks. Ideal for post-heat treatment correction, deburring, and noise reduction in mass production of transmission gears.
MOQ: 5pcs
Features:
* Superior surface finish (Ra ≤ 0.1 μm) with friction-reducing cross-hatch texture
* High thermal stability, no workpiece burn during honing
* Self-sharpening grains, long service life, minimal dressing
* Corrects heat treatment distortions (tolerance ±0.002 mm)
* Efficient material removal (up to 0.35 mm stock)
|
|
Grinding Methods:
| Abrasive | SG |
| Bonding | Vitrified |
| Grit | Customized |
| Popular Sizes | 220-400mm |
| MOQ | 5 Pieces |
|

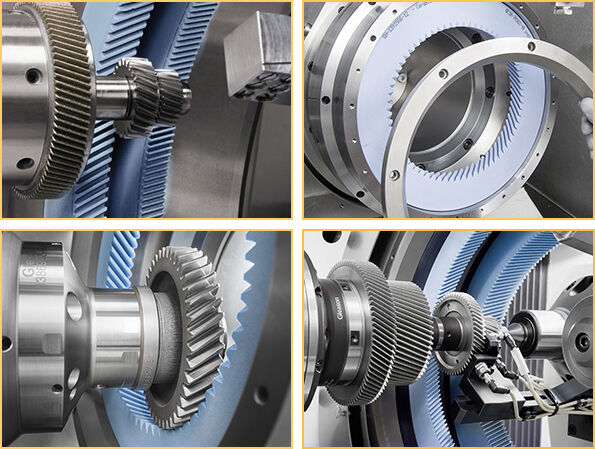

Application:

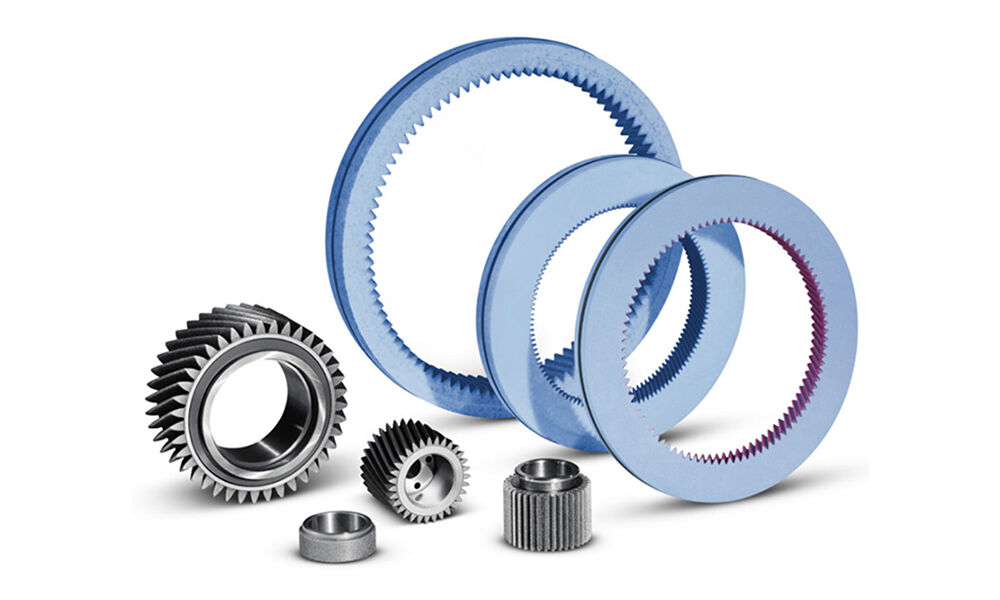

Grinding Workpiece: Spur gears, helical gears, internal gears, Gear shafts, planetary gears, transmission gears, etc.
Applicable Tool Material: Carbon steel materials, alloy steel materials, etc.

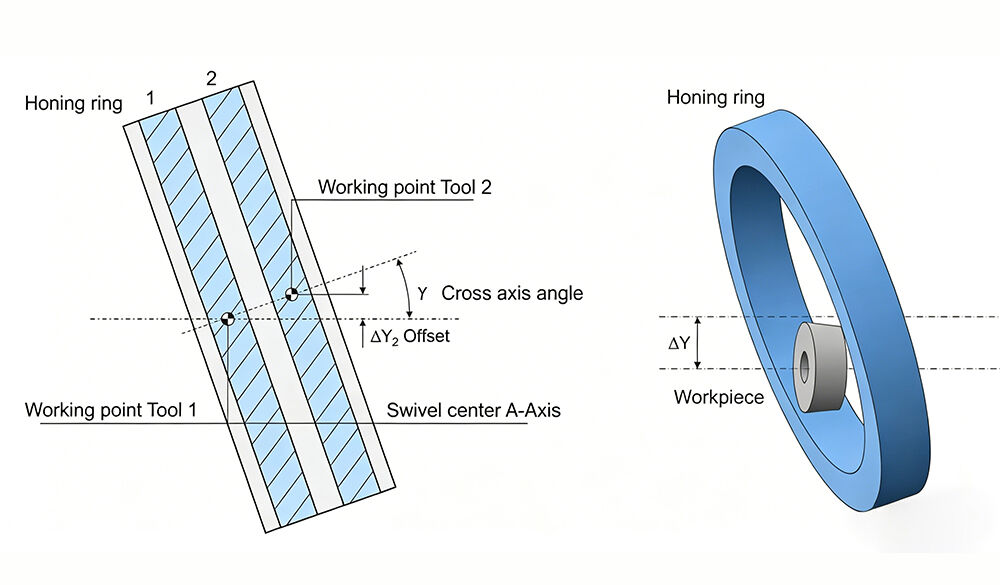

Grinding Method:CNC gear honing, Internal/external meshing honing,
Post-heat treatment precision finishing.
Applicable Grinding Machine: Kapp Niles, Liebherr, Klingelberg, Gleason, Samputensili, Mitsubishi and others.
Specifications:
| Product Type | Honing Wheels (Dish/Plate) / Honing Rings (Cylindrical) |
| Bond Type | Vitrified (Ceramic) |
| Abrasive Material | SG (Sol-Gel Alumina), high-performance ceramic alumina |
| Grit Range | #200-#1200 |
| Diameter Range | 50-300 mm |
| Thickness/Width | 10-50 mm (Customizable) |
| Applications | Gear tooth flank honing, spline finishing, powertrain components |
