Vitrified bond grinding wheels for crankshaft and camshaft grinding are designed for high-precision automotive and industrial applications. Available in White Aluminum Oxide, Brown Aluminum Oxide, Ceramic Aluminum Oxide, Pink Aluminum Oxide, and Silicon Carbide abrasives, these wheels provide excellent grinding efficiency, stable performance, and superior surface finish.
MOQ: 2pcs
Our vitrified bonded abrasive grinding wheels are specially developed for grinding crankshafts, camshafts, and other hardened steel components. With high-strength ceramic bonding technology and premium abrasive grains, the wheels ensure precise dimensional control, low vibration, and reduced thermal damage during grinding. Suitable for CNC grinding machines and high-speed production lines.
REZZ will provide you with system solutions for automotive industry such as crankshafts grinding, camshafts grinding.
Features:
* High grinding efficiency and fast material removal
* Excellent surface finish and dimensional accuracy
* Long service life with stable grinding performance
* Reduced heat generation and workpiece burn
* Multiple abrasive options for different materials and applications
|
|
Grinding Methods:
| Abrasive | Silicon carbide, Corundum |
| Bonding | Vitrified |
| Model | Parallel |
| Popular Sizes | 650-1600mm |
| MOQ | 2 Pieces |
|

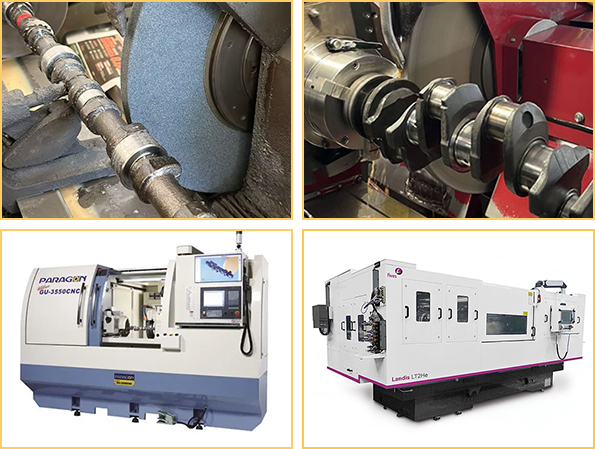

Application:
Grinding Workpiece: Crankshaft(Main Bearing, Rod Journals/Crankpin Journals, Flywheel Flange End), Camshaft(Camshaft main journals, Cam, Cams, Camshaft tube).
Applicable Tool Material: Cast iron, gery iron, forged steel and powder metallurgy.
Grinding Method: Cylindrical grinding.
Applicable Grinding Machine: JUNKER, SCHAUDT, LANDIS, TOYODA.
Specifications:
| Dimensions | ||||
| Diameter(mm) | Thickness(mm) | Hole(mm) | Abrasives | Grit |
| 650-1600 | 22-120 | 305 | A, WA, PA, SA... | 46#, 54#, 60#, 80#, 100#, 120#... |
| Any nonstandard size and grits can customized.(tell me size or drawing is enough) | ||||
