Metalworking need tools of milling, turning, boring, drilling, threading, cutting and grooving. There tools are usually made high-speed steel, tool steel, tungsten carbide, Syntheic Diamond, natural Diamond, PCD and PCBN. All these materials are very hard, above HRC30. So when grind them, you usually need Diamond or CBN grinding wheels.
REZZ provides a line of solution and services for ultra performance tools grinding on CNC machines.Our services include fluting, gashing clear edge and relief angle, OD grinding of the tungsten carbide, HSS, milling cutter, reamer and drill, etc.
Features:
* High Profile Retention Ability
* Sharp & Fast Grinding
* Excellent Surface Finishes
* Less Dressing
* High Productivity
|
|

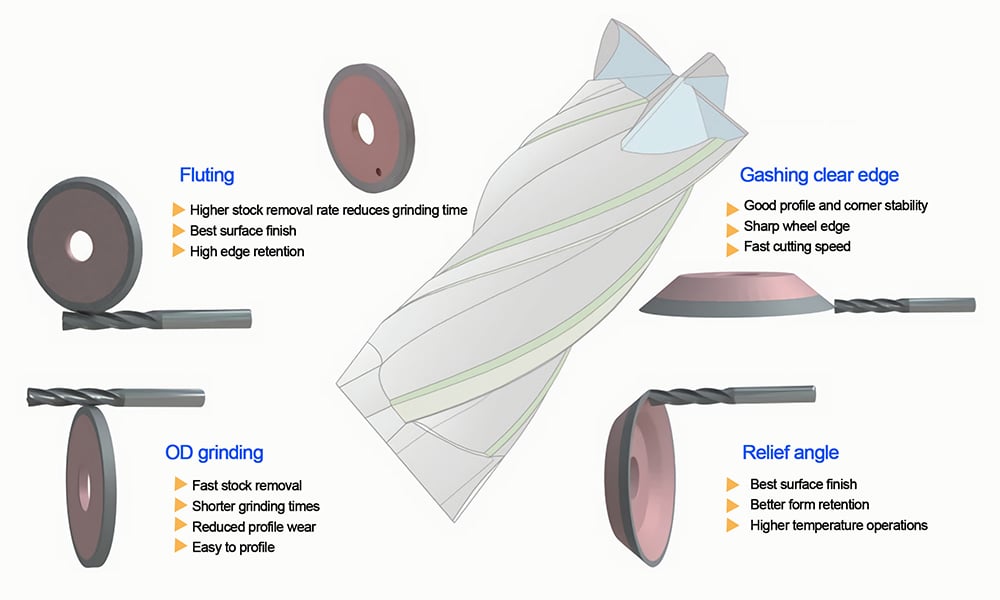

Grinding Methods:
| 1 | Cylindrical Grinding |
| 2 | Sharpening |
| 3 | Fluting |
| 4 | Gashing clear edge |
| 5 | Relief angle |
| 6 | OD Grinding |
|
Application:
Grinding Workpiece: Solid carbide, Metal cutting tools,
HSS Round tools & inserts, like endmills, drills, milling tools and other.
Applicable Tool Material: tungsten carbide HSS steel materials, etc.
Applicable Grinding Machine: CNC Cutting Tool Grinding Machines, CNC full automatic 5 Axis.
Applicable Machine Brand: ANCA, Walter, SCHUTTE, EWAG,
SCHNEEBERGER, HUFFMANN And So On.
Specifications:
| Parameters | |||
| Bond | Resin / Hybrid | Grinding Method | Sharpening Fluting Gashing Cylindrical Grinding |
| Wheel Shape | 1A1, 1V1, 11V9, 11A2, 12V9, 12A2, 1A1R | Workpiece | Metal Cutting Tools |
| Wheel Diameter | 75, 100, 125, 150, 200mm | Workpiece Materials | Tungsten Carbide/High Speed Steel |
| Abrasive Type | SD, SDC, CBN | Industry | Metalworking Metal Cutting |
| Grit | 80/100/120/150/180/220/240/280/320/400 | Suitable Grinding Machine | Tool Cutter Grinder |
| Concentration | 100, 125, 150 | Manual or CNC | Manual & CNC |
| Wet & Dry Grinding | Dry & Wet | Machine Brand | Walter, Star, Vollmer, SELLI |
