Resin Bond is the cheapest bonding. It is popular both in traditional abrasive wheels and Superabrasives (Diamond and CBN) grinding wheels. Resin bond can make the abrasive tips exposed quickly, so it can keep the grinding wheel sharp with high stock removing rate at reasonable cost. Due to these performance, it is applied in cutting, tool grinding and sharpening, knife and blades grinding, and many other hard material grinding.
Resin Bond is the commonest bonding both in traditional abrasive wheels and Superabrasives (Diamond and CBN) grinding wheels. Resin bond can make the abrasive tips exposed quickly. It is applied to be used wet or dry for most tool making, resharpening and toolroom reconditioning applications and also in grinding and polishing glasses, stones, silicon and many other non-metal materials.
| Features | Grinding Method | Industry |
| Economy - Cheapest Bond | OD Grinding | Tool Grinding & Sharpening |
| High Efficiency | Surface Grinding | Woodworking Tools |
| High Stock Removing Rates | Profile Grinding | Oil & Gas Tool |
| Good durability | ID Grinding | Knife & Blades |
| Good Shape retaining ability | Cutting | Mould and Die |
Generally, Diamond and CBN are called “Super Abrasives” or “Superhard Materials”.
Obviously, the wheels manufactured with these abravises are called Diamond or CBN grinding Wheels.
|
|

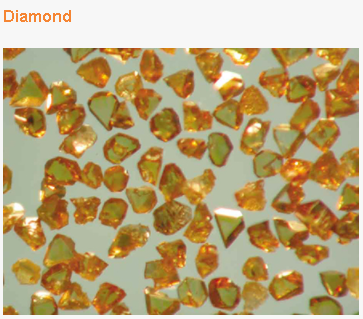

In general, diamond is used to grind non-ferrous materials |
| • Cemented carbide(Tungsten Carbide) | |
| • Glass | |
| • Ceramics | |
| • Fiberglass | |
| • Plastics | |
| • Stone | |
| • Abrasives | |
| • Electronic components and materials |

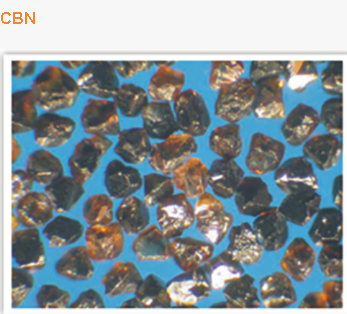

| CBN is used to grind ferrous materials. |  |
| • High-speed tool steels | |
| • Die steels | |
| • Hardened carbon steels | |
| • Alloy steels | |
| • Aerospace alloys | |
| • Hardened stainless steel | |
| • Abrasion-resistant ferrous materials |

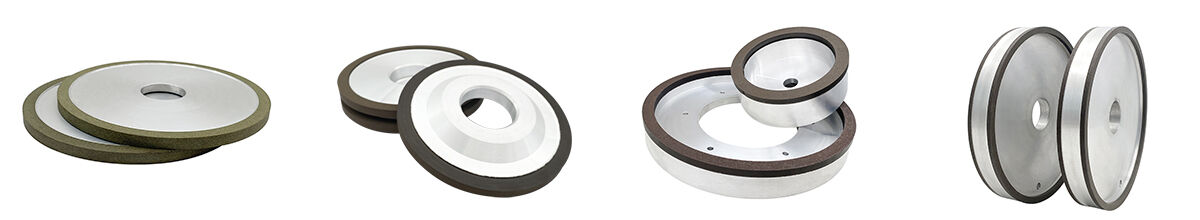

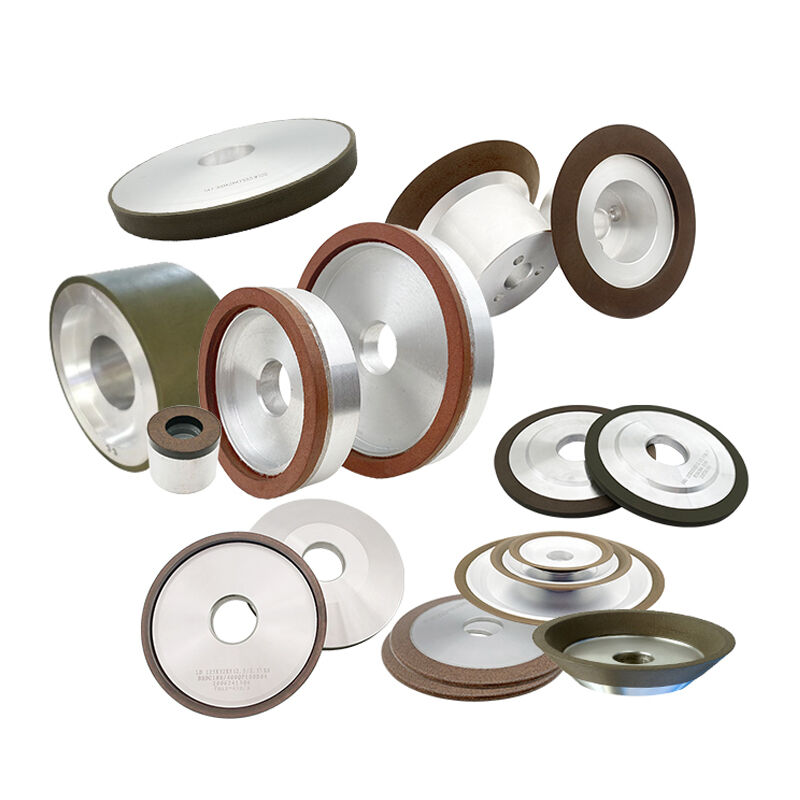

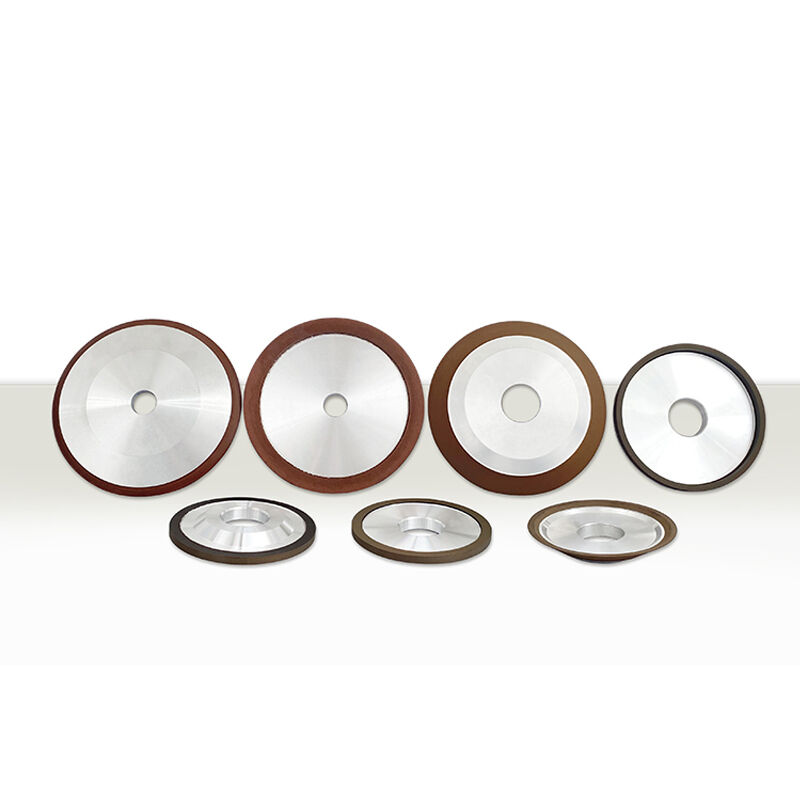

Resin bond grinding wheels are the most commonly used super abrasive product currently. our resin diamond wheel is suitable for surface grinding, OD grinding, centerless grinding, tool grinding, fine grinding ,double disc grinding and slot grinding of most precision workpieces.
Applications of resin diamond grinding wheel
Resin bond diamond grinding wheel is mainly used for machining tungsten carbide cutting tools, ceramic ,magnetic materials, silicon ,glass ,quartz and thermal spraying alloy ,etc
Advantages of resin diamond grinding wheel
* High cutting efficiency, good self-sharpening, less blocking, reducing the grinding burn occurs when the phenomenon of work
* Good flexibility will help to improve the surface roughness, mainly used for rough grinding, semi-fine grinding, polishing and other processes
* Compared to conventional silicon carbide , resin diamond wheel has good material removal rates, longer wheel life and lower grinding costs
* Resin bond diamond wheels generally remove material up to 10 times faster than metal bond wheels
Choose the product you are interested in. Specify the dimensions and technical characterisistics of the product in.
