Advanced Ceramics Industry

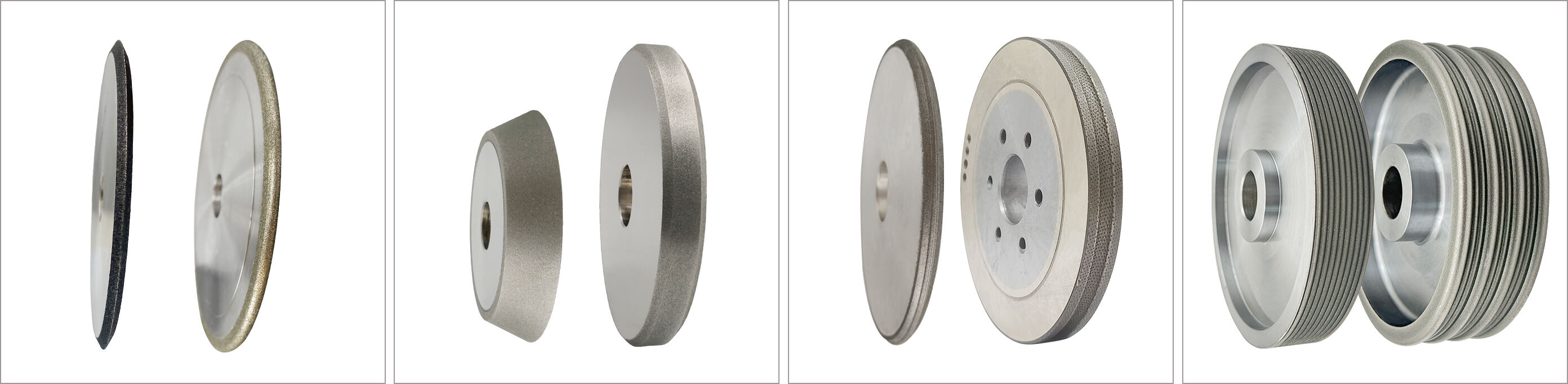

Advanced Ceramics Grinding wheels include – Cylindrical Grinding Wheels – Centerless Grinding Wheels – Internal Grinding Wheels – 1A1R Diamond Cutting Disc - Double Face Gringing Wheels - Electroplated Profile Grinding Wheels

System Solutions from REZZ for Advanced Ceramics

At REZZ, we specialize in engineering advanced ceramics grinding wheels that solve the industry’s most pressing challenges—brittle material chipping, excessive tool wear, and compromised surface integrity. Designed explicitly for hard-brittle ceramics like alumina, zirconia, silicon nitride, and silicon carbide, our wheels redefine what’s possible in precision manufacturing across aerospace, medical, semiconductor, and automotive sectors.

REZZ will provide you with system solutions for industries such as zirconia aerospace components grinding, alumina medical implants grinding, or silicon carbide semiconductor wafers grinding. REZZ wheels are custom-tailored to your material’s unique hardness and fracture toughness.

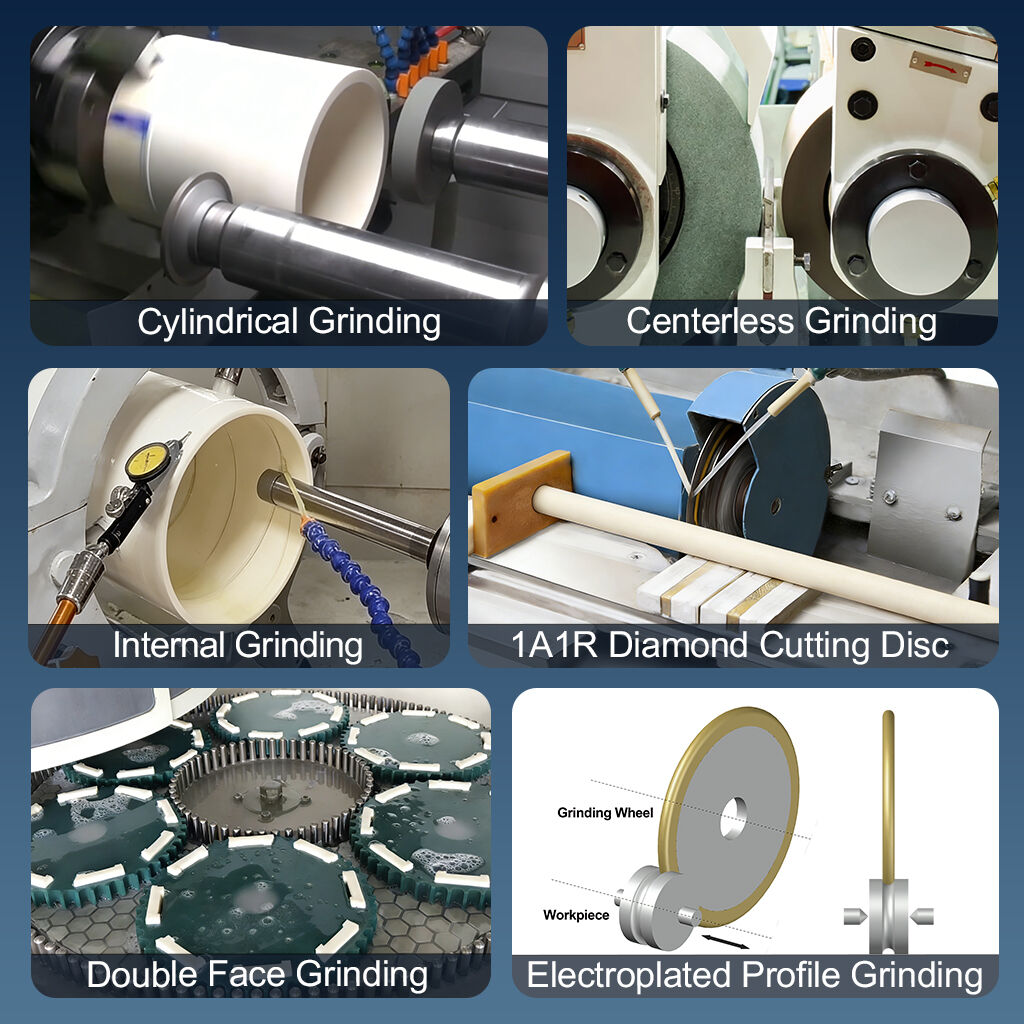

Advanced Ceramics app industry.jpg

Cylindrical Grinding Wheels

* Diamond Cylindrical Grinding Wheels for Advanced Ceramics

Cylindrical grinding wheels use diamond, cubic boron nitrid(CBN), alumina, or silicon carbide as abrasives, bonded together with resin, metal, or ceramic binders. They possess high hardness, strong wear resistance, and excellent sharpness.

Application: Mainly used for precision external cylindrical arinding of structural ceramics, zirconia, alumina ceramics, and other parts, and are widely applied in industries such as electronics, aerospace, medical devices, and bearings, for machining ceramic shafts, ceramic sleeves, and ceramic seals.

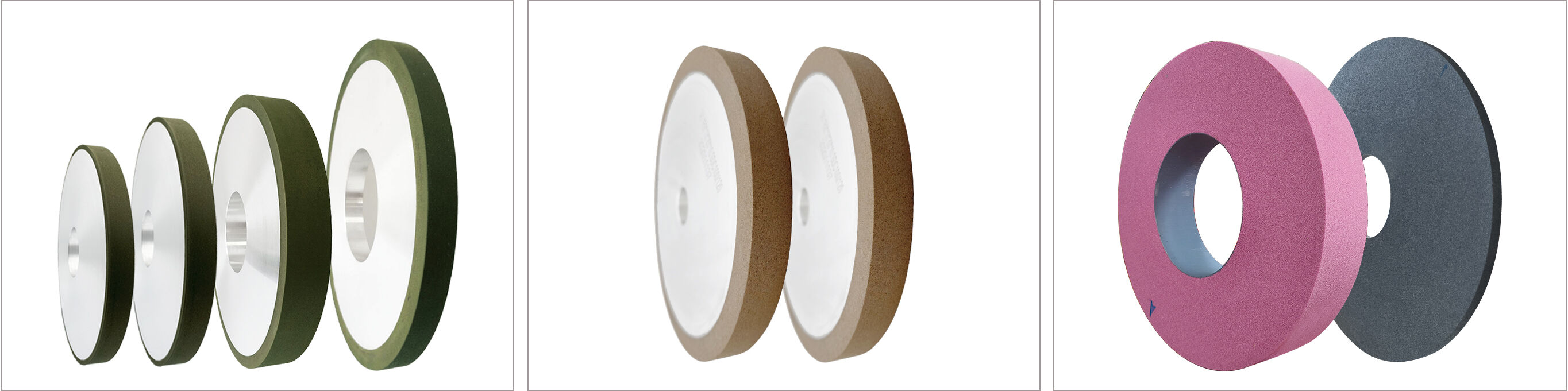

Advanced Ceramics industry product-外圆.jpg

Dimensions
Popular Sizes	D(mm)	T(mm)	H(mm)	X(mm)
8"-36"	200-900	25.4-50.8	31.75-304.8	12.7-20
Any nonstandard size and grits can customized.(tell me size or drawing is enough)

Centerless Grinding Wheels

* Diamond Centerless Grinding Wheels for Advanced Ceramics

Centerless Grinding is ideal for grinding large quantities in the shortest possible time. Easy installation and changeover guarantee flexible adjustment to market requirements.

Application: Tungsten Carbide Rods, Steel Rods, Ceramic Rods.

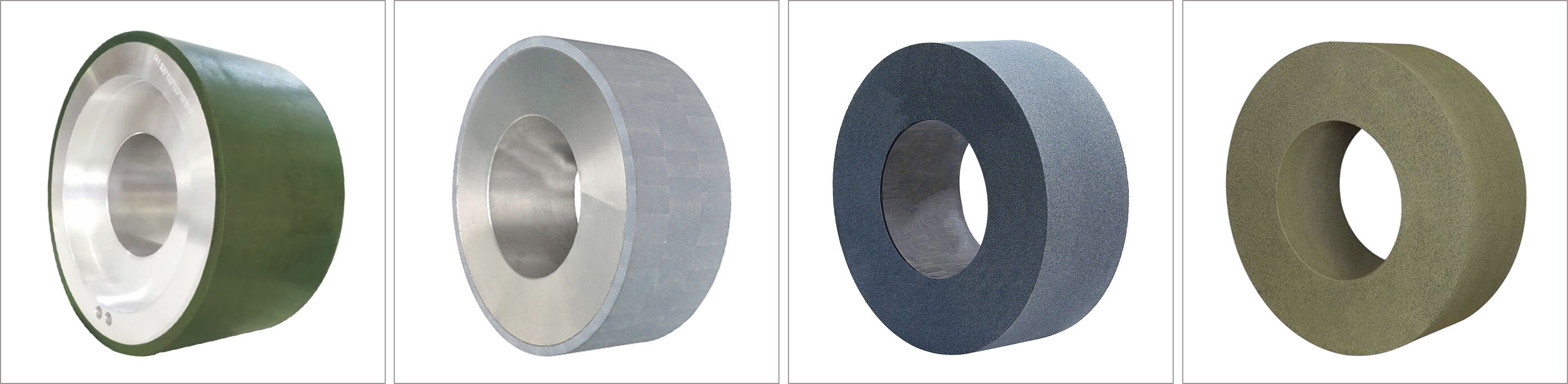

Advanced Ceramics industry product-无芯磨.jpg

Dimensions
Model	D(mm)	T(mm)	H(mm)	X(mm)
1A1 6A1 9A1	200	50	75	10
	250	100	75	10
	300	100, 150	127	10
	350	125, 150	127	10
	400	150, 300	203	10
	450	150, 200, 300	228.5	10
	500	150, 200	305	10
Any nonstandard size and grits can customized.(tell me size or drawing is enough)

ID(Internal) Grinding Wheels

* Diamond Internal Grinding Wheels for Advanced Ceramics

Centerless Grinding is ideal for grinding large quantities in the shortest possible time. Easy installation and changeover guarantee flexible adjustment to market requirements.

Application: Tungsten Carbide Rods, Steel Rods, Ceramic Rods.

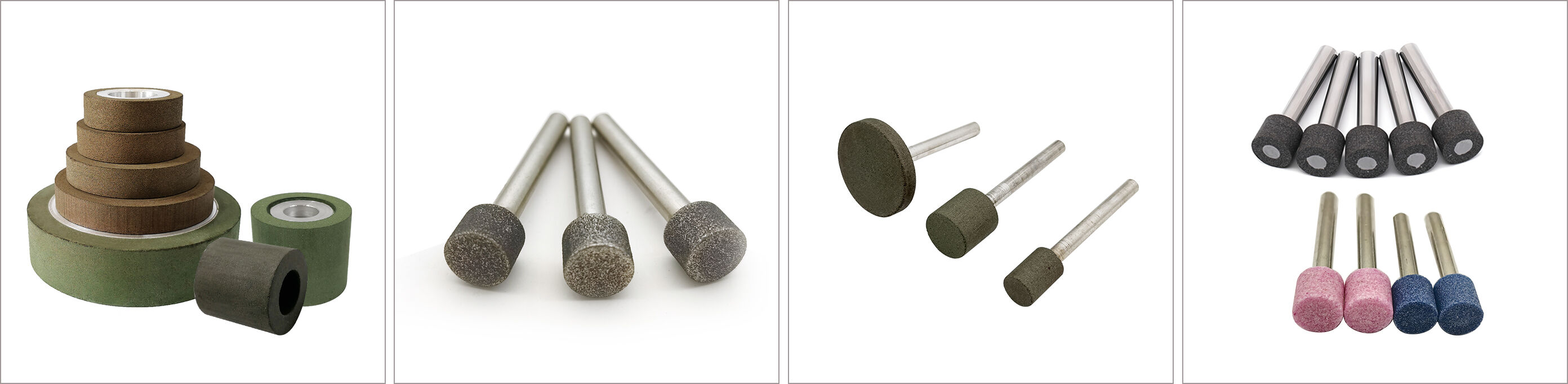

oil gas industry internal grinding-4.jpg

Dimensions
Grinding Method	Model	D(mm)	T(mm)
Internal grinding	1A1W, 1A1, 1A8	50.8-200	25.4
Any nonstandard size and grits can customized.(tell me size or drawing is enough)

1A1R Diamond Cutting Disc

* 1A1R Diamond Cutting Disc for Cutting Advanced Ceramics

REZZ developed Super thin 1A1R Diamond and CBN Wheels, which can be used for Cut-off, Cutting, Grooving, Slotting, Dicing, etc. Resin bond and metal bond are available for different applications.

Cutting Material: Tungsten carbide, ceramic, glass, stone, Gem and gemstones, steel saphire, silicon carbide, silicon ingot, semi-condutor, etc.

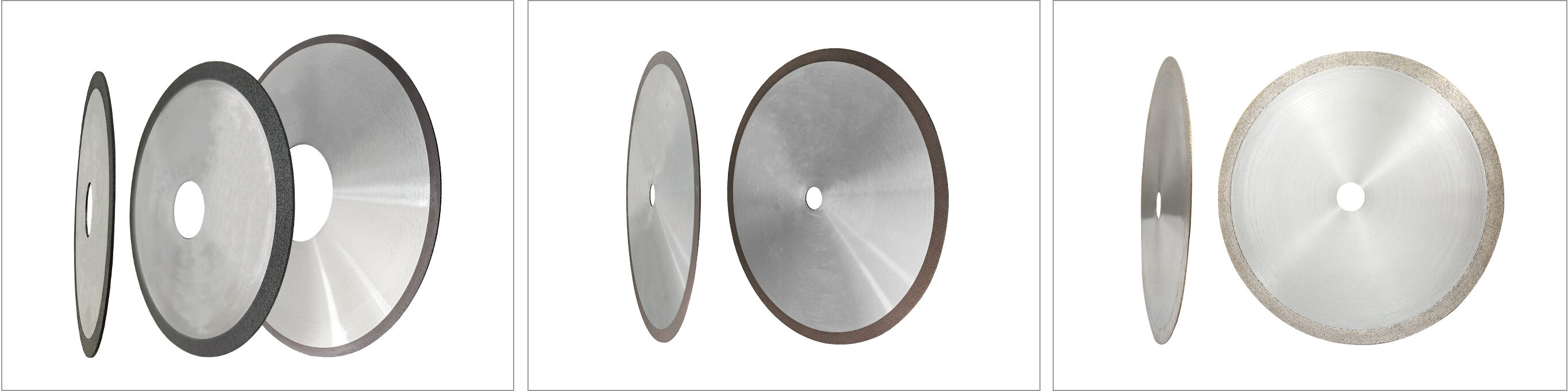

Advanced Ceramics industry diamond cutting.jpg

Dimensions
Specification	D(mm)	T(mm)	E(mm)	H(mm)	X(mm)	Grit
1A1R 100x1.0x31.75x10mm	2-20	1.0	0.8	31.75	10	D151, D181, D126, D107, D91, D76, D64, D46 or custonmized
1A1R 125x1.0x31.75x10mm	2-25	1.0	0.8	31.75	10
1A1R 150x1.0x31.75x10mm	3-15	1.0	0.8	31.75	10
1A1R 150x0.8x31.75x10mm	3-30	0.8	0.6	31.75	10
1A1R 100x0.5x31.75x10mm	3-30	0.5	0.8	31.75	10
1A1R 200x1.0x31.75x10mm	3-30	1.0	0.8	31.75	10
1A1R 300x1.5x31.75x10mm	3-30	1.5	1.3	31.75	10
1A1R 400x2.0x31.75x10mm	3-30	2.0	1.8	31.75	10
Any nonstandard size and grits can customized.(tell me size or drawing is enough)

Double Face Grinding Wheels

* Double Face Grinding Wheel for Advanced Ceramics

REZZ offers a full line of diamond and CBN double disc grinding wheels and dressing stones for fine grinding machines and single and double side lapping systems.

Application: grinding the surface, suitable for advanced ceramics, monocrystaline silicon, etc.

Applicable Machine Brand: Stahli, Wendt WBM, Viotoo, AMT, Peter Wolters, Diskus, Agathon T&B, Fujisanki, Supfina, Melchiorre, Koyo, Lam Plan, Speedfam, Kemet, Gardner, etc.

Advanced Ceramics industry double face grinding.jpg

Dimensions
Model	D(mm)	T(mm)	H(mm)	X(mm)
1A1 6A1 9A1	200	50	75	10
	250	100	75	10
	300	100, 150	127	10
	350	125, 150	127	10
	400	150, 300	203	10
	450	150, 200, 300	228.5	10
	500	150, 200	305	10
Any nonstandard size and grits can customized.(tell me size or drawing is enough)
